Mud-In 1 in. Channel

1-inch-wide profile for recessing directly into drywall in walls or ceilings.

Lens Options:

Frosted: Diffused lens for everyday installations


Features & Benefits
  • Bundles include extrusion, lens, end-caps, and mounting
  • In-house and field cuttable channels to work with individual specifications
  • Provides additional defense from dust and debris, protecting the LED investment
  • Wide flange design for easy drywall mud application
Specification Sheet FARO™ Mud-In 1in.
• 5 Year Limited Warranty
• Closet rated

SKU Builder


Model
Series
lens options
Length

VIP

CPCHB

MUD1

OPT (Opal Lens)


96 (96 in. Aluminum)


Mounting Guide

Please refer to the Installation Guide for detailed instructions.

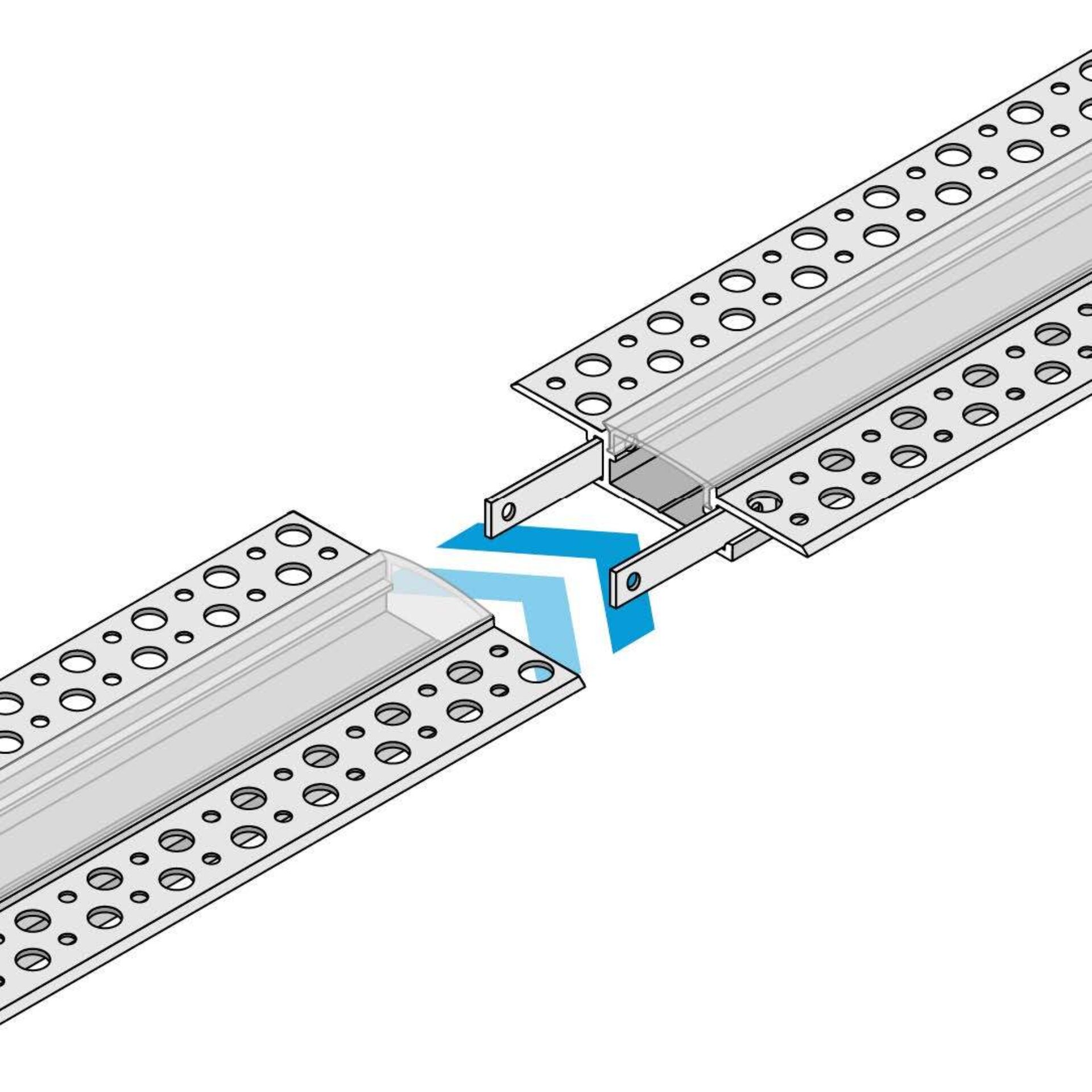

Mounting Extensions

Channels may be connected end-to-end.

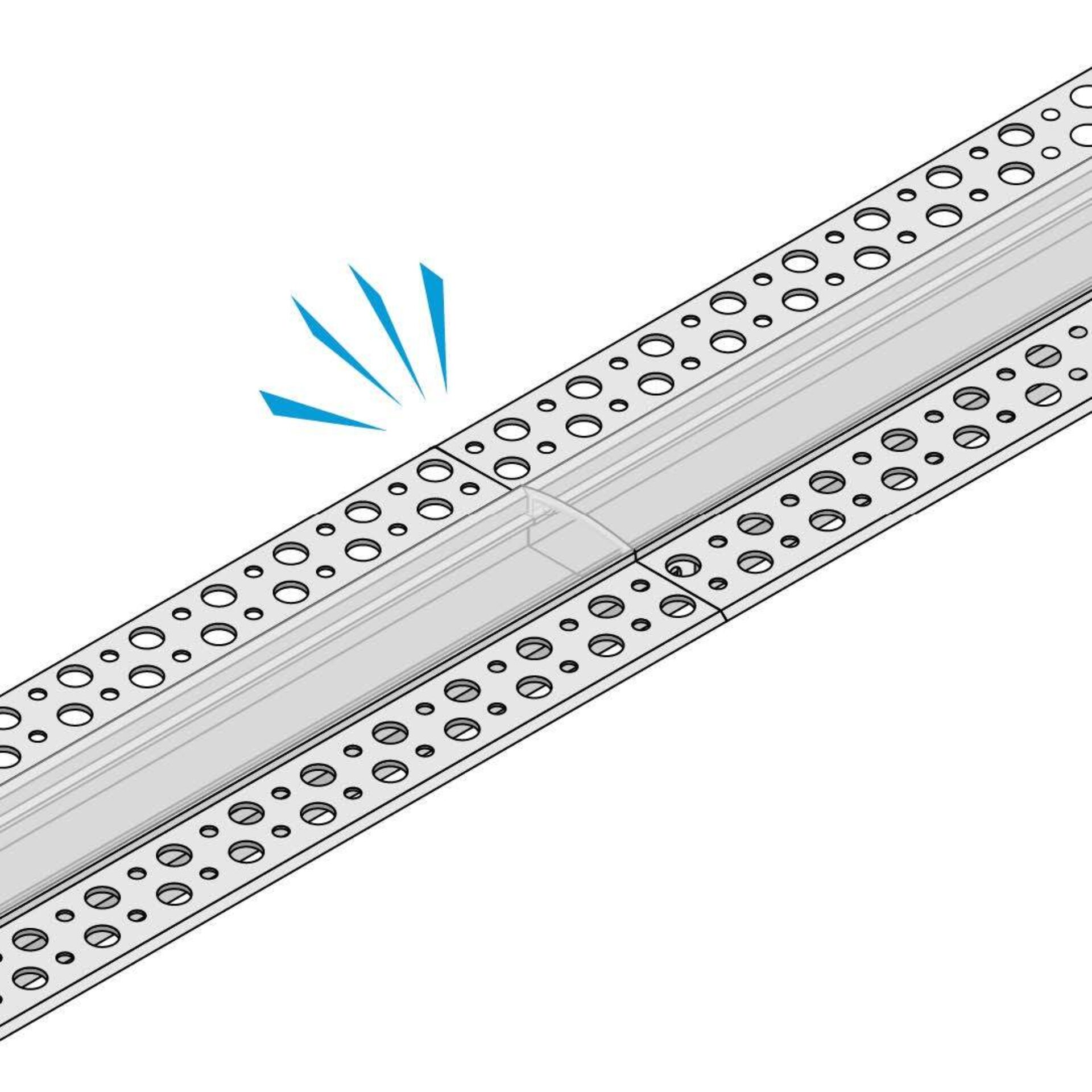

Mounting Connection

Channels connect with minimal seam.

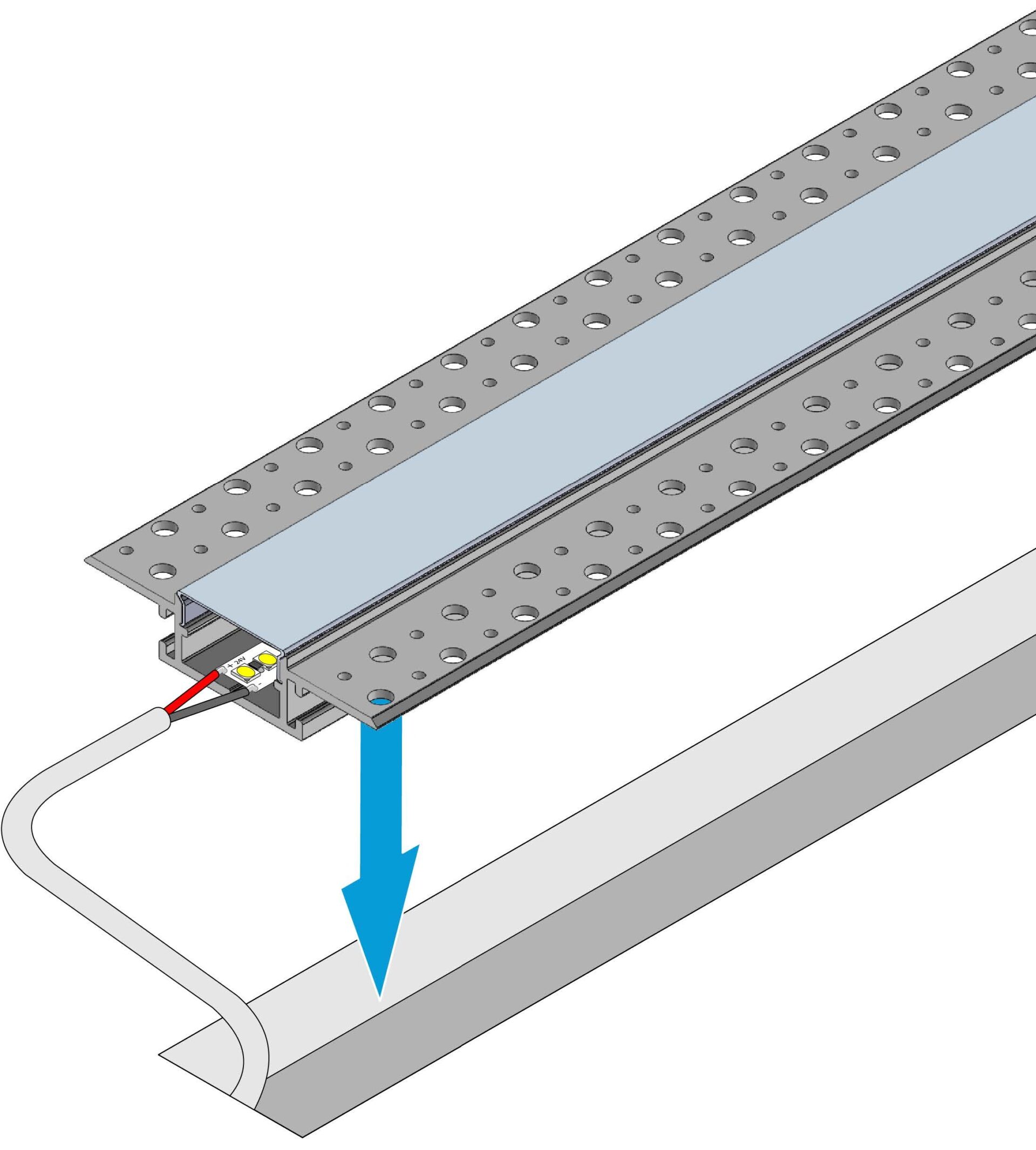

Installation

In-wall rated wire can be run behind the drywall.
