LINAIRE® Flex Linear Light System

Flexible, versatile, and ready when you need it. LINAIRE® Flex is a complete line of diffused, flexible, all-location linear light with flawless performance.

Save installation time with factory-assembled lengths, ready to install. Or, use our robust, waterproof field connectors to build your lengths on the fly with our Top Bend and Side Bend models.

All options feature 90+ CRI with high R-values, IP67 rating for wet locations, and UV stabilization for outdoor use. UL2108 listed.

Navigate to:
Static White
RGBW


LINAIRE® Flex Overview



 Lumens/ftWatts/ftMax Run (ft.)Profile Size (in.)Cut PointsWire EntryFactory AssemblyField Assembly
3D Bend150, 3753.2, 4.5732.80.79x0.79Free CutStraight, Side, Bottom✓ⓘ
Top Bend115, 3302.6, 4.5732.80.63x0.63Free CutStraight, Side, Bottom✓✓
Side Bend75, 1902.6, 4.5732.80.45x0.79Free CutStraight, Side, Bottom✓✓
Mini 3D Bend751.532.80.39x0.39Free CutStraight, Side, Bottom✓ⓘ
Micro Side Bend701.916.40.15x0.311 in.Straight✓ⓘ
Tube 3602503.716.40.71x0.71Free CutStraight✕ⓘ
3D Bend RGBW1034.516.40.79x0.792.46 in.Straight, Side, Bottom✓ⓘ
Top Bend RGBW1224.516.40.63x0.631.96 in.Straight, Side, Bottom✓ⓘ
Side Bend RGBW754.516.40.45x0.791.96 in.Straight, Side, Bottom✓ⓘ

All fixtures can be fully factory assembled to order.

ⓘ  Indicates that the fixture can be trimmed and capped, but that leads must be attached in the factory. If trimmed and capped in field IP rating drops from IP67 to IP65.
✕ Assembly not yet available.



All fixtures can be fully factory assembled to order.

3D Bend
Lumens/ft150, 375
Watts/ft3.2, 4.57
Max Run (ft.)32.8
Profile Size (in.)0.79 x 0.79
Wire EntryStraight, Side, Bottom
Factory Assembly✓
Field Assemblyⓘ

ⓘ  Indicates that the fixture can be trimmed and capped, but that leads must be attached in the factory. If trimmed and capped in field IP rating drops from IP67 to IP65.



Top Bend
Lumens/ft115, 330
Watts/ft2.6, 4.57
Max Run (ft.)32.8
Profile Size (in.)0.63 x 0.63
Wire EntryStraight, Side, Bottom
Factory Assembly✓
Field Assembly✓



Side Bend
Lumens/ft75, 190
Watts/ft2.6, 4.57
Max Run (ft.)32.8
Profile Size (in.)0.45 x 0.79
Wire EntryStraight, Side, Bottom
Factory Assembly✓
Field Assembly✓



Mini 3D Bend
Lumens/ft75
Watts/ft1.5
Max Run (ft.)32.8
Profile Size (in.)0.39 x 0.39
Wire EntryStraight, Side, Bottom
Factory Assembly✓
Field Assemblyⓘ

ⓘ  Indicates that the fixture can be trimmed and capped, but that leads must be attached in the factory. If trimmed and capped in field IP rating drops from IP67 to IP65.



Micro Side Bend
Lumens/ft70
Watts/ft1.9
Max Run (ft.)16.4
Profile Size (in.)0.15 x 0.31
Wire EntryStraight
Factory Assembly✓
Field Assemblyⓘ

ⓘ  Indicates that the fixture can be trimmed and capped, but that leads must be attached in the factory. If trimmed and capped in field IP rating drops from IP67 to IP65.



Tube 360
Lumens/ft250
Watts/ft3.7
Max Run (ft.)16.4
Profile Size (in.)0.71 x 0.71
Wire EntryStraight
Factory Assembly✕
Field Assemblyⓘ

ⓘ  Indicates that the fixture can be trimmed and capped, but that leads must be attached in the factory. If trimmed and capped in field IP rating drops from IP67 to IP65.
✕ Assembly not yet available.

LINAIRE® Flex: Static White

Product
Description
Features & Benefits
Products

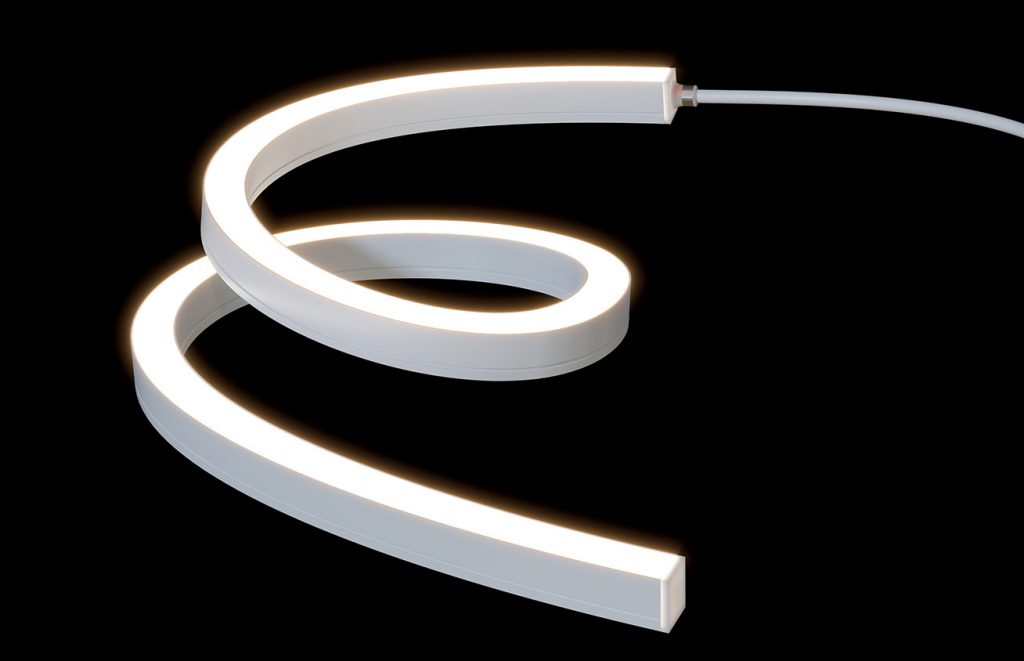

LINAIRE® Flex 3D Bend
Spec Sheet Product Page
Flexible architectural light that bends in all directions to fit any space.



Bendable in both top and side directions. Light curved details, including those that bend in multiple dimensions such as spiral staircase handrails and other complex details.



  • 5 Year Limited Warranty
  • Bends in both top and side directions
  • Emits light from top surface
  • High and low output levels, and maximum run length up to 32.8 ft.
  • Factory assembly (IP67)

  • Field cuttable, free-cut termination (IP65)

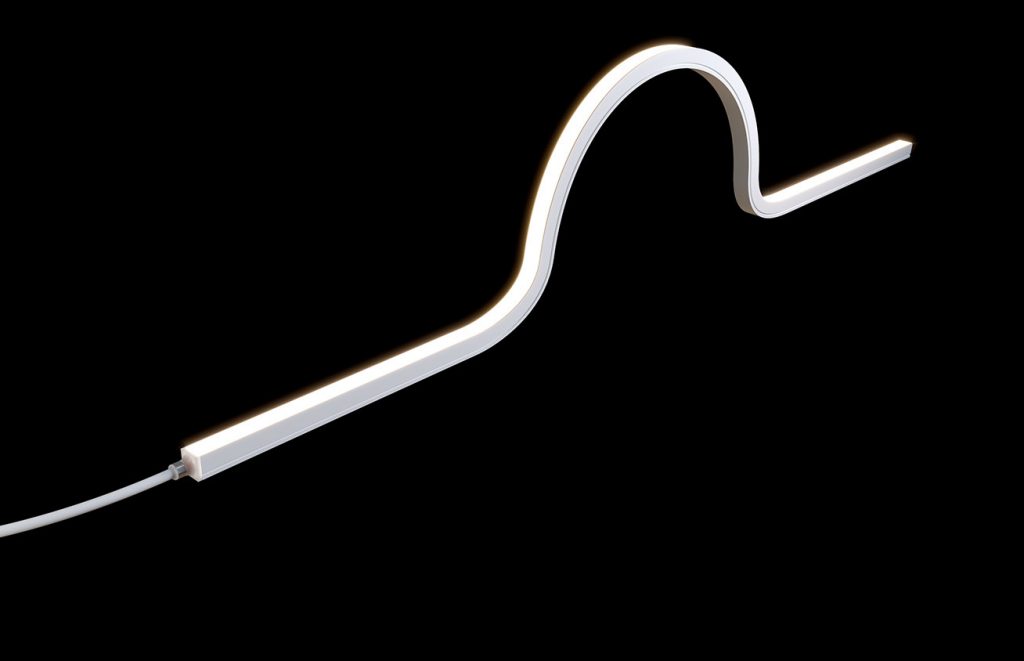

LINAIRE® Flex Top Bend Linear Light
Spec Sheet Product Page

Top-bending flexible linear light.



Top-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.


  • 5 Year Limited Warranty
  • Top-bending fixture with no visible dots
  • Emits light from top surface
  • High and low output levels, and maximum run length up to 32.8 ft.
  • Factory assembly (IP67)

  • Field cuttable, free-cut assembly (IP65)

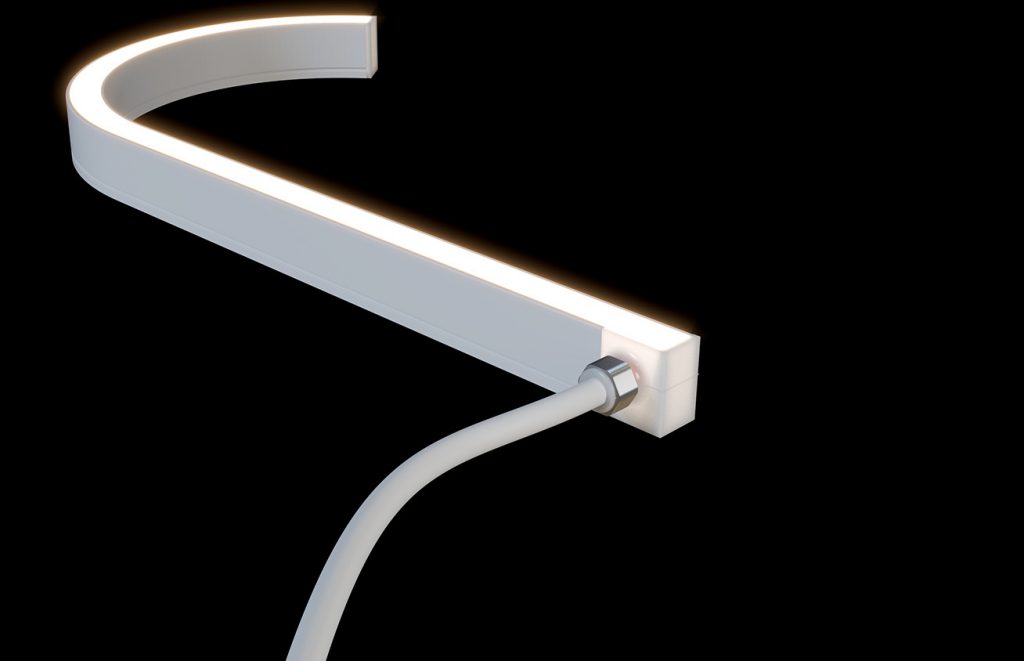

LINAIRE® Flex Side Bend Linear Light
Spec Sheet Product Page

Side-bending flexible architectural light.



Side-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.


  • 5 Year Limited Warranty
  • Side bending
  • Emits light from top surface
  • High and low output levels, and maximum run length up to 32.8 ft.
  • Factory assembly (IP67)
  • Field cuttable, free-cut assembly (IP65)

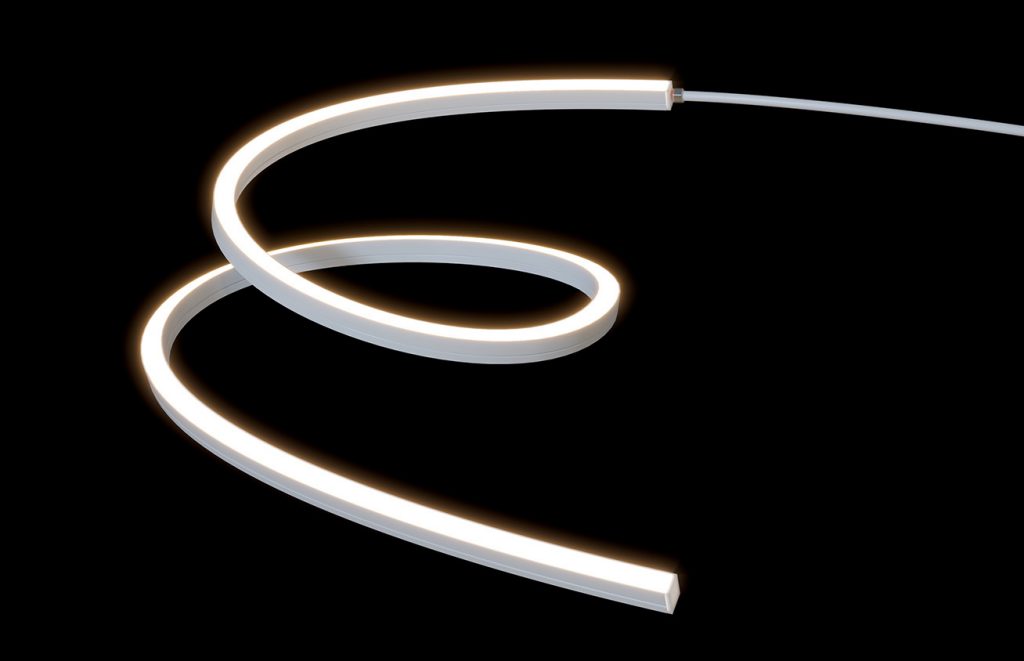

LINAIRE® Flex Mini 3D Bend
Spec Sheet Product Page

Small, flexible architectural light that bends in all directions to fit any space.



Small, flexible architectural light that bends in both top and side directions to fit any space. Light curved details, including those that bend in multiple dimensions.


  • 5 Year Limited Warranty
  • Bends in both top and side directions
  • Emits light from top surface
  • 1.5 watts per foot for lumen outputs up to 75 Lm/ft.
  • Maximum run length up to 32.8 ft.
  • Factory assembly (IP67)
  • Field cuttable, free-cut termination (IP65)

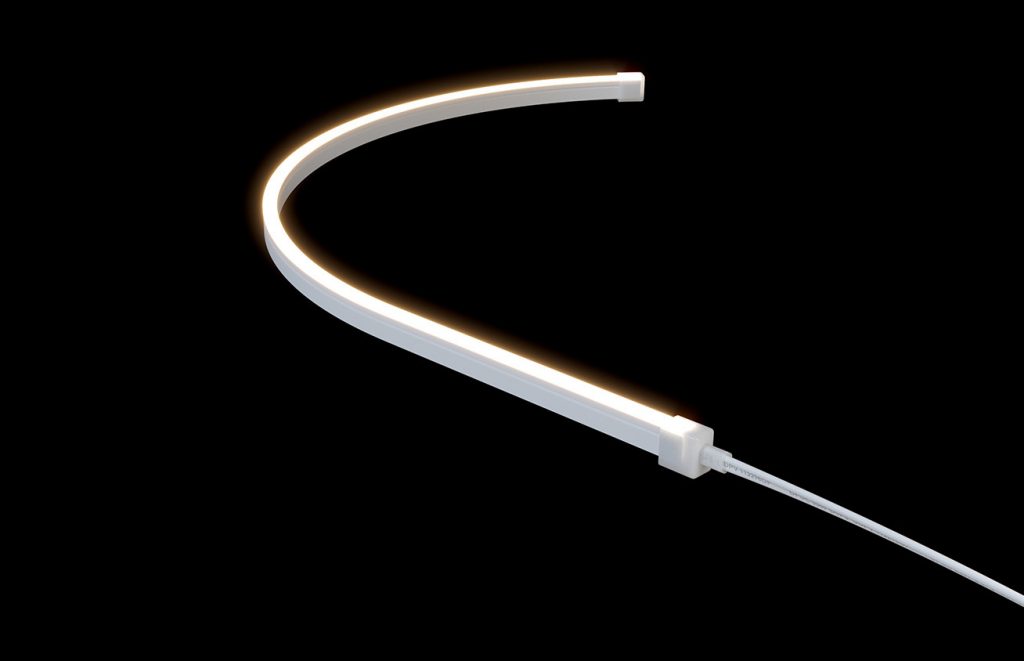

LINAIRE® Flex Micro Side Bend
Spec Sheet Product Page

Diminutive side-bending architectural light for accents, millwork, and tight spaces.



Bring linear light to very tight spaces and create accents almost anywhere, including in wet locations.


  • 5 Year Limited Warranty
  • Side bending
  • Emits light from top surface
  • 1.9 watts per foot for lumen outputs up to 70 Lm/ft.
  • Maximum run length up to 16.4 ft.
  • Factory assembly (IP65)

  • Field adjustable termination (IP65)

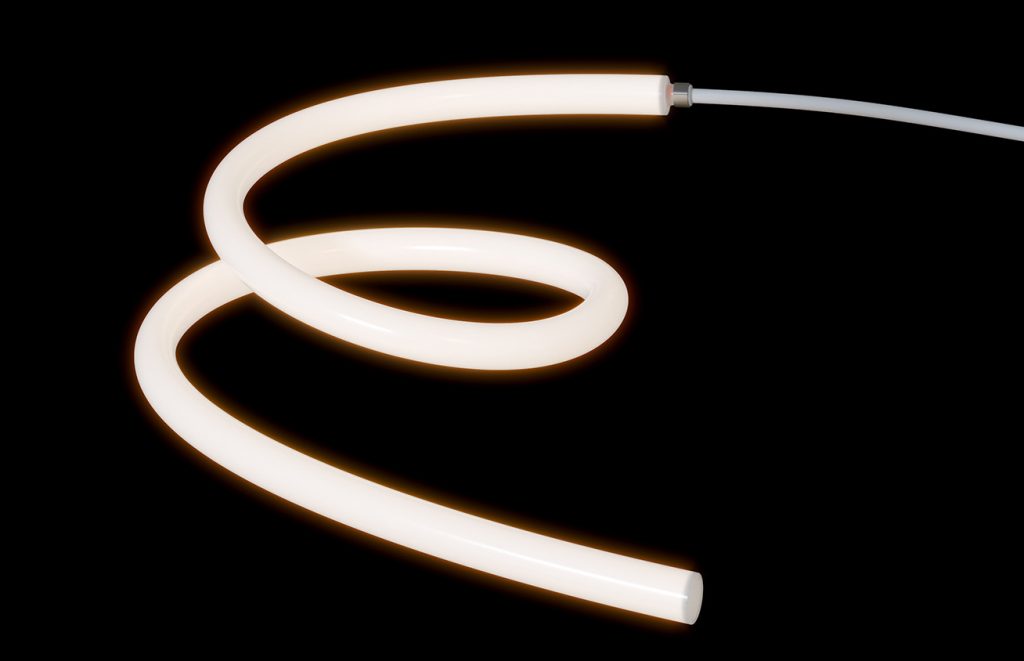

LINAIRE® Flex Tube 360
Spec Sheet Product Page

Round, flexible architectural light that bends and emits light in all directions.



Tube-like dotless linear light that bends in all directions and glows brightly in all directions. Create striking direct and indirect lighting effects, including in wet locations.


  • 5 Year Limited Warranty
  • Bends in all directions
  • Emits light in all directions
  • 3.7 watts per foot for lumen outputs up to 250 Lm/ft.
  • Maximum run length up to 16.4 ft.
  • Factory assembly (IP67)
  • Field adjustable termination (IP65)

LINAIRE® Flex: RGBW

Product
Description
Features & Benefits
Products

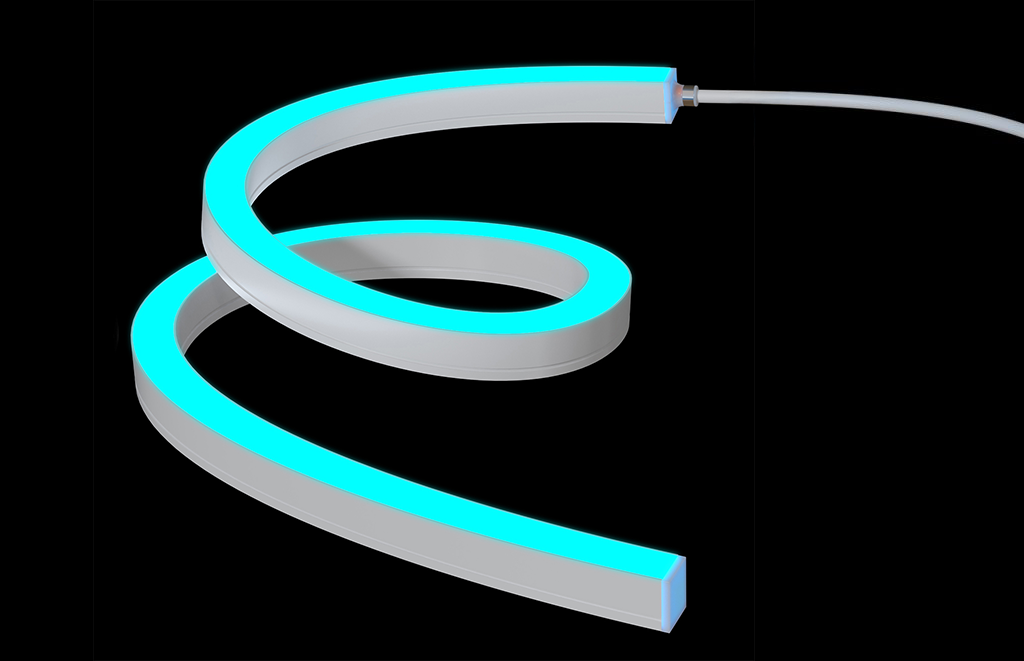

LINAIRE® Flex 3D Bend RGBW
Spec Sheet Product Page
Flexible RGBW linear light that bends in all directions to fit any space.



Water resistant and fully diffused for a dotless look.

  • 5 Year Limited Warranty
  • Bends in both directions (top and side) for maximum versatility
  • Flexible, durable fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • Full color RGBW
  • Factory Assembly (IP67)

  • Field Adjustable Termination (IP65)

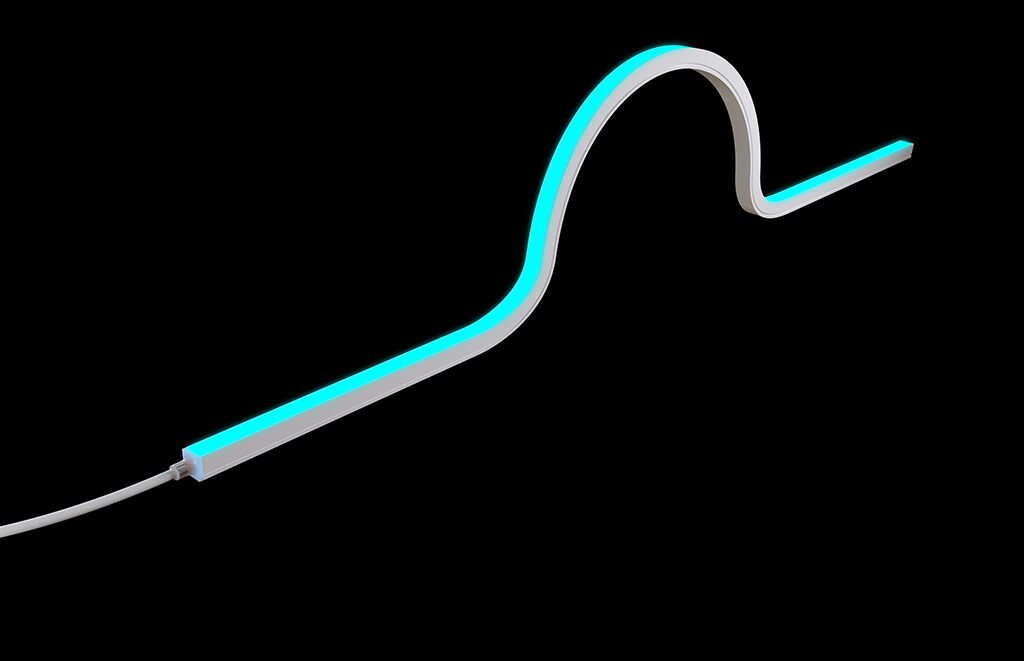

LINAIRE® Flex Top Bend RGBW
Spec Sheet Product Page

Top-bending RGBW architectural light with vibrant, full-spectrum output.



Water resistant and fully diffused for a dotless look.


  • 5 Year Limited Warranty
  • Top-bending architectural profile
  • Flexible, durable fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • 90+ CRI
  • Factory Assembly (IP67)

  • Field Adjustable Termination (IP65)

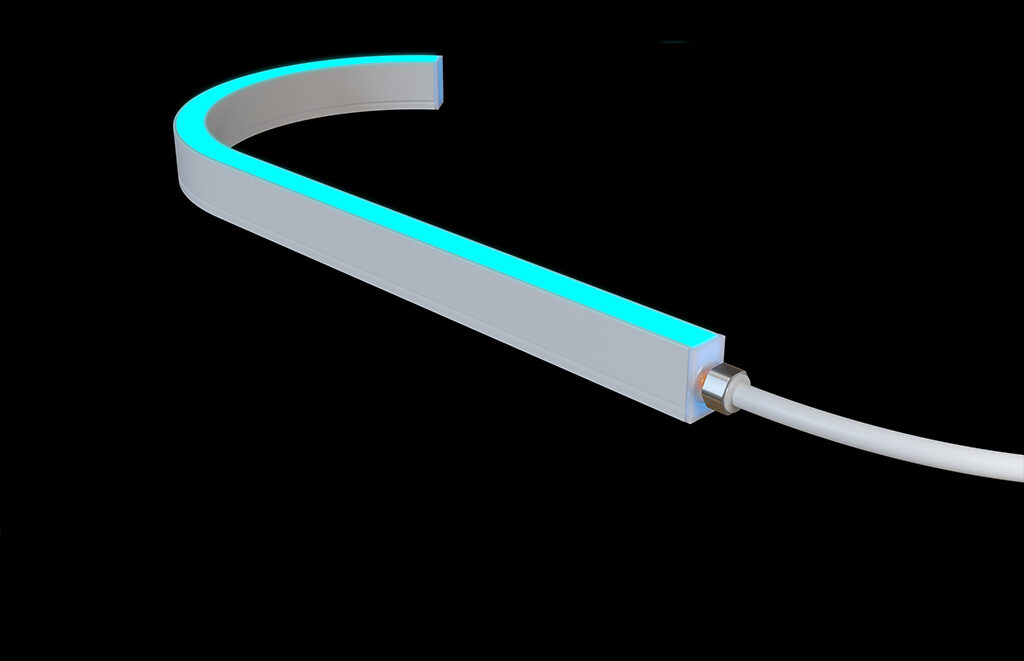

LINAIRE® Flex Side Bend
Spec Sheet Product Page

Side-bending RGBW architectural light with vibrant, full-spectrum output.



Water resistant and fully diffused for a dotless look.


  • 5 Year Limited Warranty
  • Side-bending for curved architectural details
  • Flexible, durable fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • Full color RGBW
  • 90+ CRI
  • Factory Assembly (IP67)

  • Field Adjustable Termination (IP65)
