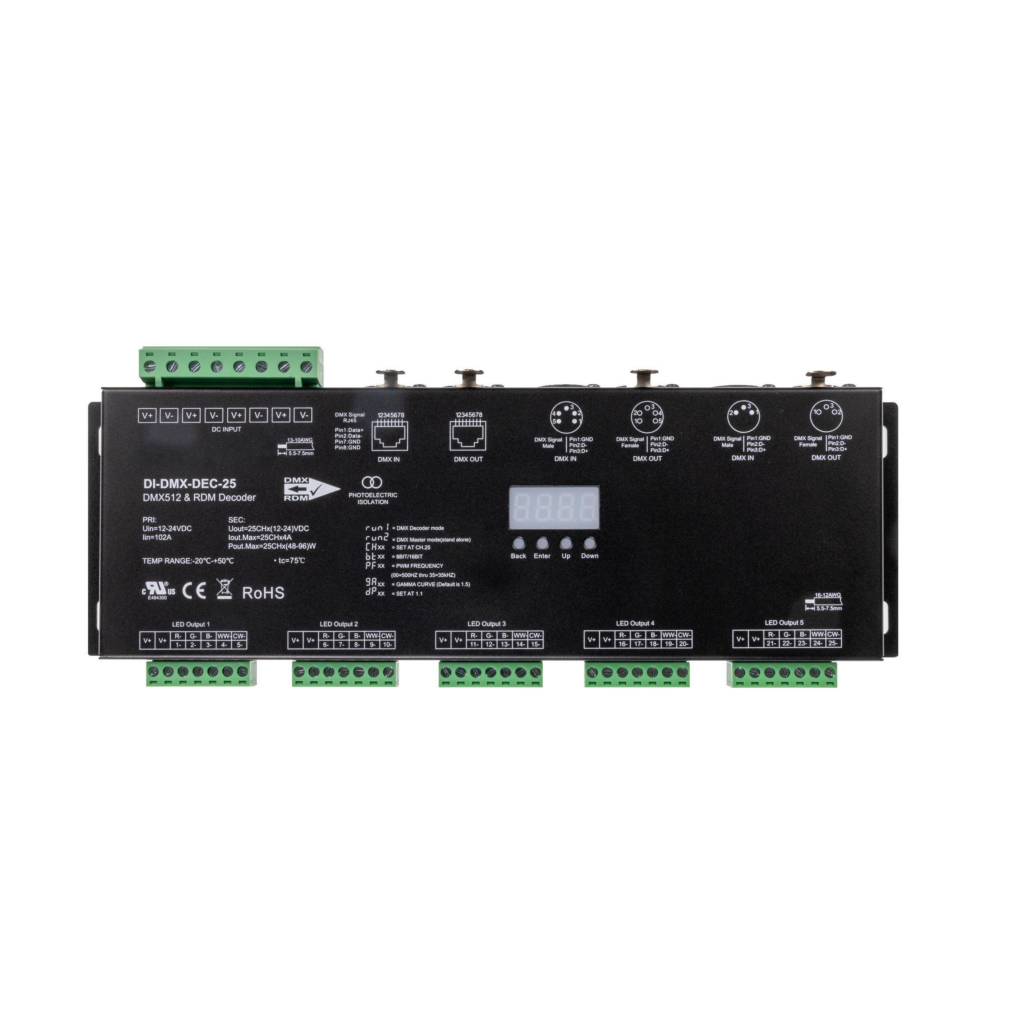

DI-DMX-DEC-25

Control low-voltage LED lighting with flicker-free performance and compatible with 4-6 wire light engines; it can be used as a standalone/master controller or companion decoder. The 5-channel decoder featuring a digital display for fast and easy connections, has drive capacity up to 480W/960W per receiver at 12V/24V respectively.

• 25 Channels x 4A
• PWM frequency range 500-35,000 Hz
• Standalone feature
• Simple DMX address adjustments
• Compatible with 12 to 24 VDC LED lighting

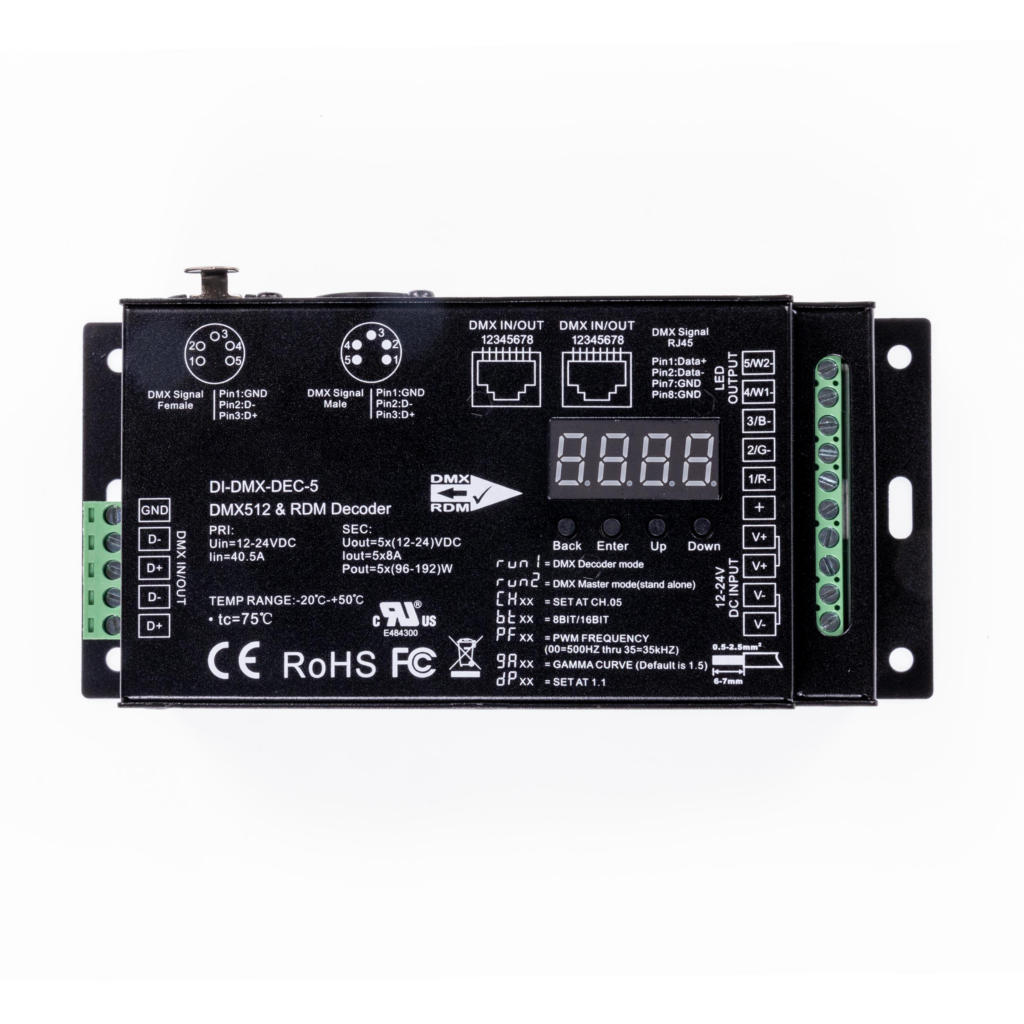

DI-DMX-DEC-5

Control low-voltage LED lighting with flicker-free performance and compatible with 4-6 wire light engines; it can be used as a standalone/master controller or companion decoder. The 5-channel decoder, featuring a digital display for fast and easy connections, has a drive capacity of up to 480W per receiver at 24V.


• 5 Channel x 8A
• PWM frequency range 500-30,000 Hz
• Standalone feature
• Simple DMX address adjustments
• Compatible with 12 to 24 VDC LED lighting

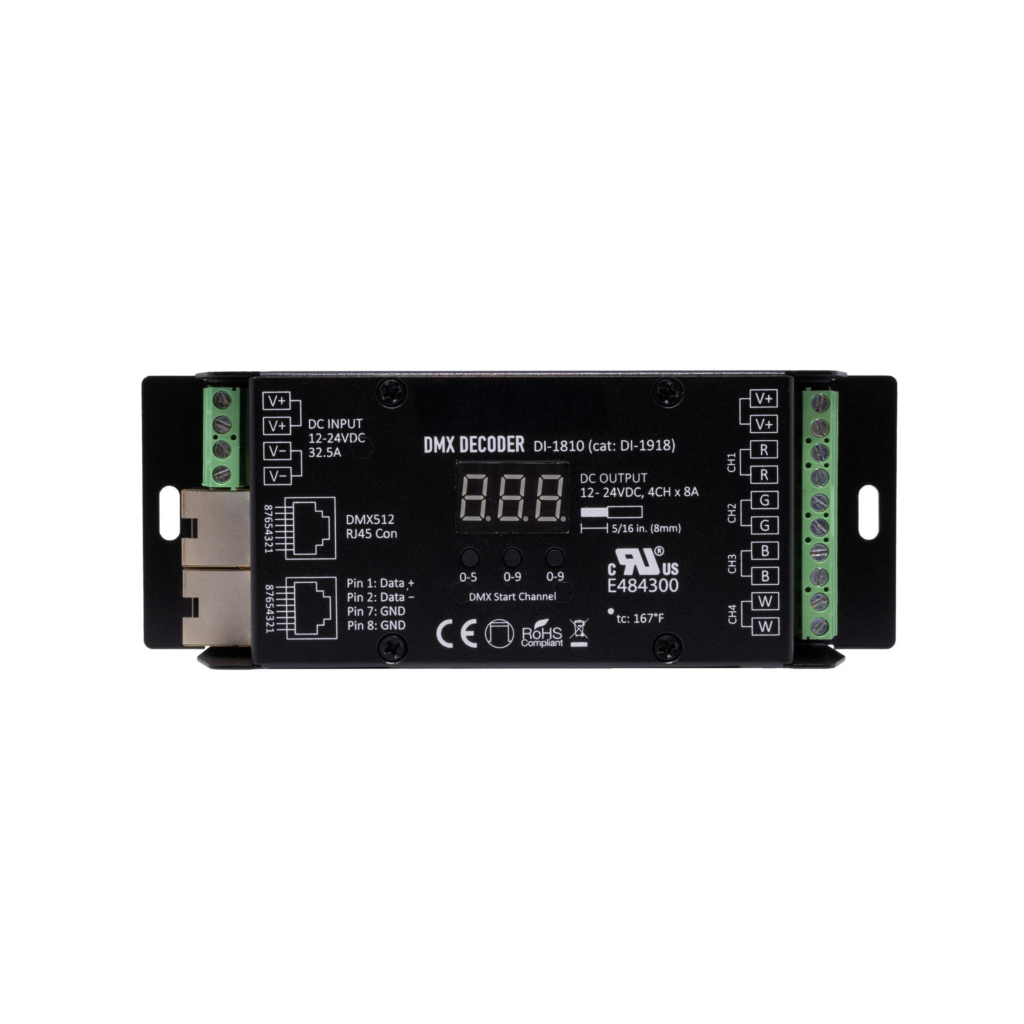

DI-1810

Translates a 4 channel DMX signal into the PWM control signal used by RGB LED lights.

• 4 Channel x 4A
• PWM frequency range 200 - 1,500 Hz
• Standalone feature
• Compatible with 12 to 24 VDC LED lighting

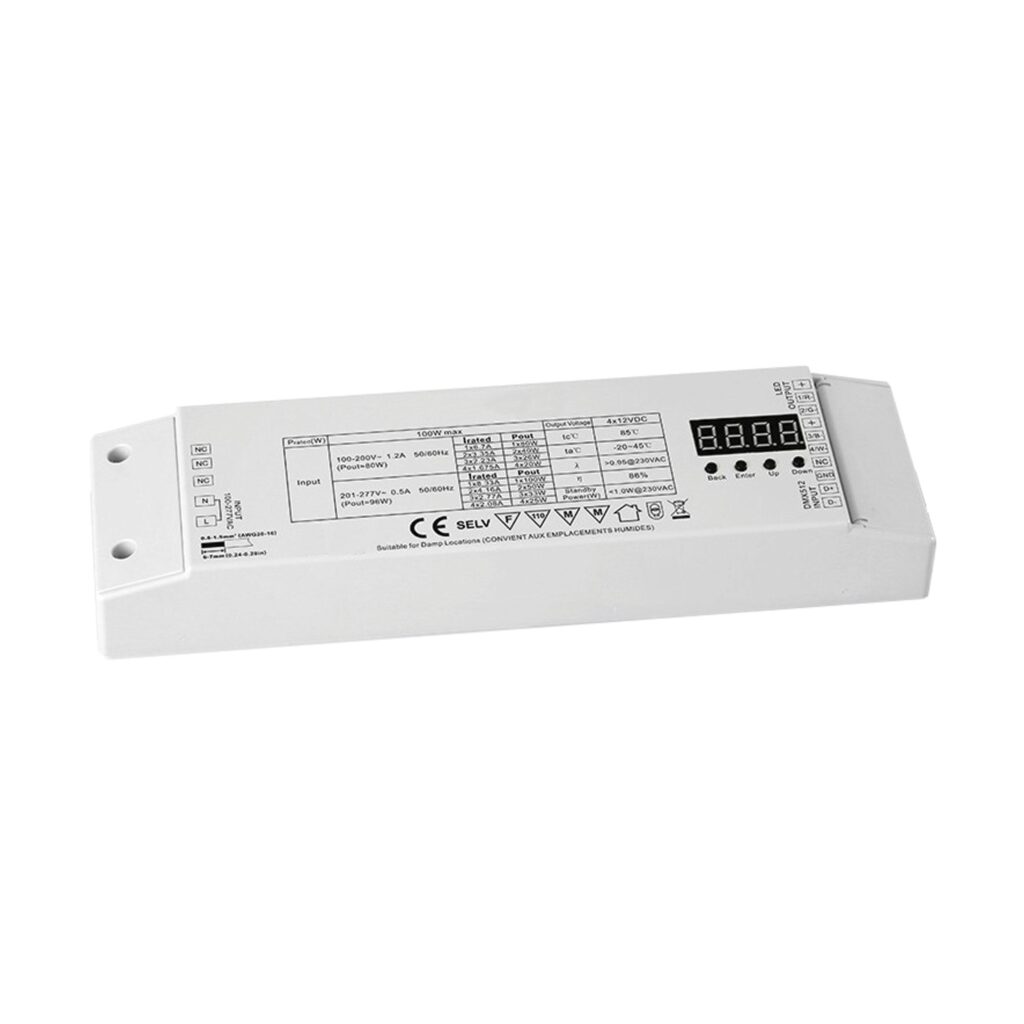

DI-DMX-DCO-24V96W-277

Driver with integrated DMX controller for integrating static color and color-changing tape light into DMX systems with the fewest possible components.

• Terminal connections
• Integrated DMX 512 decoder
• Commercial and residential applications

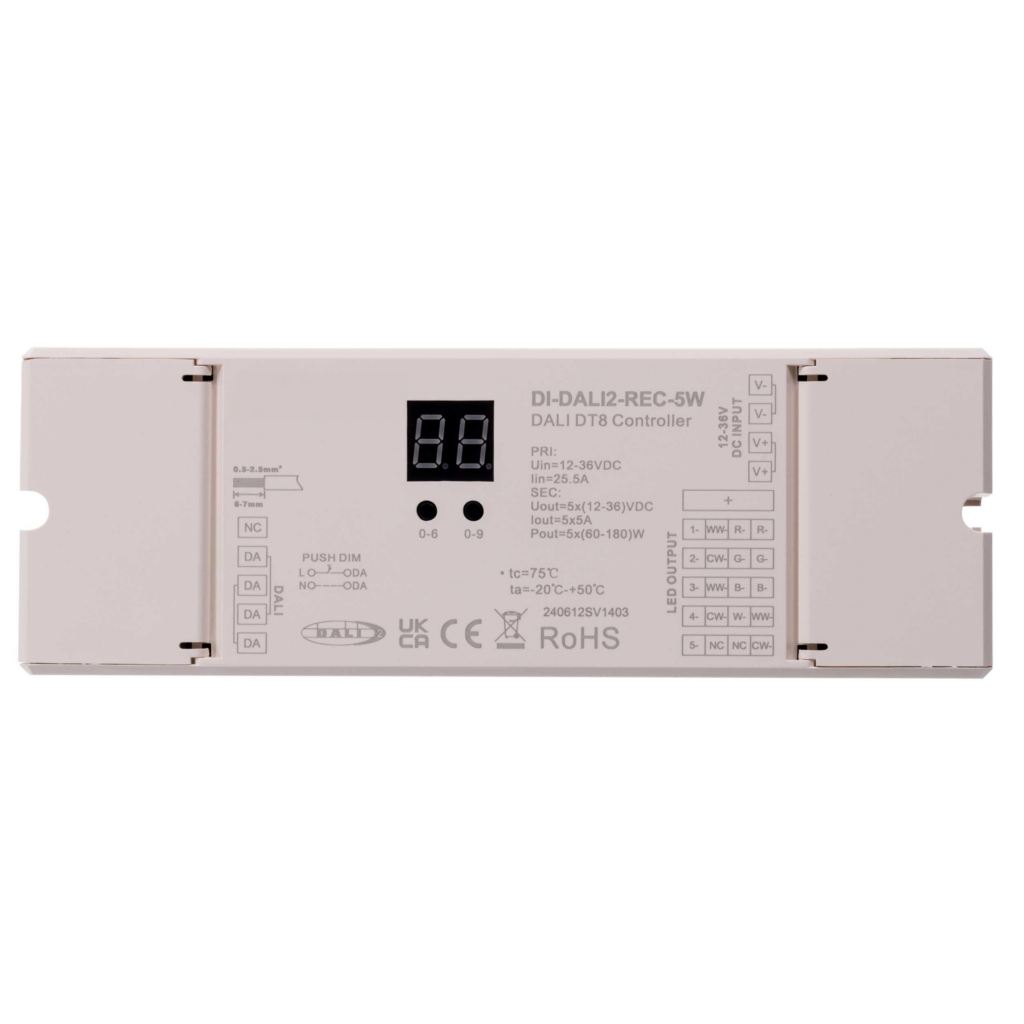

DI-DALI2-REC-5W

The 5-Channel Decoder offers precise control of TW, RGB, RGBW, and RGBWW lighting systems within a DALI2 control system, ensuring advanced lighting management. Its compact design and reliable performance make it ideal for complex, multi-zone lighting projects.

• Wired and wireless DALI2 compatibility
• 8-in-1 multi-functional control
• Manual DALI address assignment
• 5-channel constant voltage output
• Field mount for easy installation
• Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
