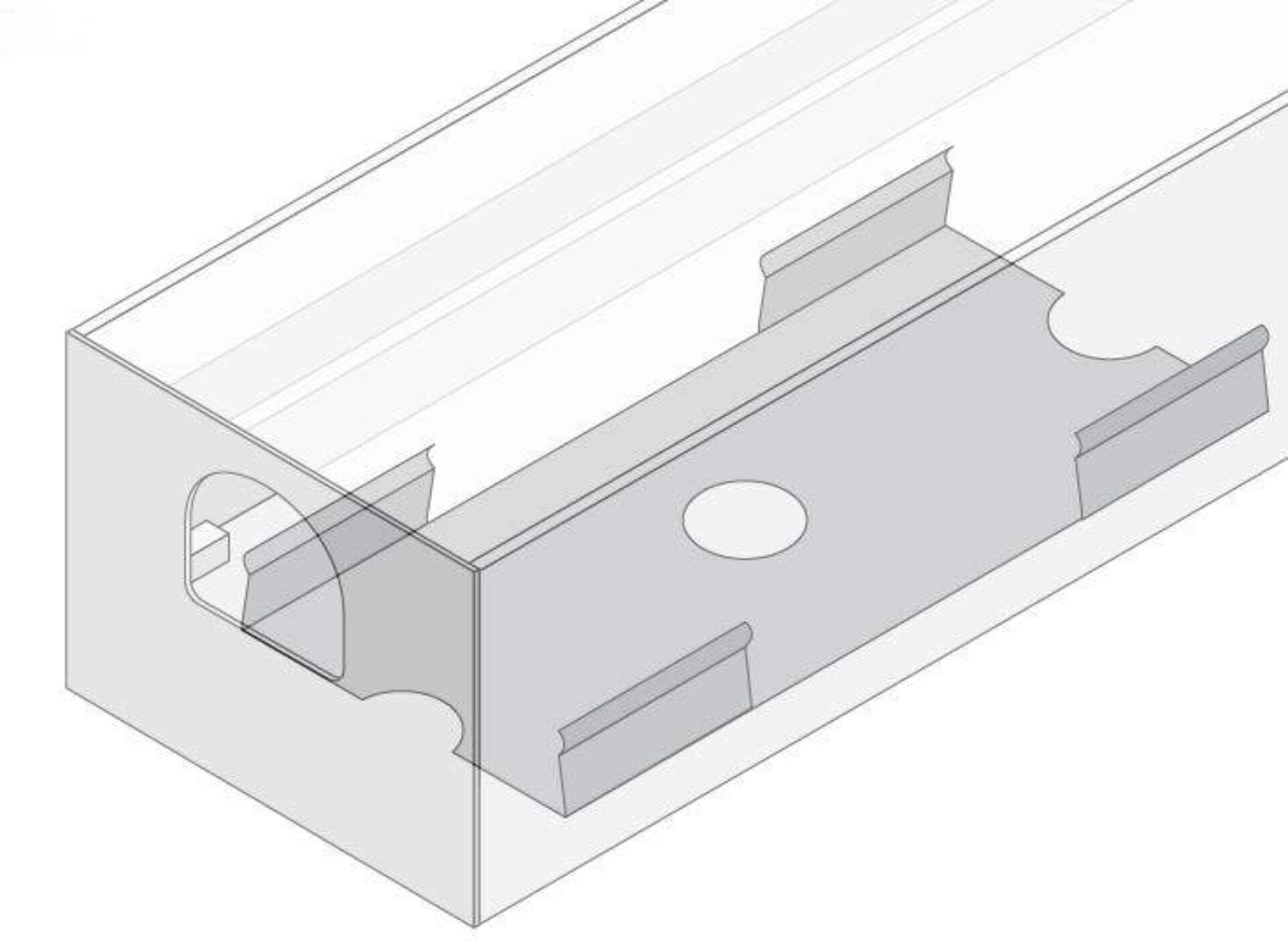

Mounting Clip

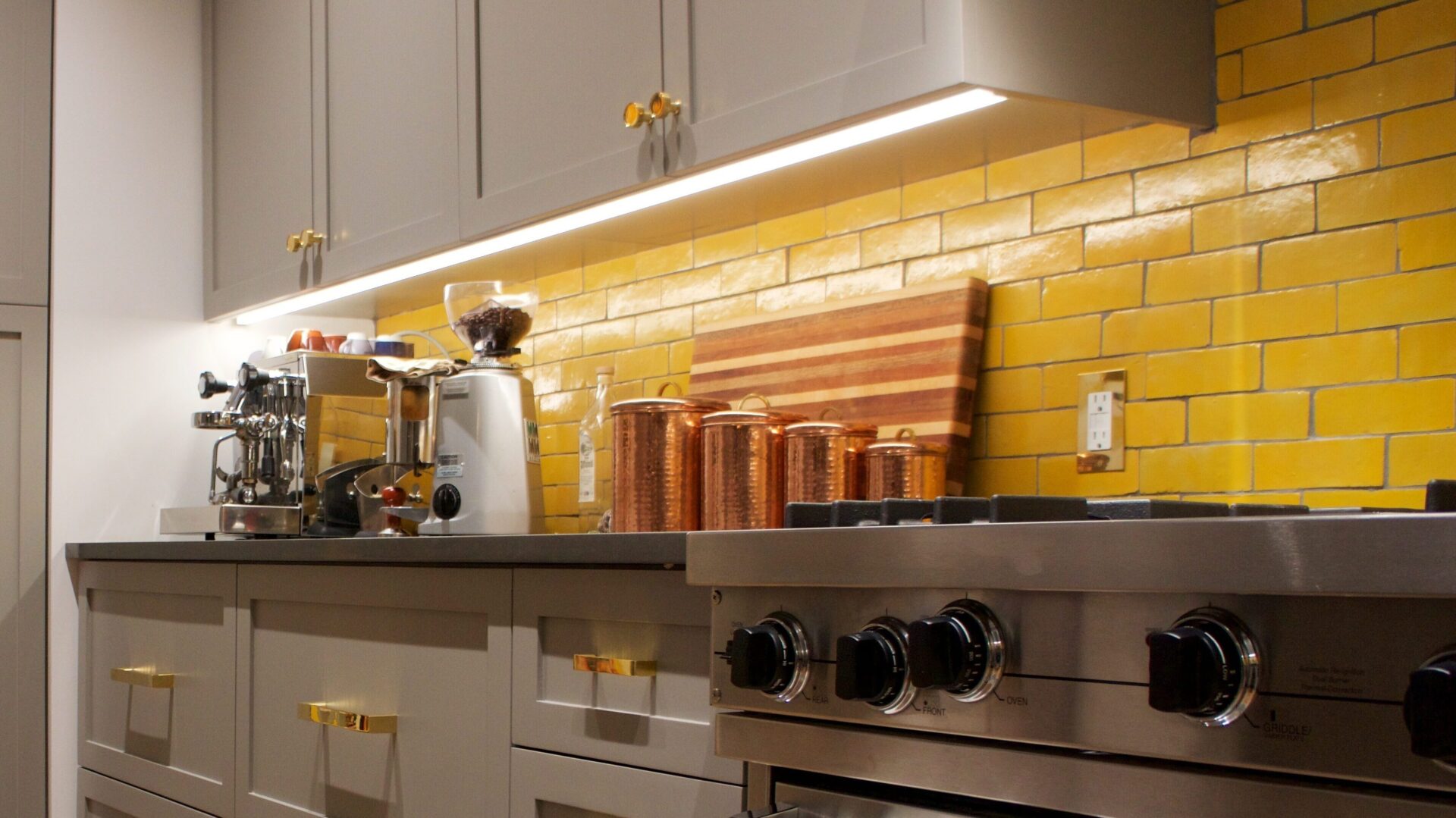

A shallow, architectural-grade fixture with an integrated wire raceway.
| Product | Fixture Finish | Rating | Performance | W/Ft. | CCT | Lens | Fixture Length | Exact/ Optimal | Input Wire Length | Input Wire | Output Wire Length | Output Wire | Mounting | |||||
| Color/Type | Input | Connection | Color/Type | Output | Connection | |||||||||||||
| LCI | FARO-A2 | WH (White) BL (Black) AL (Aluminum) | DRY (Indoor / Damp Location) | 98 CRI: 98+ R9: 95+ Fidelity: 103 Gamut: 95 | 1.8 3.3 5.4 7.5 9.5 | 20 22 24 27 30 35 42 50 63 | CLT
| Example: 12in | O (Optimal - Default) E (Exact) | 96 (96 in. - Default) | AW (White CL2 - Default) AB (Black CL2) AS (Silver Plenum - Bare Lead Only) | A (Straight - Default) C (Bottom) | 1 (Bare Wire - Default) 2 (Barrel) 3 (Interconnect) | *blank* (No Wire - Default) | *blank* (No Wire - Default) BW (White CL2) BB (Black CL2) BS (Silver Plenum - Bare Lead Only) | *blank* (No Wire - Default) A (Straight) C (Bottom) | *blank* (No Wire - Default) 1 (Bare Wire) 2 (Barrel) 3 (Interconnect) | UC (U-Clip) |
| 95 CRI: 95+ R9: 90+ Fidelity: 103 Gamut: 95 | 1 1.9 2.8 4.6 7.2 | 20 22 24 27 30 35 40 50 63 | ||||||||||||||||
| 90 CRI: 90 R9: 55+ Fidelity: 99 Gamut: 88 BAA & BABA Compliant | 3.3 5 | 24 27 30 35 40 50 | ||||||||||||||||
| Product | Fixture Finish | Rating | Performance | W/Ft. | CCT | Lens | Fixture Length | Exact/ Optimal | Input Wire Length | Input Wire | Output Wire Length | Output Wire | Mounting | |||||
| Color/Type | Input | Connection | Color/Type | Output | Connection | |||||||||||||
| LCI | FARO-A2 | WH (White) BL (Black) AL (Aluminum) | WET (Outdoor / Wet Location) | 95 CRI: 95+ R9: 90+ Fidelity: 103 Gamut: 95 | 1.8 4.6 | 24 27 30 35 40 | FR (Frosted) | Example: 12in | O (Optimal - Default) E (Exact) | 96 (96 in. - Default) | AW (White CL2 - Default) AB (Black CL2) | A (Straight - Default) | 1 (Bare Wire - Default) | *blank* (No Wire - Default) | *blank* (No Wire - Default) BW (White CL2) BB (Black CL2) | *blank* (No Wire - Default) A (Straight) | *blank* (No Wire - Default) 1 (Bare Wire) | UC (U-Clip) |
