LINAIRE® Flex Top Bend

Top-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.

Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 300+ lumens per foot.

Features & Benefits

Flexible, durable fixture with no visible dots
Water resistant for indoor and outdoor use
90+ CRI
Long maximum run lengths
Factory assembly (IP67)
Field cuttable, free-cut assembly (IP65)
5 Year Warranty

Spec Sheet Installation Guide IES Files LM-79 Report Field Assembly Video

5 Year Limited Warranty

Factory assembly (IP67)

Field cuttable, free-cut termination (IP65)

SKU Builder

	Voltage	Model	Series	CCT	Run Length	Wire Entry

DI	24V	TE	LIN	24 (2400K)	016 (16 ft. spool)	STE (Straight Wire Entry)
			LIN3	27 (2700K)	032 (32 ft. spool)	SDE (Side Wire Entry)
				30 (3000K)		BE (Bottom Wire Entry)
				35 (3500K)
				40 (4000K)

Mounting Accessories

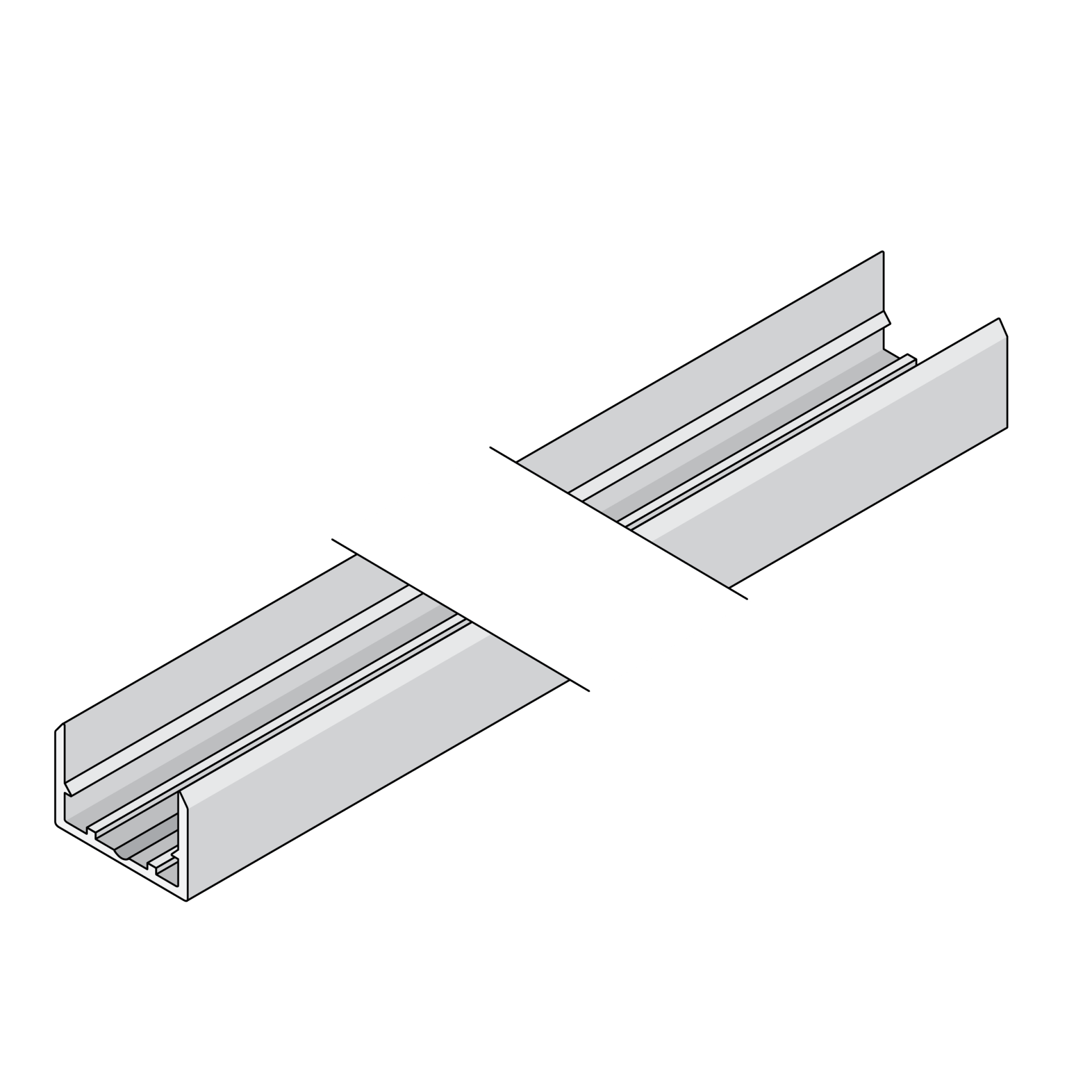

Straight Mounting Channel
DI-LIN-TE-MTCH-39

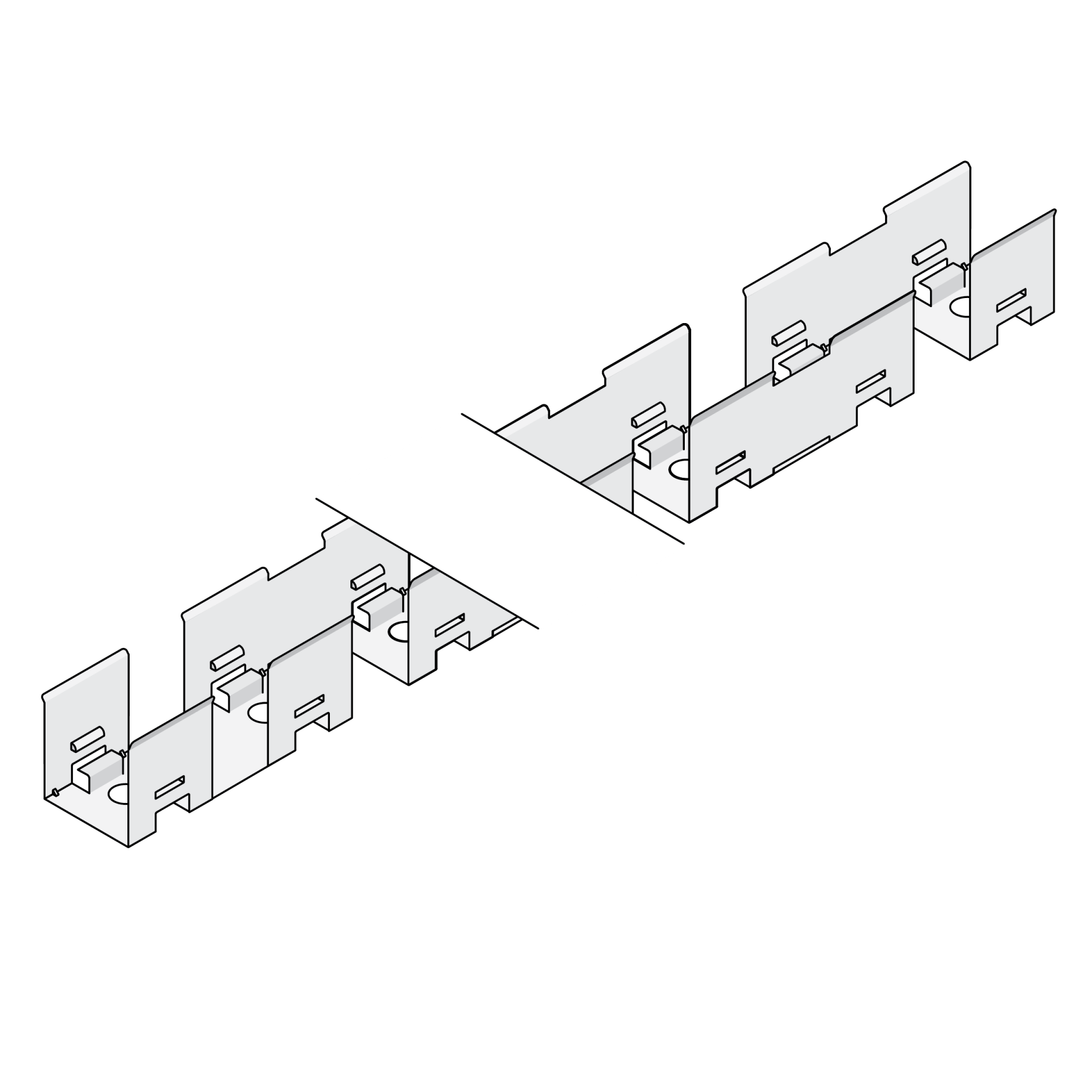

Spine Mounting Channel
DI-LIN-TE-SPINE-39

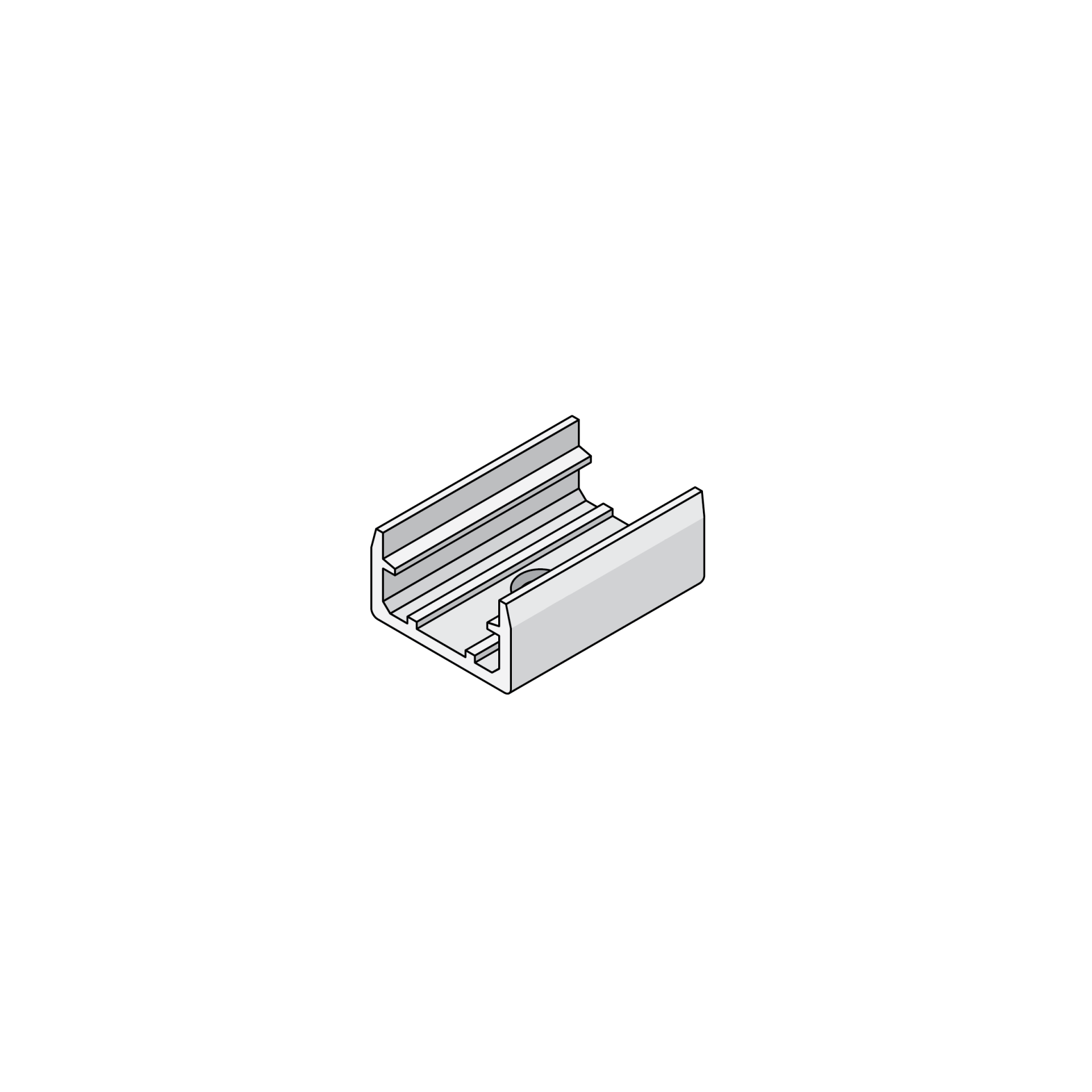

Mounting clip
DI-LIN-TE-MTCL-2

Factory Assembly Wire Entry Options

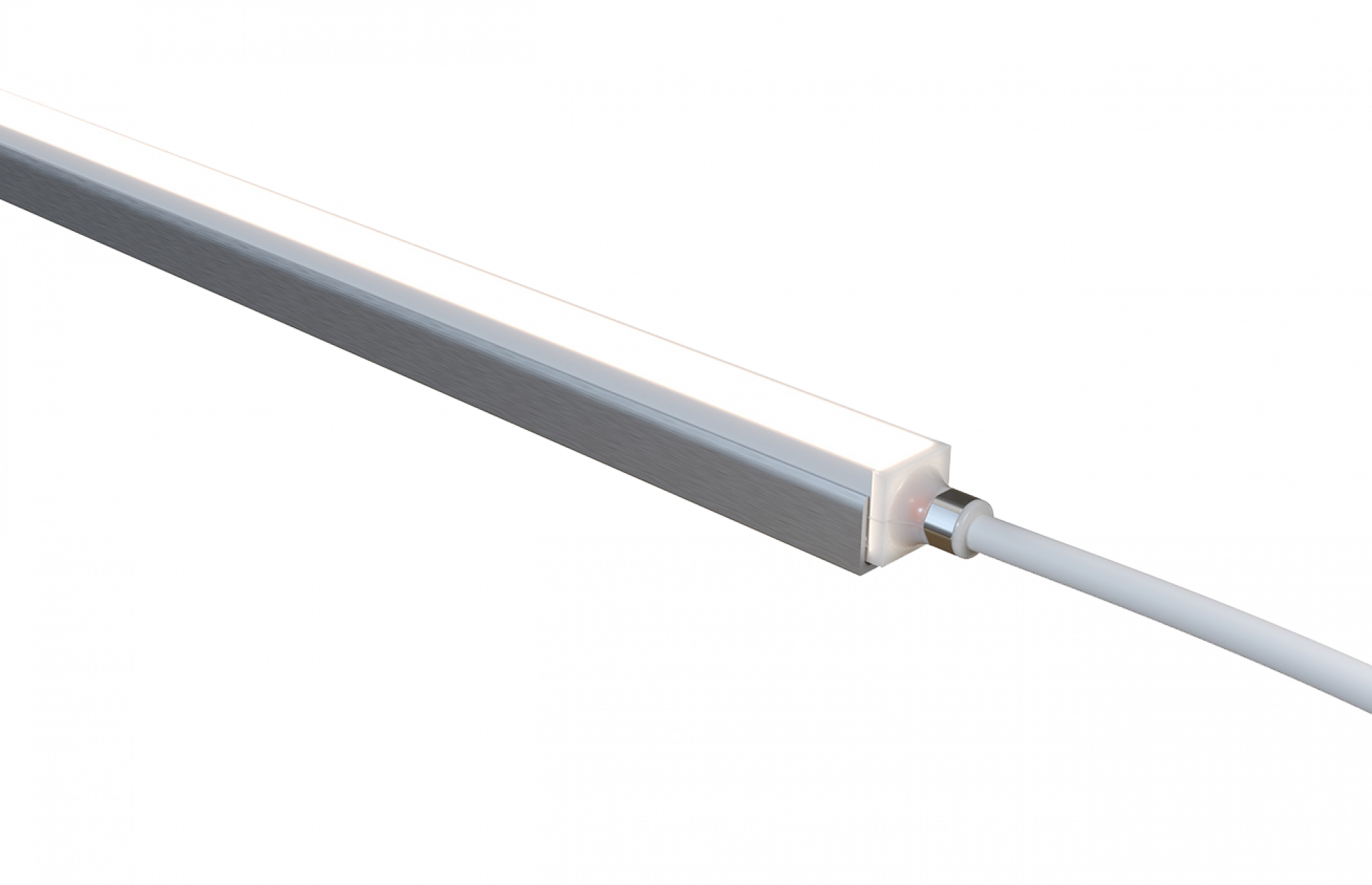

Straight Wire Entry

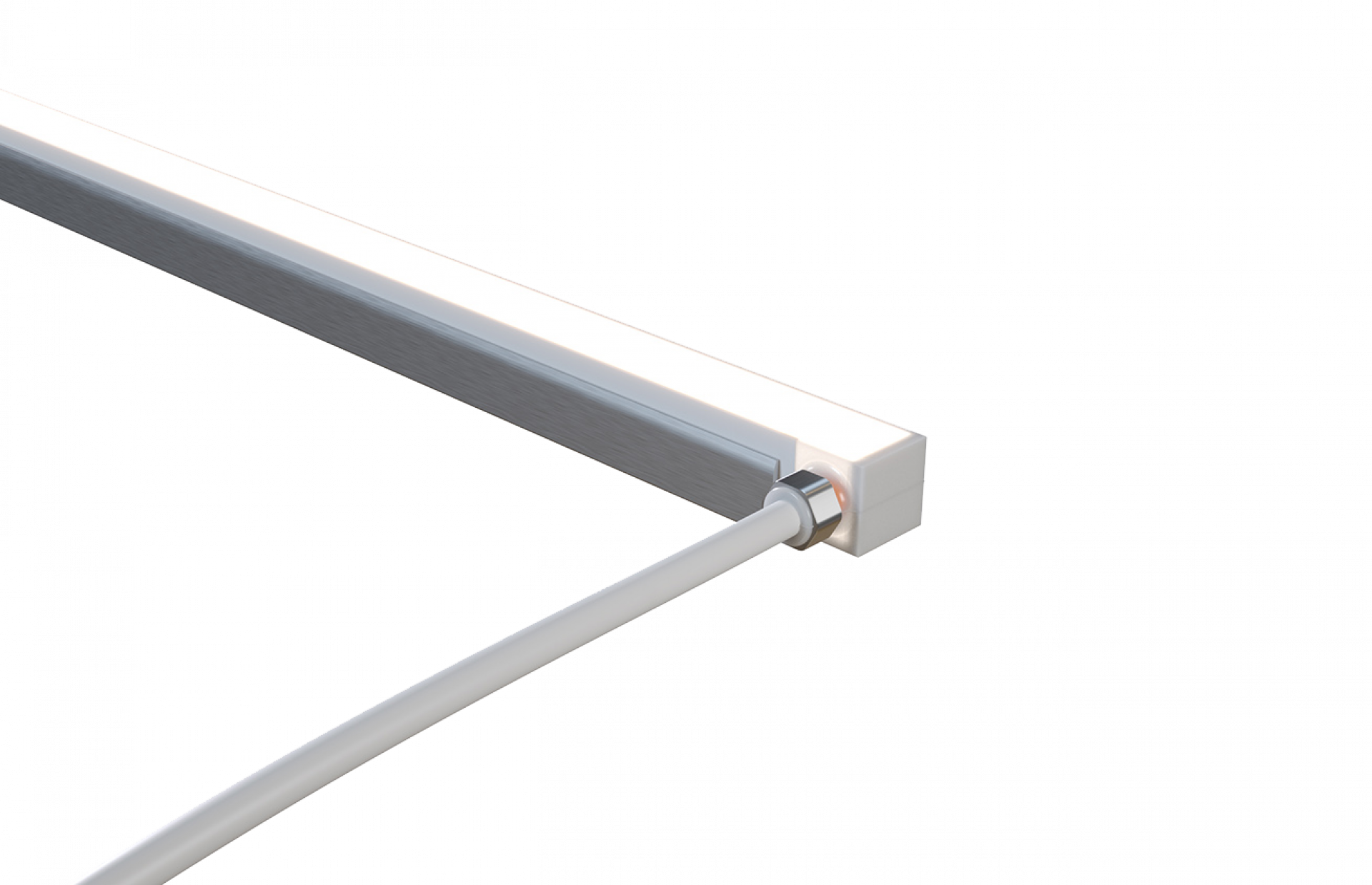

Side Wire Entry

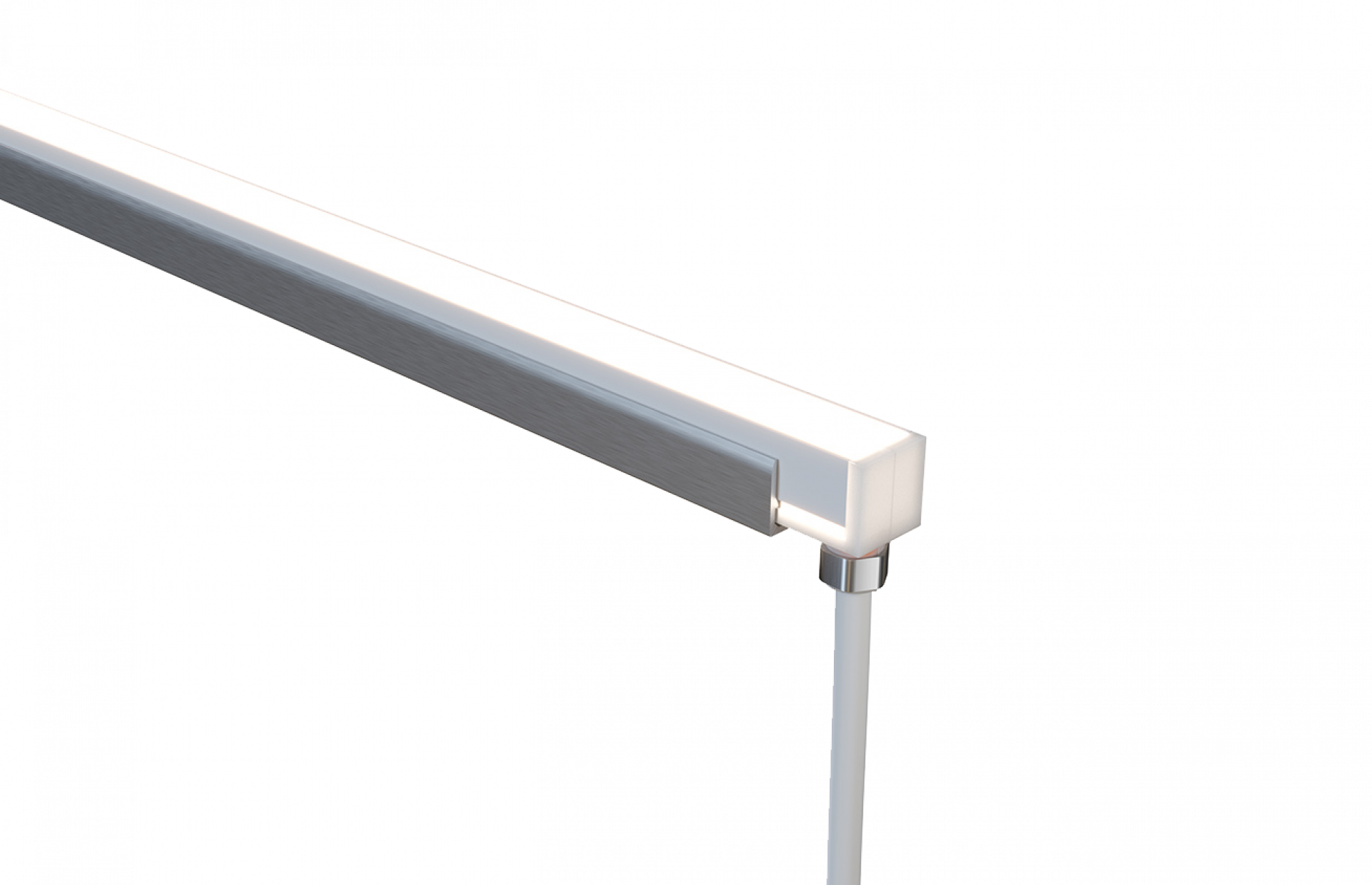

Bottom Wire Entry

Field Assembly
Wire Entry Options & Components

Straight Connector
DI-LIN-TE-STFC

Side Connector
DI-LIN-TE-SDFC

Bottom Connector
DI-LIN-TE-BFC

Dead End Cap
DI-LIN-TE-DEC
