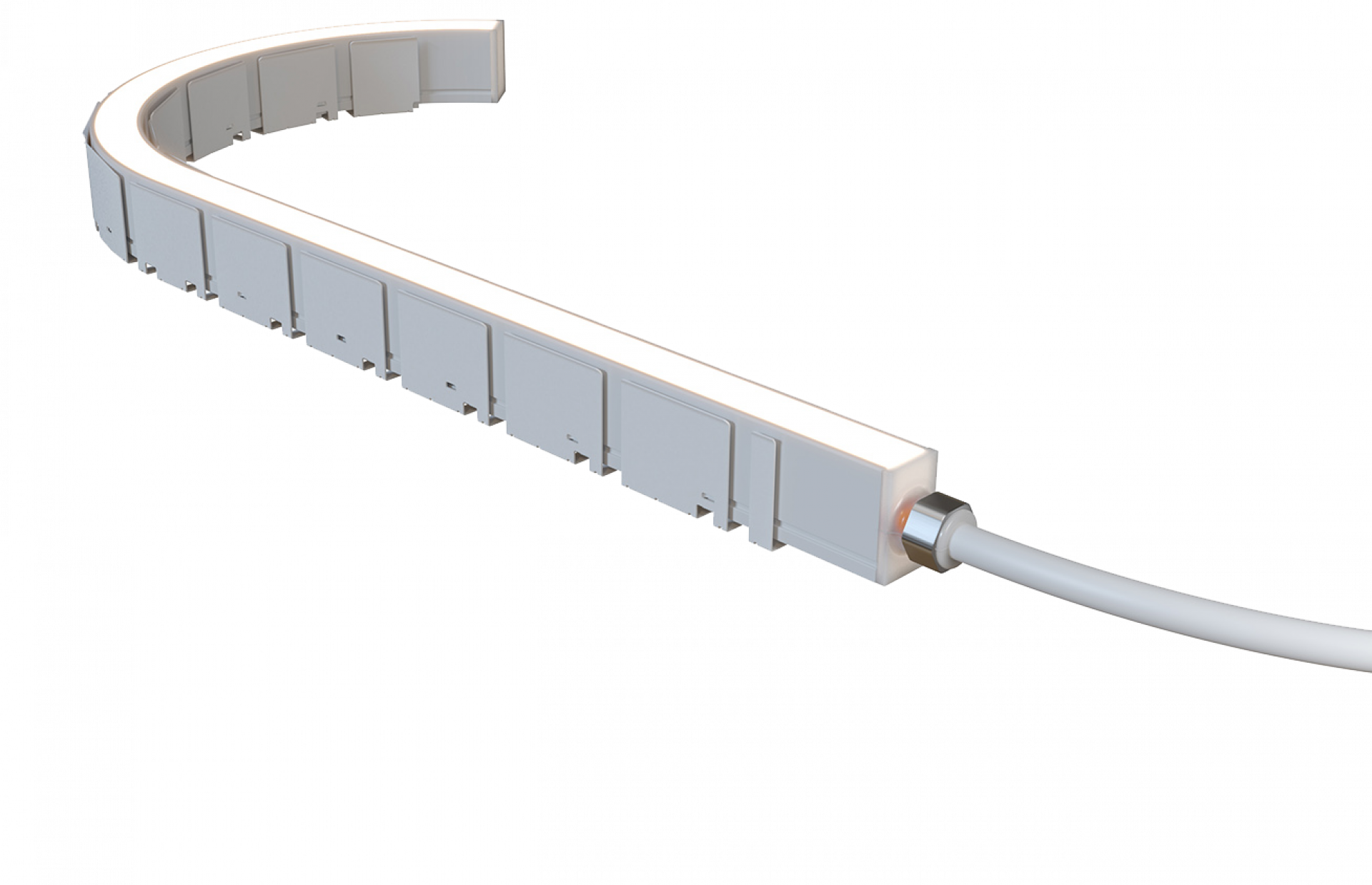

LINAIRE® Flex Side Bend

Side-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.

Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 190+ lumens per foot.



Features and Benefits
  • Side-bending for curved architectural details
  • Flexible, durable fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • 90+ CRI
  • Long maximum run lengths
  • Factory assembly (IP67)
  • Field cuttable, free-cut assembly (IP65)
  • 5 Year Warranty
Spec Sheet Installation Guide IES Files LM-79 Report Field Assembly Video
5 Year Limited Warranty
Factory assembly (IP67)
Field cuttable, free-cut termination (IP65)

SKU Builder



Voltage

Model

Series

CCT

Run Length

Wire Entry









DI

24V

SE

LIN

24 (2400K)

016 (16 ft. spool)

STE (Straight Wire Entry)







LIN2

27 (2700K)

032 (32 ft. spool)

SDE (Side Wire Entry)









30 (3000K)



BE (Bottom Wire Entry)









35 (3500K)













40 (4000K)





Mounting Accessories

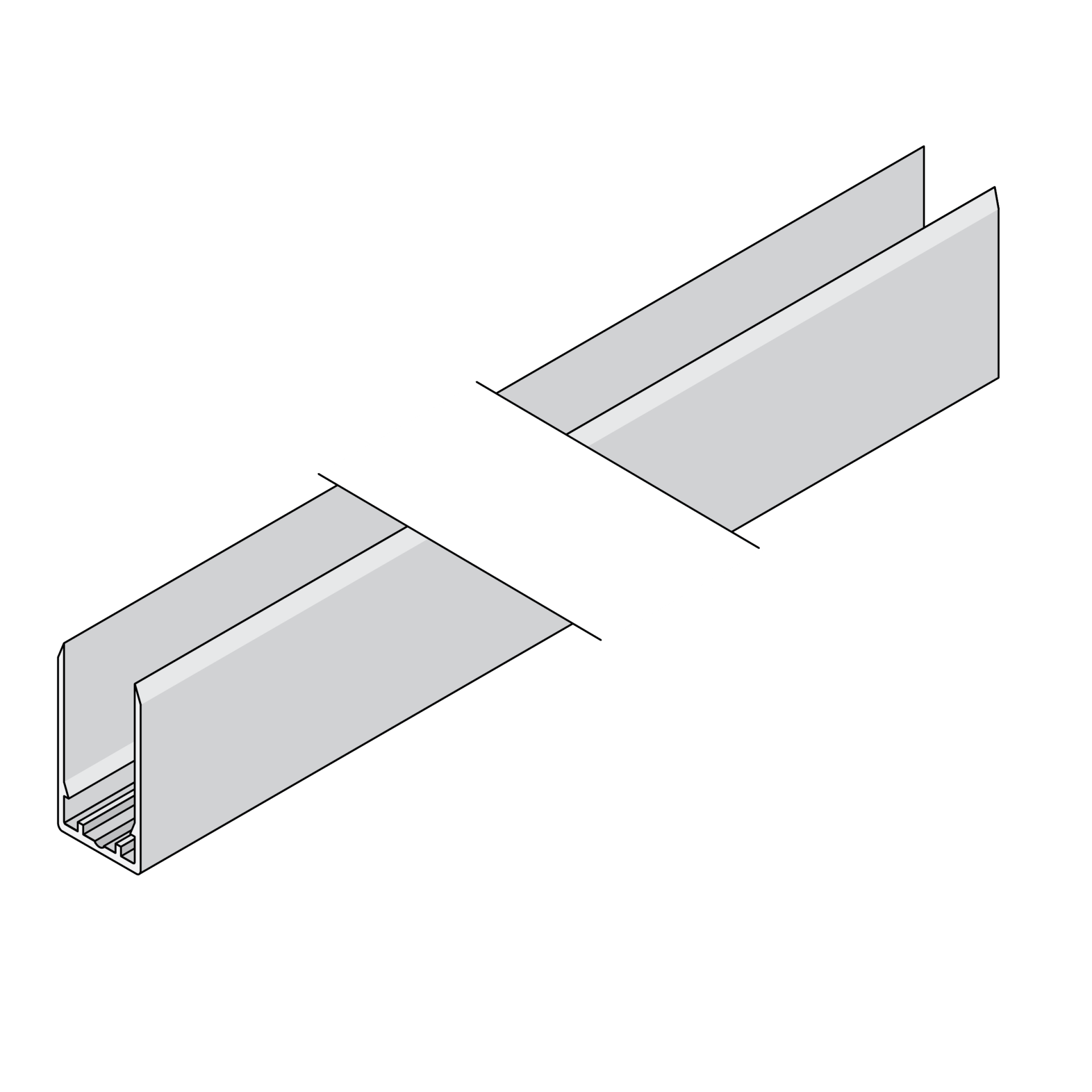

Straight Mounting Channel
DI-LIN-SE-MTCH-39

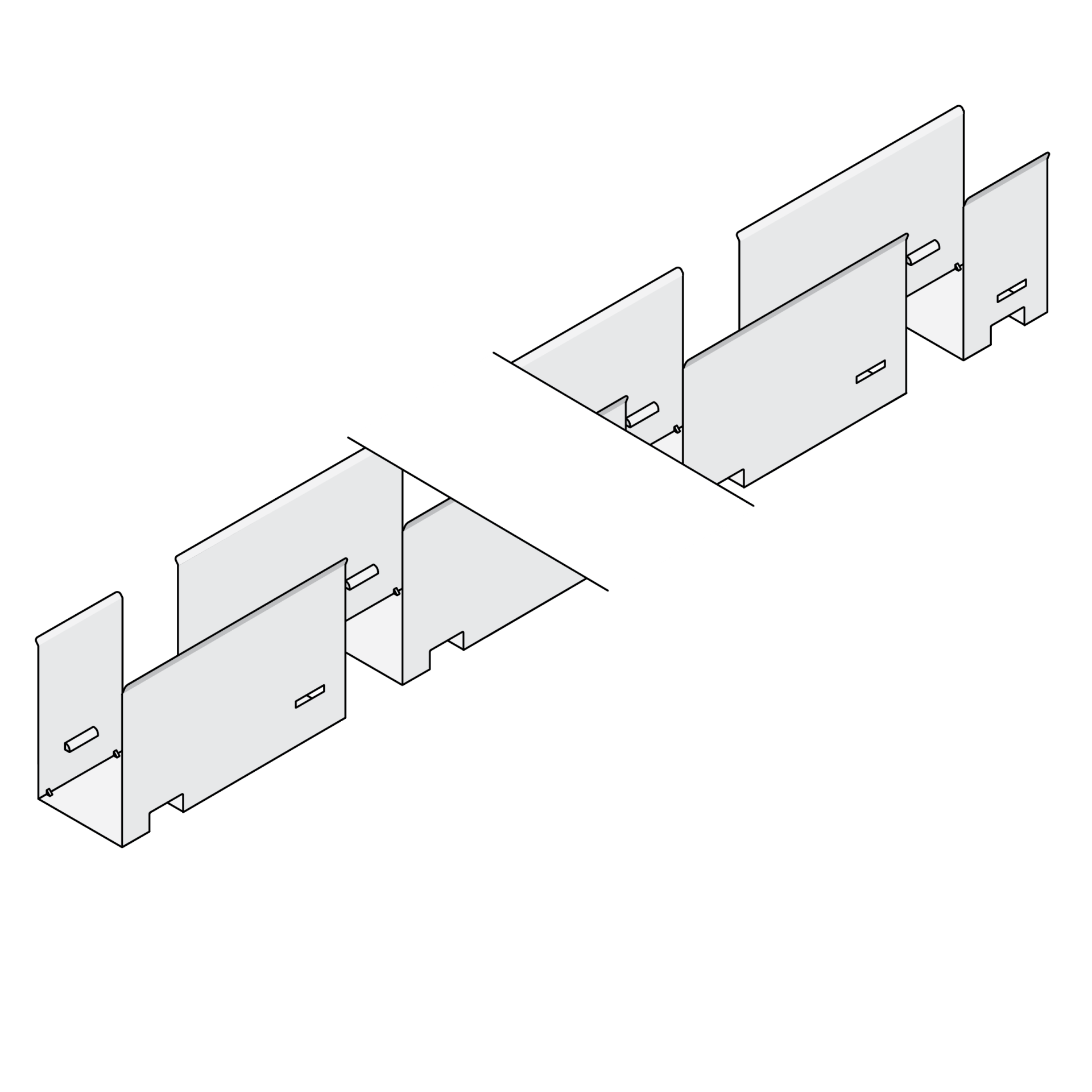

Spine Mounting Channel
DI-LIN-SE-SPINE-39 [39" piece, white]

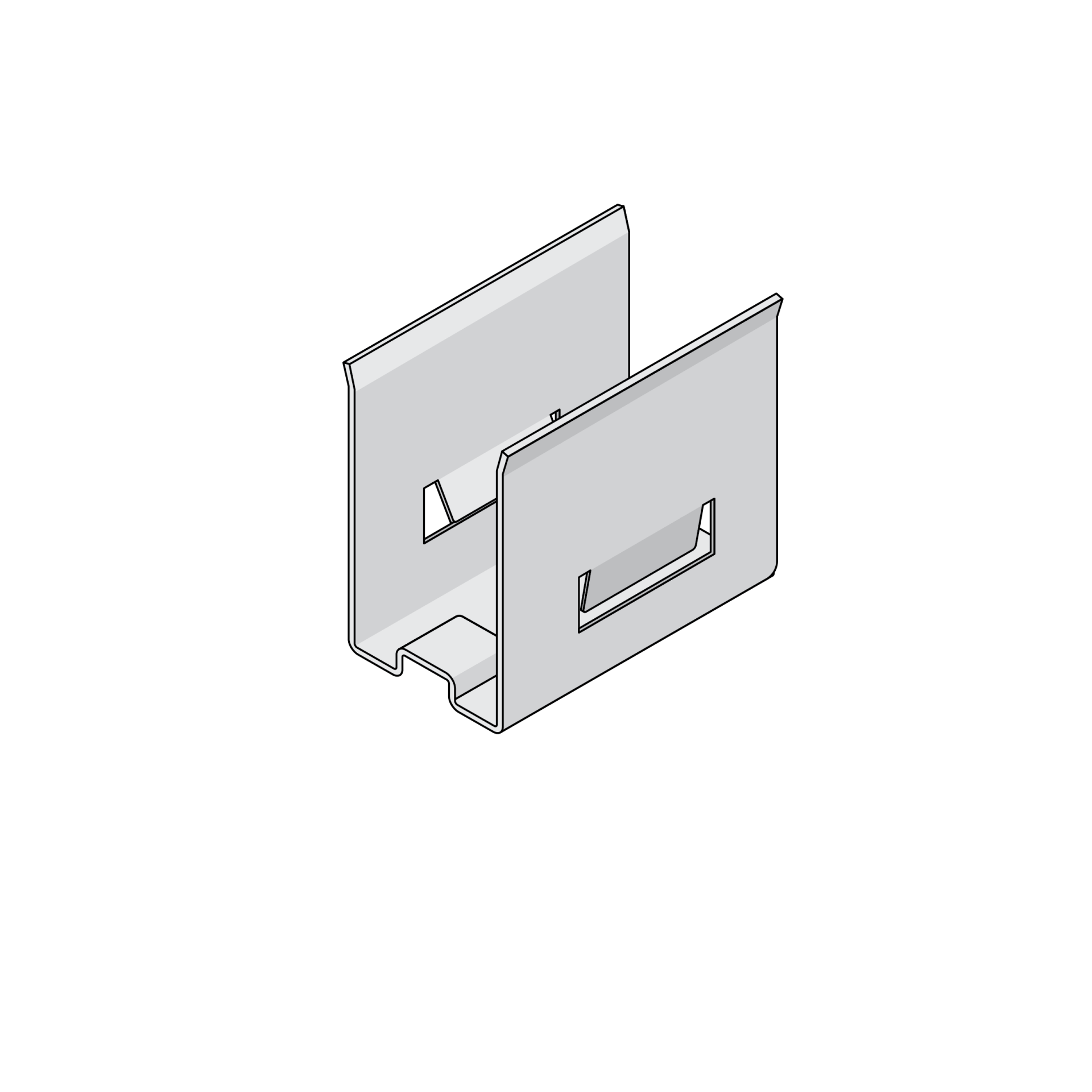

Mounting clip
DI-LIN-SE-MTCL-2 [2-pack, white]

Factory Assembly
Wire Entry Options

Straight Wire Entry

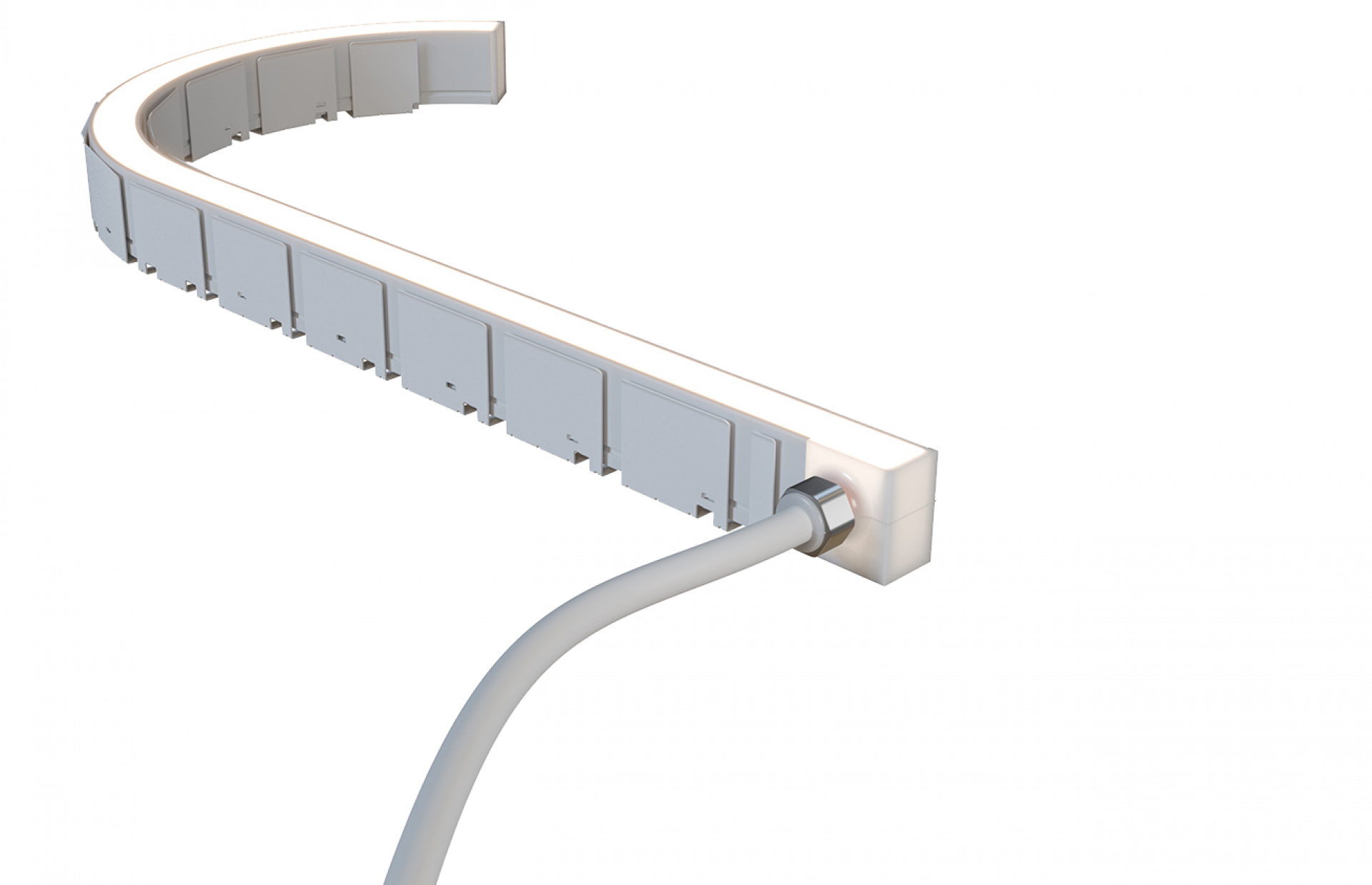

Side Wire Entry

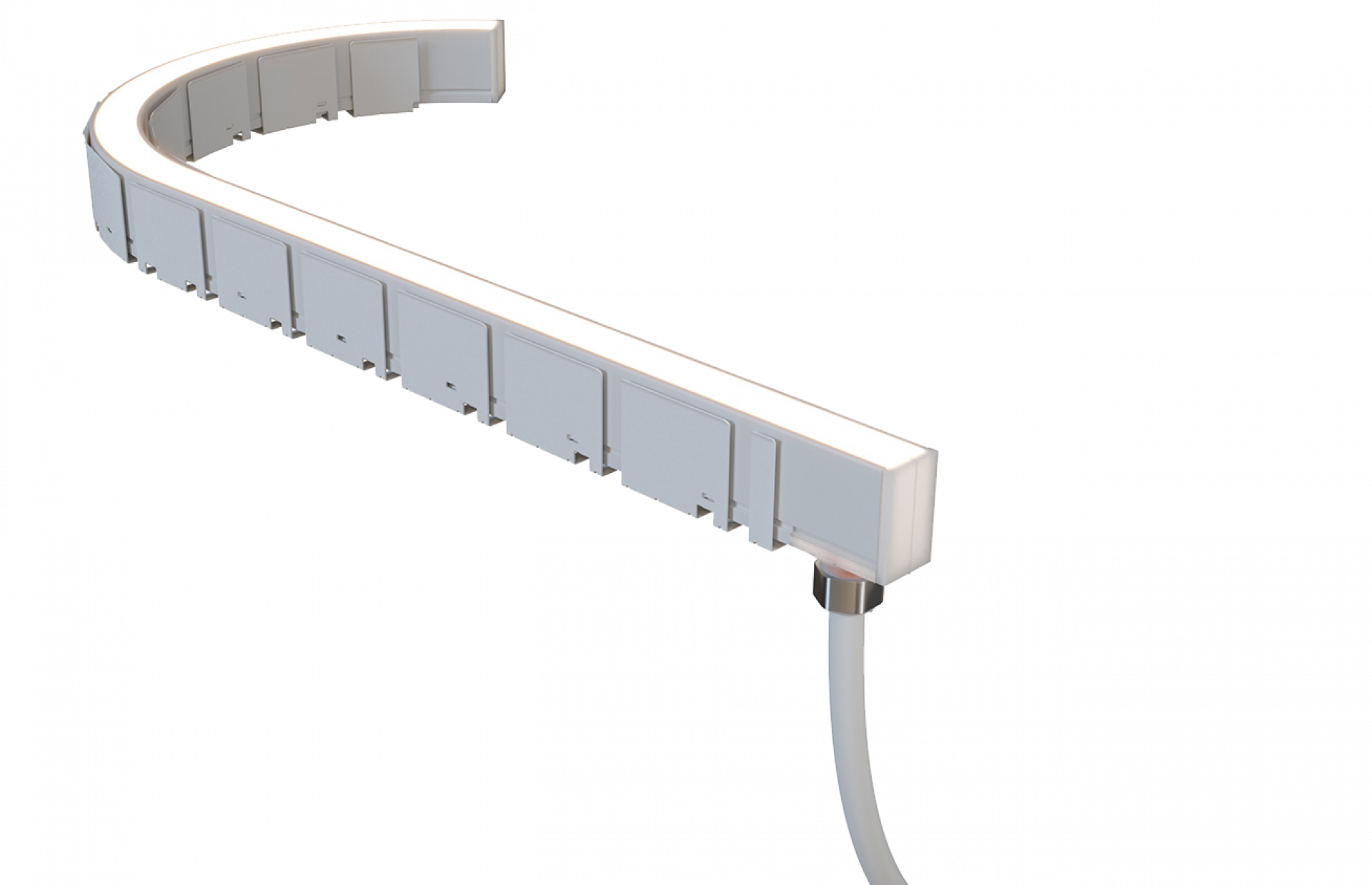

Bottom Wire Entry

Field Assembly
Wire Entry Options & Components

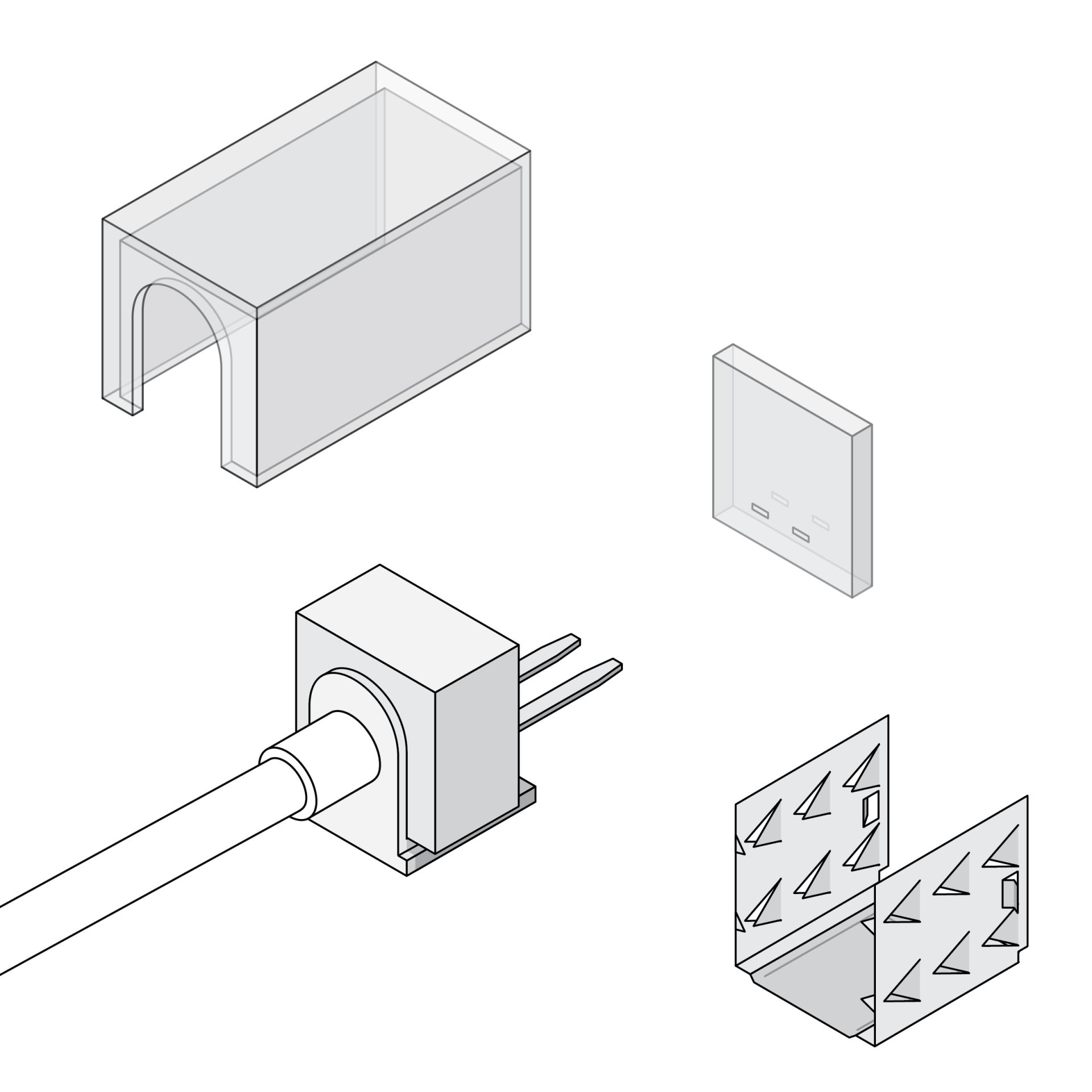

Straight Connector
DI-LIN-SE-STFC

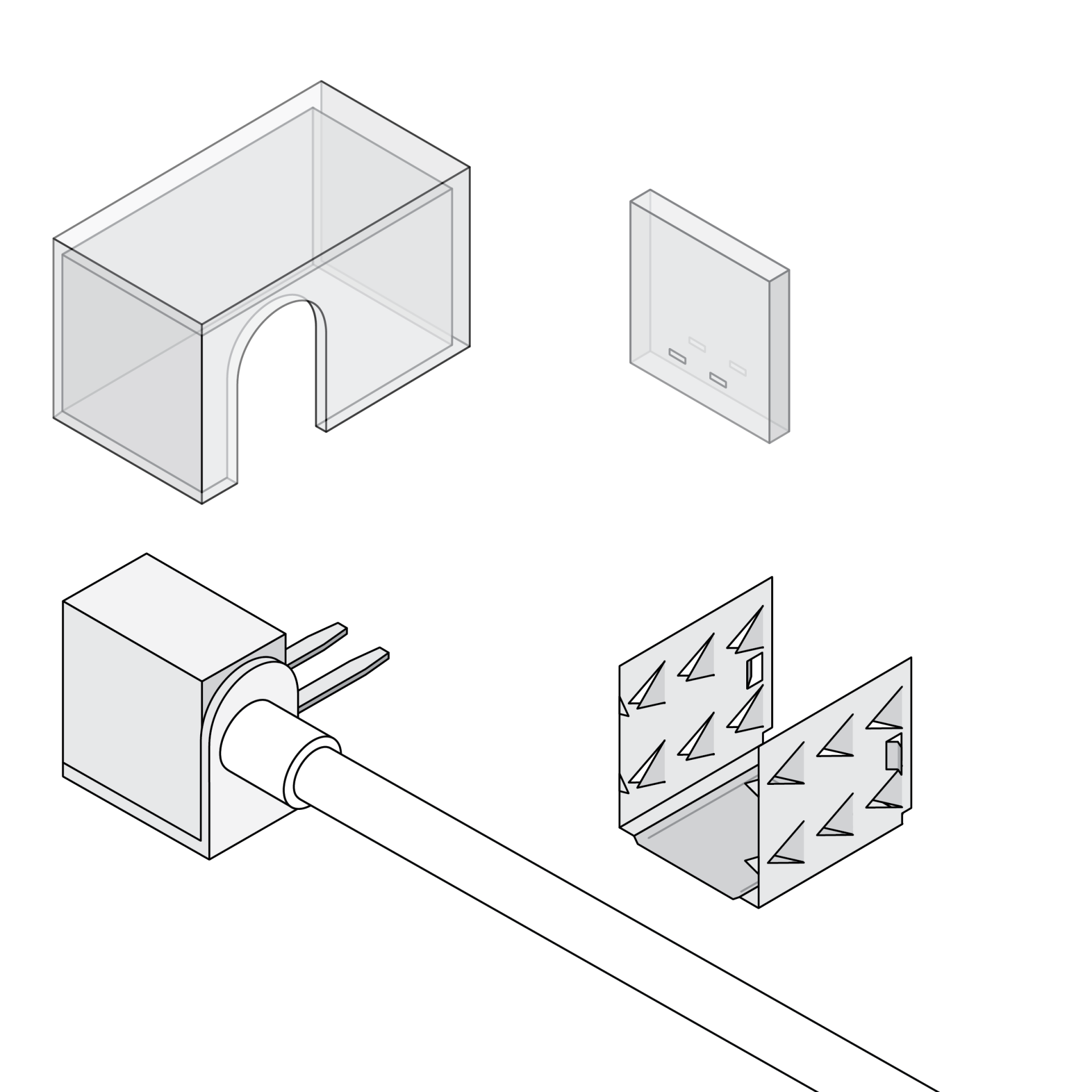

Side Connector
DI-LIN-SE-SDFC

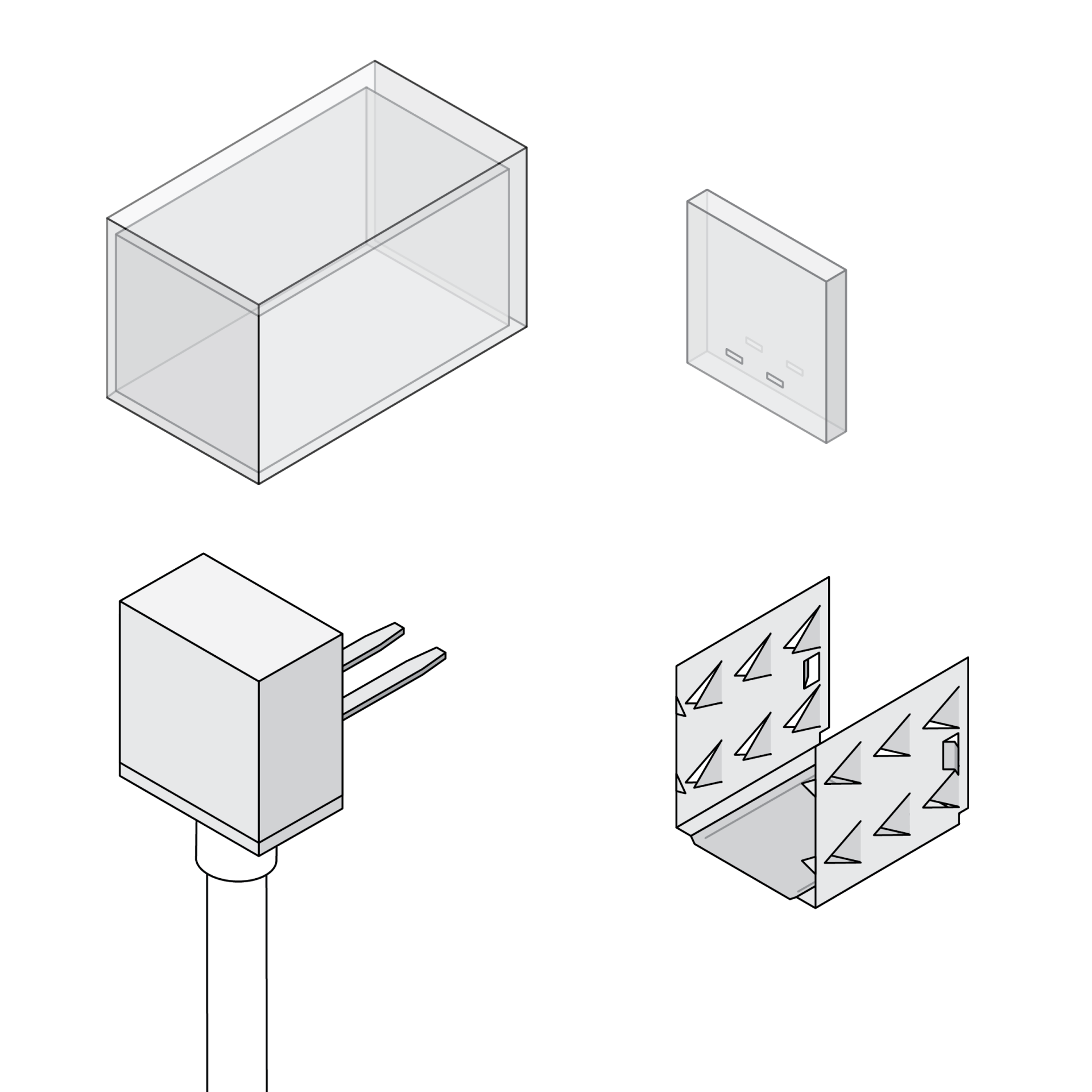

Bottom Connector
DI-LIN-SE-BFC

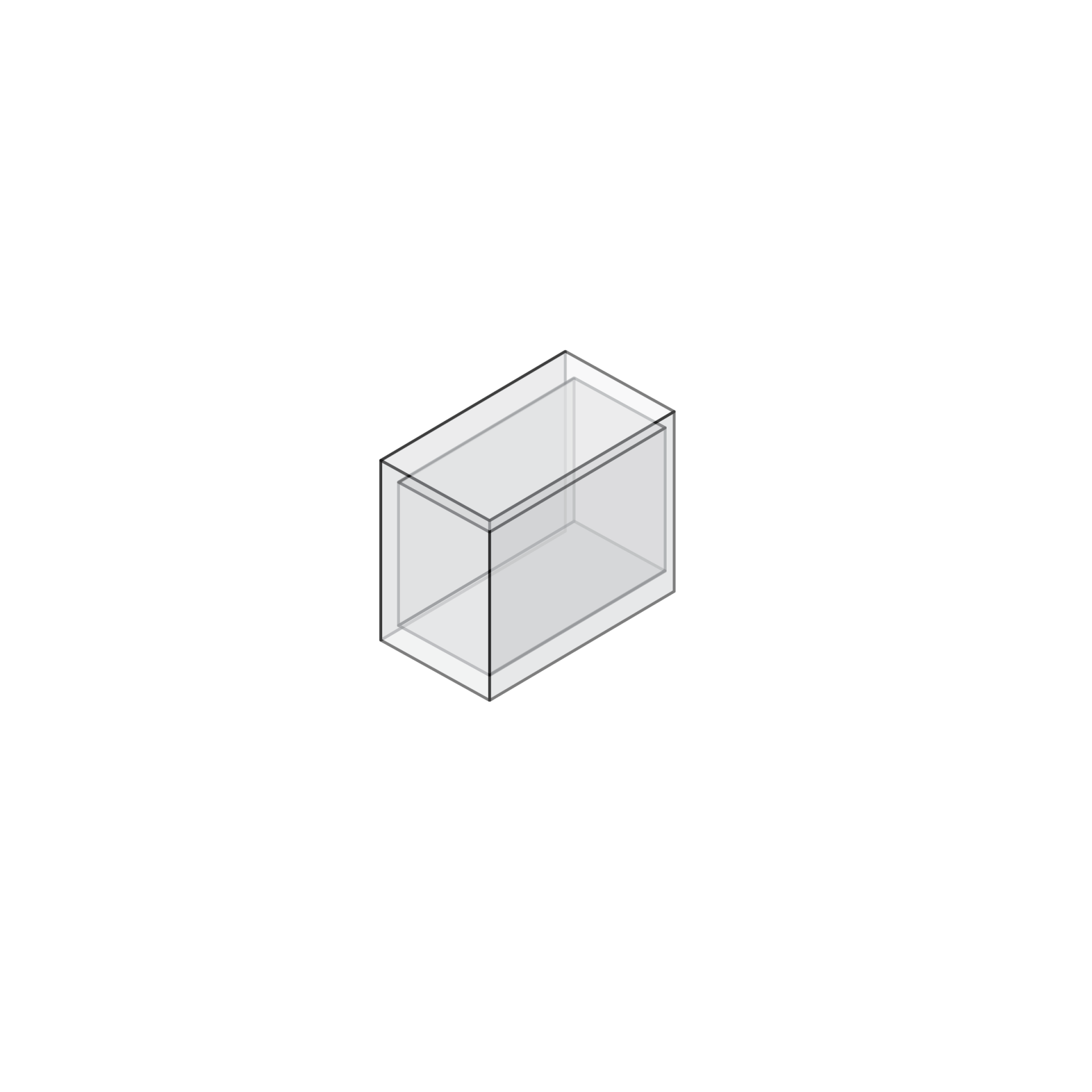

Dead End Cap
DI-LIN-SE-DEC
