LINAIRE® Flex Mini 3D Bend

Small, flexible architectural light that bends in both top and side directions to fit any space. Water resistant with precision light quality and full diffusion for a dotless look. Place long runs of linear light anywhere – including wet locations – with this versatile, elegant linear light.

Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 80+ lumens per foot.



Features and Benefits
  • Bends in both directions (top and side) for maximum versatility
  • Small, flexible fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • 90+ CRI
  • Factory assembly (IP67)
  • Field cuttable, free-cut termination (IP65)
Spec Sheet Installation Guide IES Files LM-79 Report
• 5 Year Limited Warranty
• Factory assembly (IP67)
• Field cuttable, free-cut termination (IP65)

SKU Builder

Make

Voltage

Model

CCT

Run Length

Wire Entry

MountingDriver

DI

24V

LINM3D




2400

[run length]

Straight

MTCH (Mounting Channel)ELV (Electronic)


2700

32 (32 ft. spool)

Side

SPINE (Spine Channel)0-10V (0-10 Volt)


3000



Bottom

MTCL (U-Clips)TRIAC


3500

  3M (Adhesive)MLV (Magnetic)


4000

  NoneSWX (SwitchEx)

Mounting Accessories

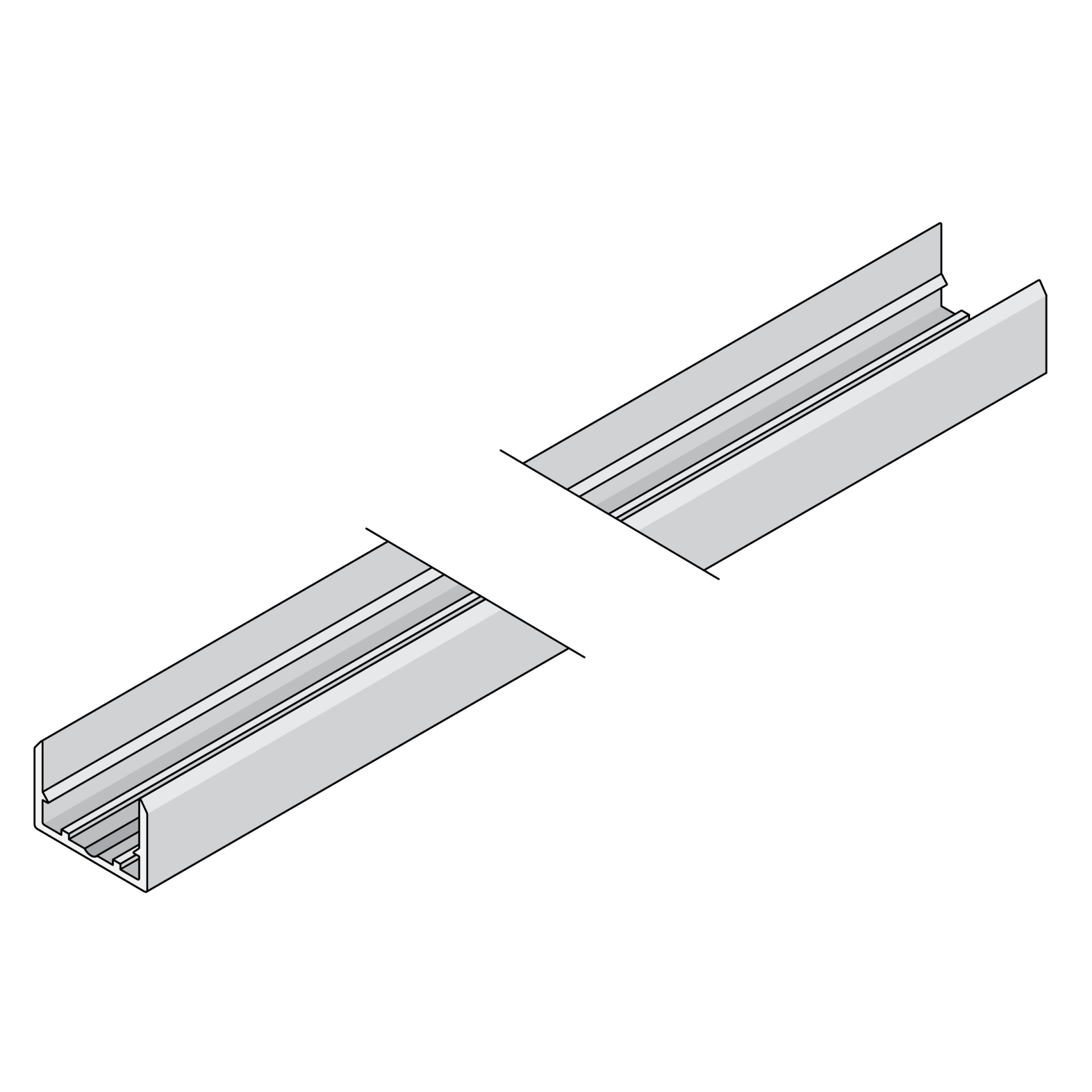

Mounting channel
DI-LIN-M3D-MTCH-39 [39" piece, aluminum]

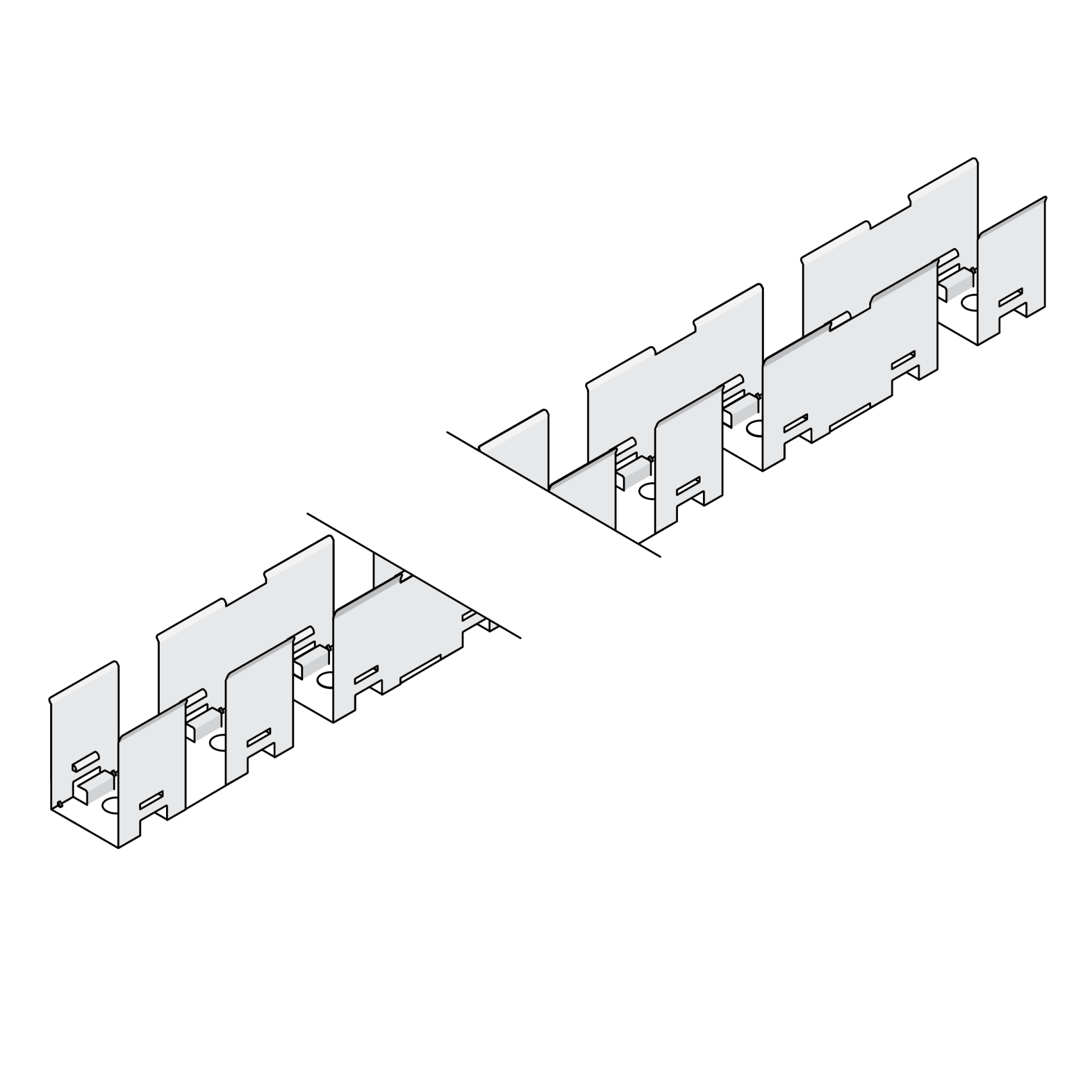

Spine channel
DI-LIN-M3D-SPINE-39 [39" piece, white]
Mounting clip
DI-LIN-M3D-MTCL-2 [2-pack, white]
Dead End Cap
DI-LIN-M3D-DEC

Factory Assembly
Wire Entry Options

Straight Wire Entry
Side Wire Entry
Bottom Wire Entry
