LINAIRE® Flex 3D Bend


Flexible architectural light that bends in both top and side directions to fit any space. Water resistant with precision light quality and full diffusion for a dotless look. Place long runs of linear light anywhere – including wet locations – with this versatile, elegant linear light.

Standard color temperatures (CCTs) from 2400K to 4000K, and light output up to 375+ lumens per foot.


Features and Benefits
  • Bends in both directions (top and side) for maximum versatility
  • Flexible, durable fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • 90+ CRI
  • Factory assembly (IP67)
  • Field cuttable, free-cut termination (IP65)
Spec Sheet Installation Guide IES Files LM-79 Report
• 5 Year Limited Warranty
• Factory assembly (IP67)
• Field cuttable, free-cut termination (IP65)

SKU Builder



Voltage

Model

Series

CCT

Run Length

Wire Entry









DI

24V

3D

LIN

24 (2400K)

016 (16 ft. spool)

STE (Straight Wire Entry)







LIN4

27 (2700K)

032 (32 ft. spool)

SDE (Side Wire Entry)









30 (3000K)



BE (Bottom Wire Entry)









35 (3500K)













40 (4000K)





Mounting Accessories

Mounting channel
DI-LIN-3D-MTCH-39 [39" piece]

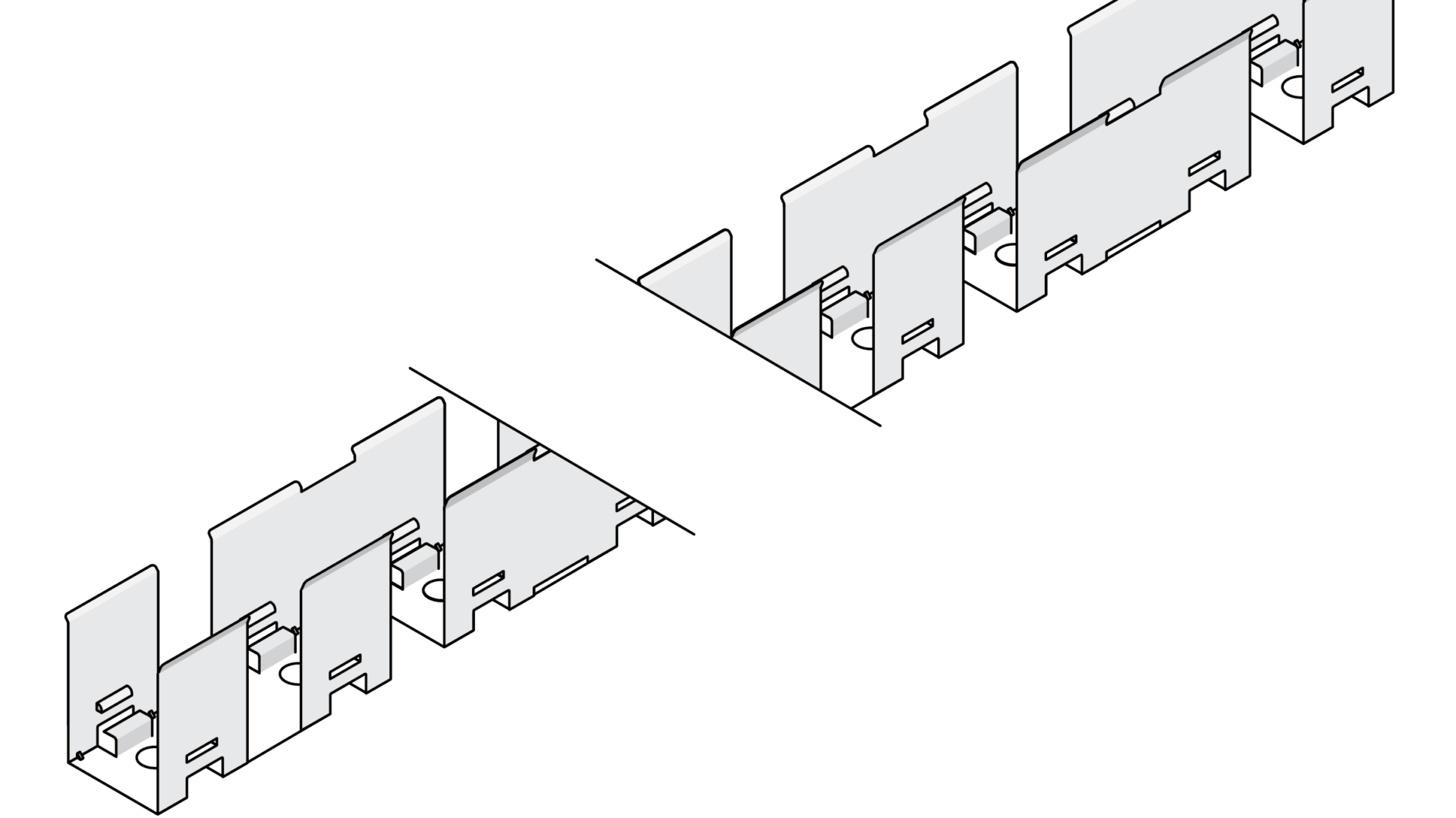

Spine Channel
DI-LIN-3D-SPINE-39 [39" piece]

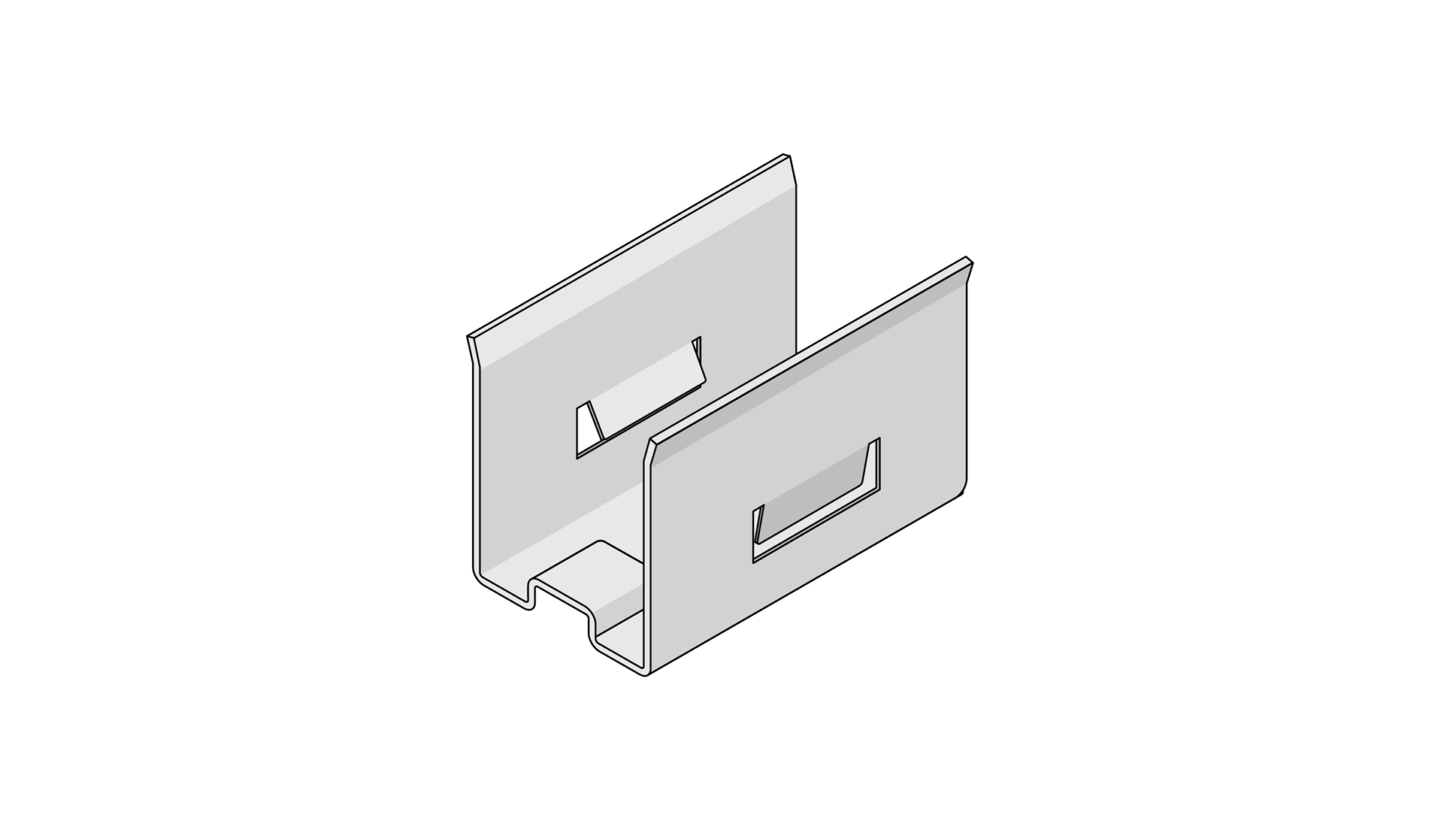

Mounting clip
DI-LIN-3DMTCL-2 [2-pack]

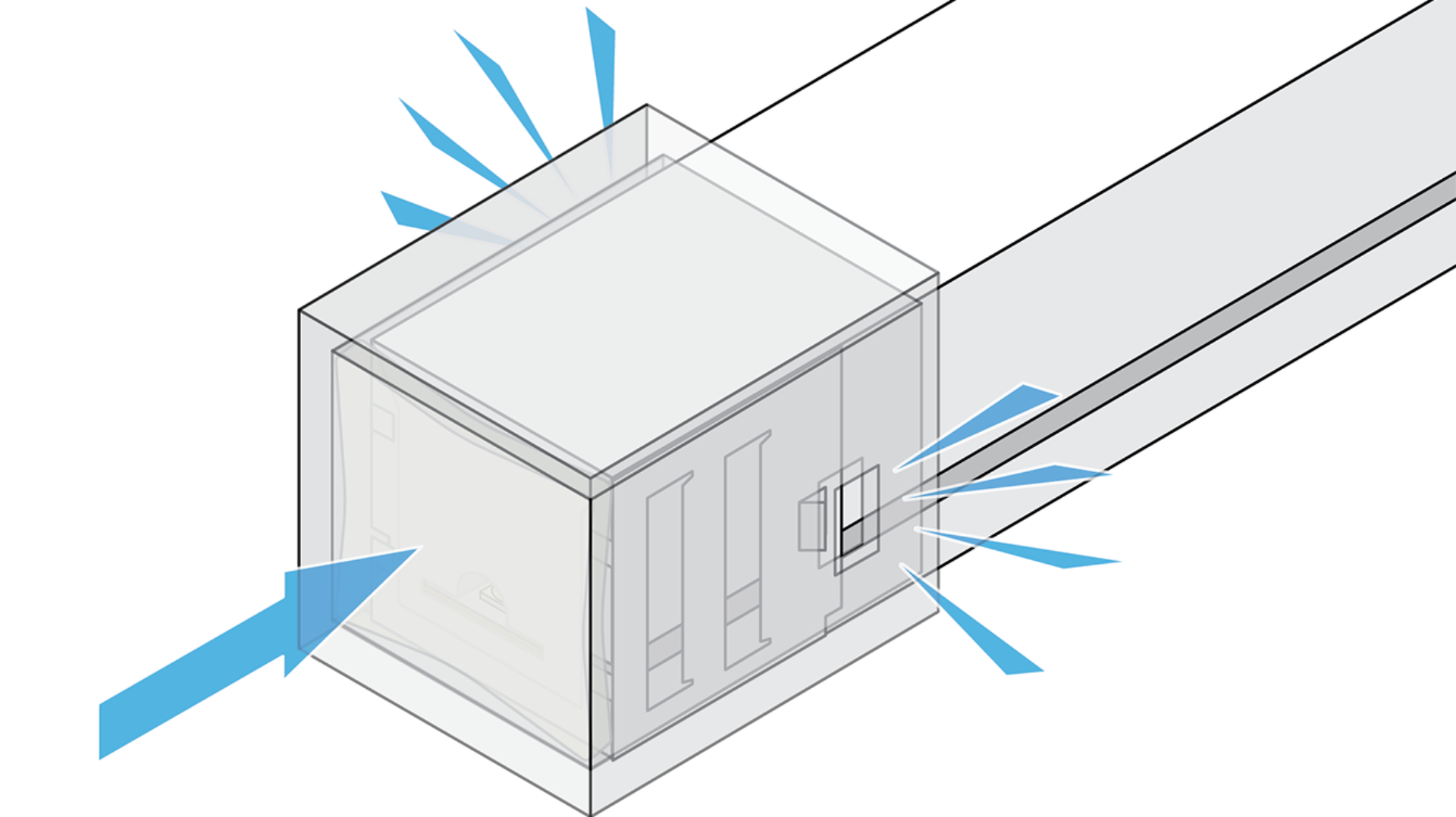

Dead End Cap
DI-LIN-3D-DEC

Factory Assembly
Wire Entry Options

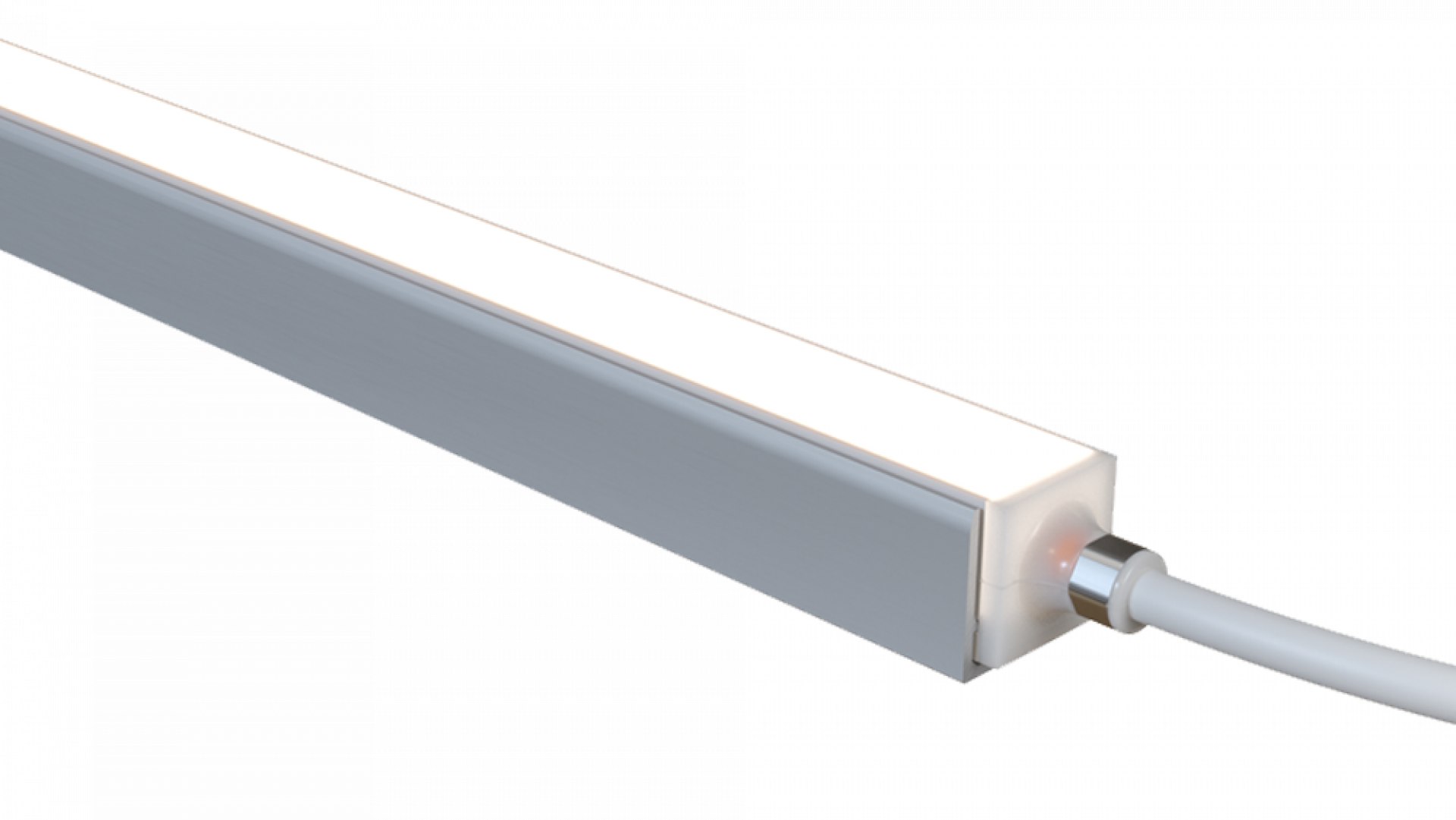

Straight Wire Entry

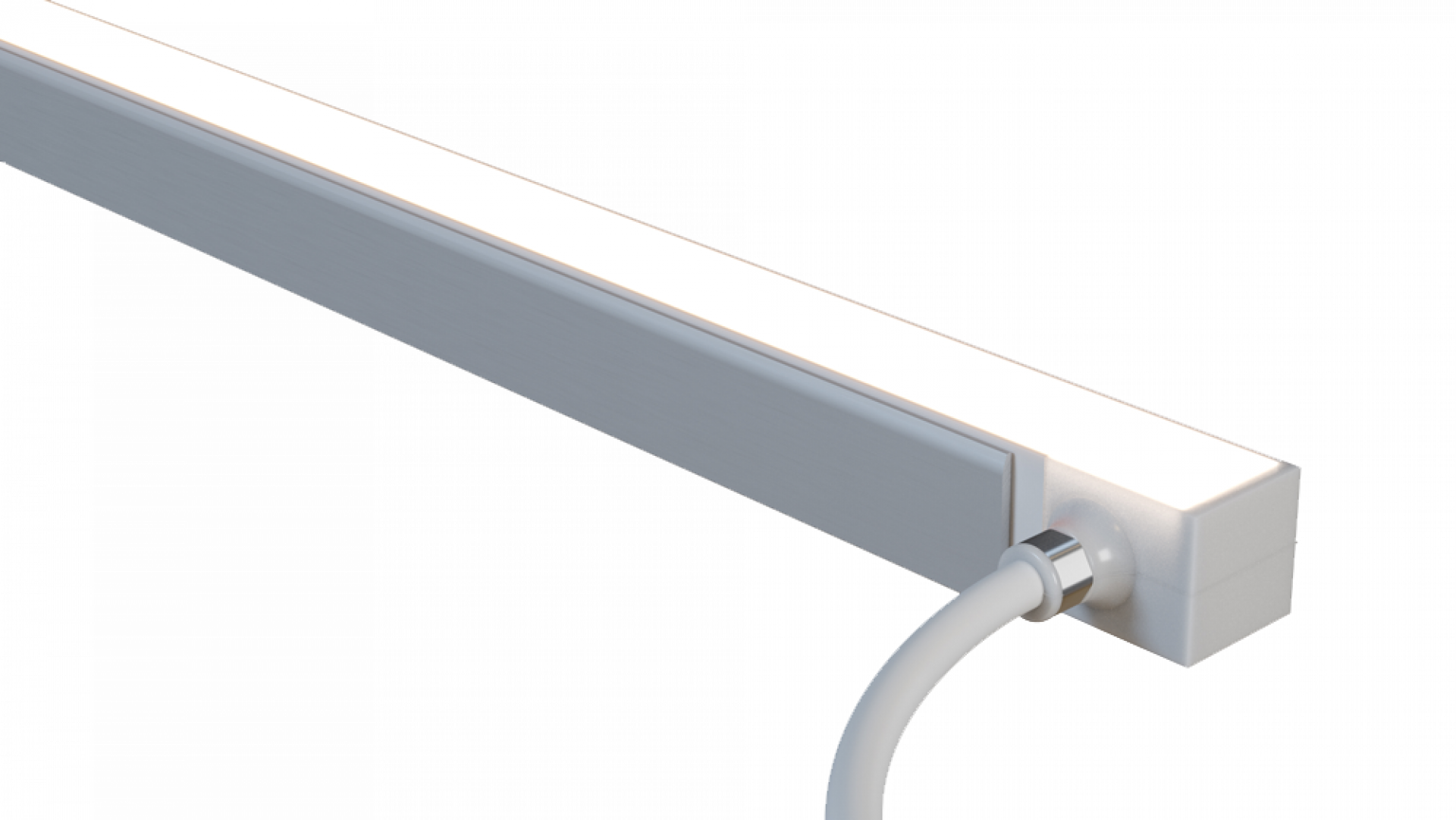

Side Wire Entry

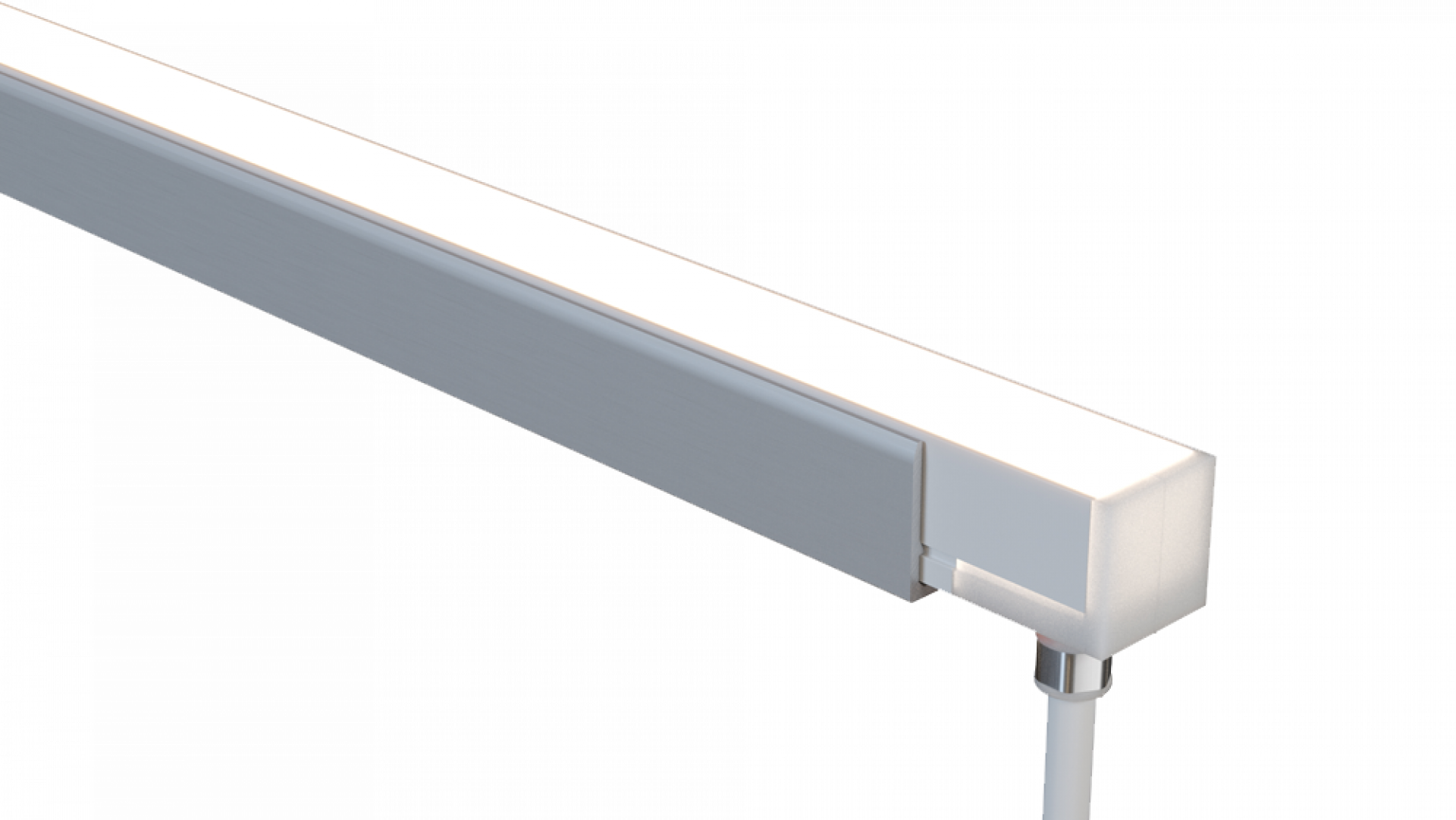

Bottom Wire Entry
