Millwork Lighting: Horizontal
This classic millwork detail is the default for lighting bookshelves, kitchen cabinets, glassware, and more. Combine accent-level tape light (150 lm/ft) with a dimmer.

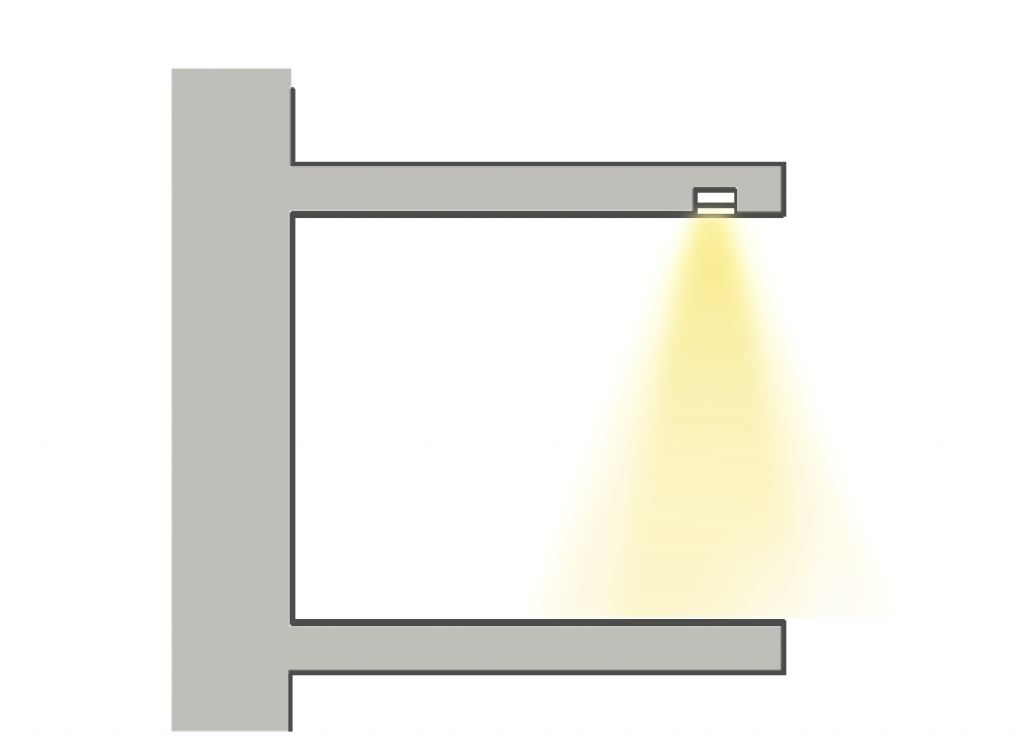

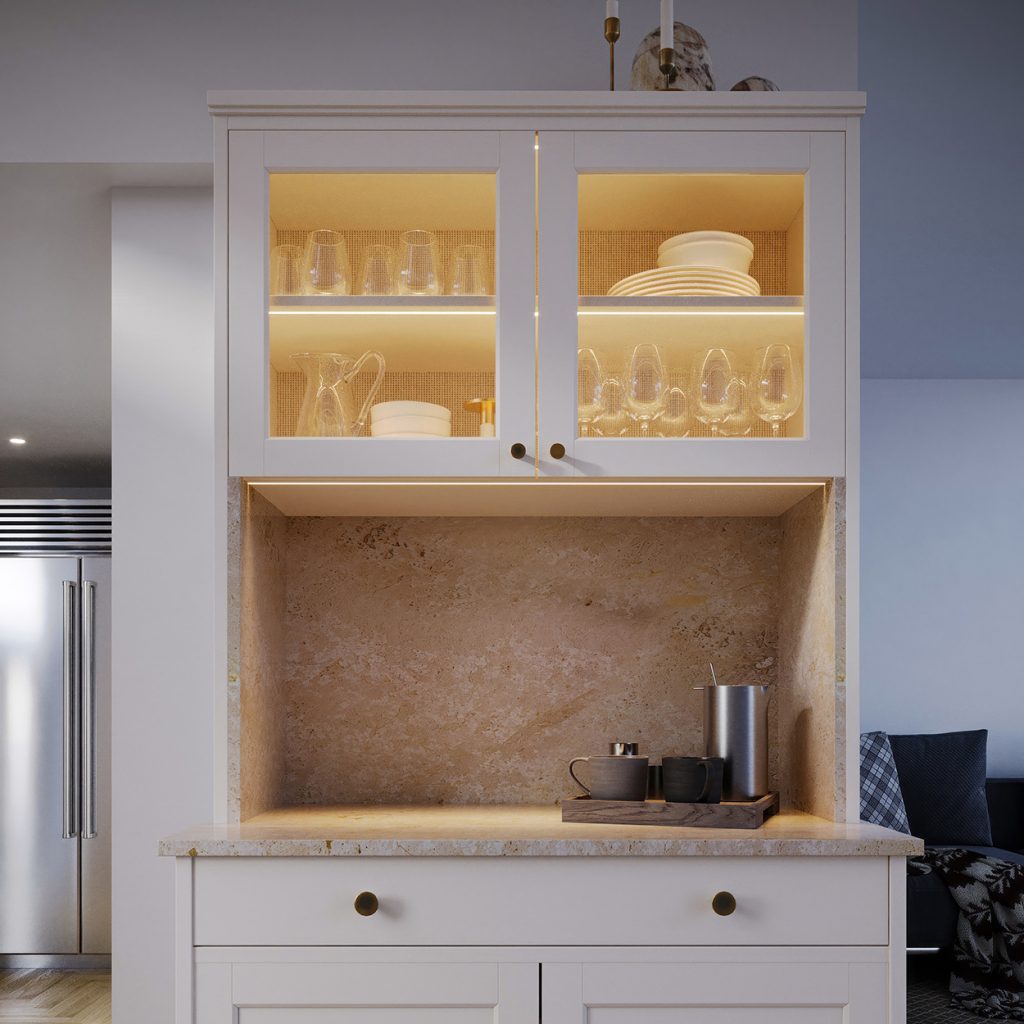

Front mounted
Mount the light at the front of the upper shelf, aiming down. Either recess the light into the shelf, and/or build a small valence to conceal the light further and prevent glare. Take care to leave grooves or slots for wire management for the wires leading into and/or out of the fixtures.
FARO™ A3 Fixture
95+ CRI, 150 Lumens/ft., 3000K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

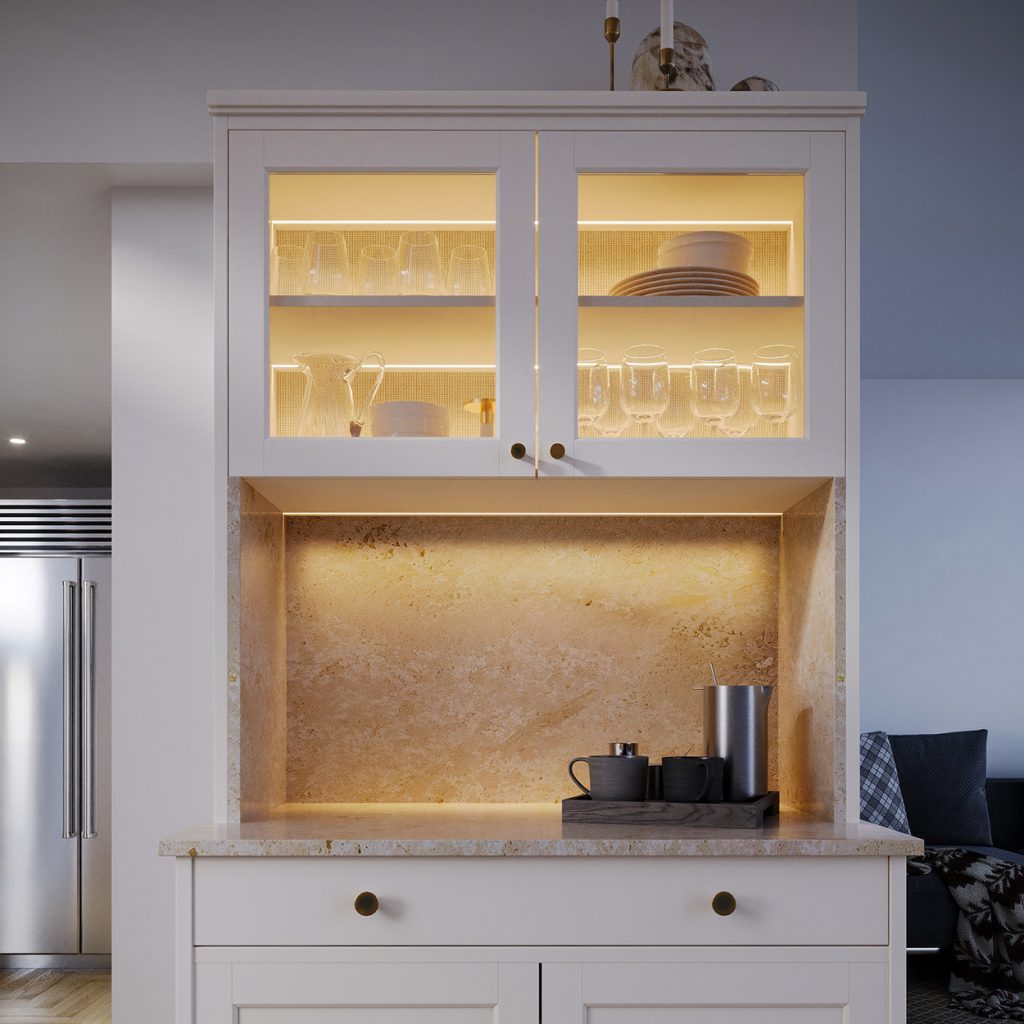

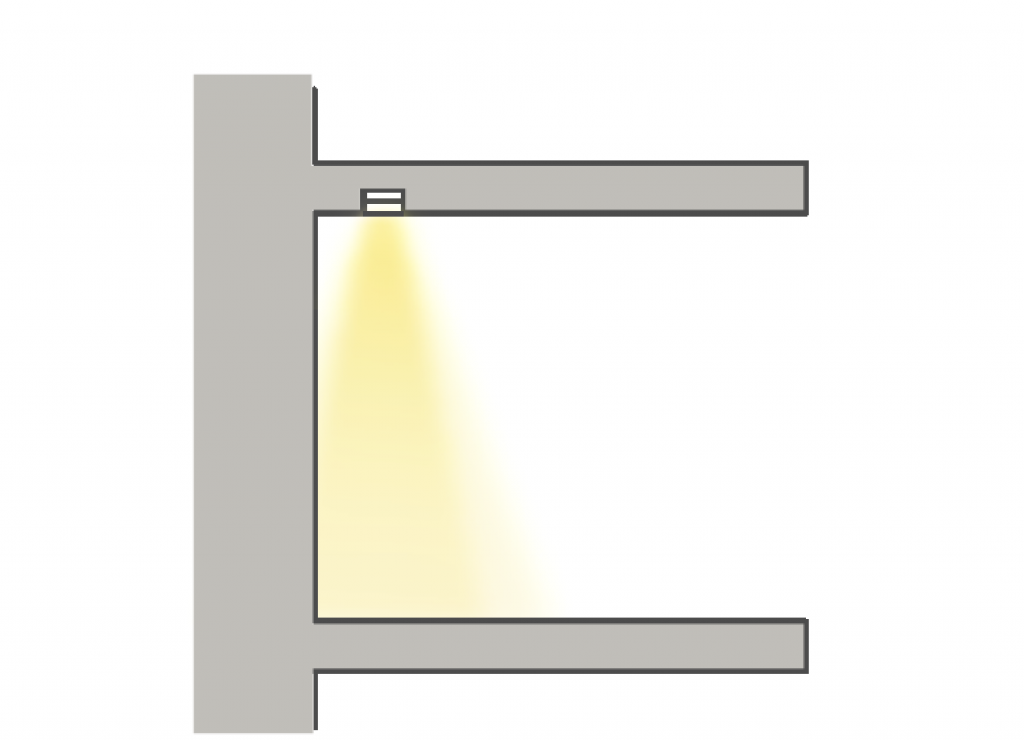

Rear mounted
Positioning the light at the wall emphasizes the backsplash. This is primarily a decorative effect, yet still delivers light to the work surfaces. The channel should be embedded into the upper shelf, or even recessed further to create a small pocket between the backsplash and the cabinet.
FARO™ A3 Fixture
95+ CRI, 150 Lumens/ft., 3000K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

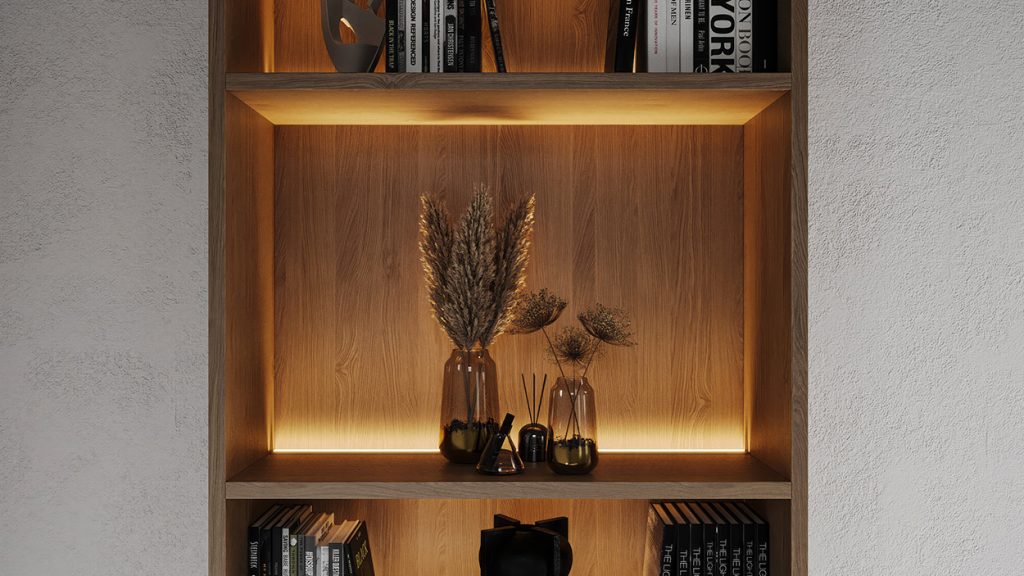

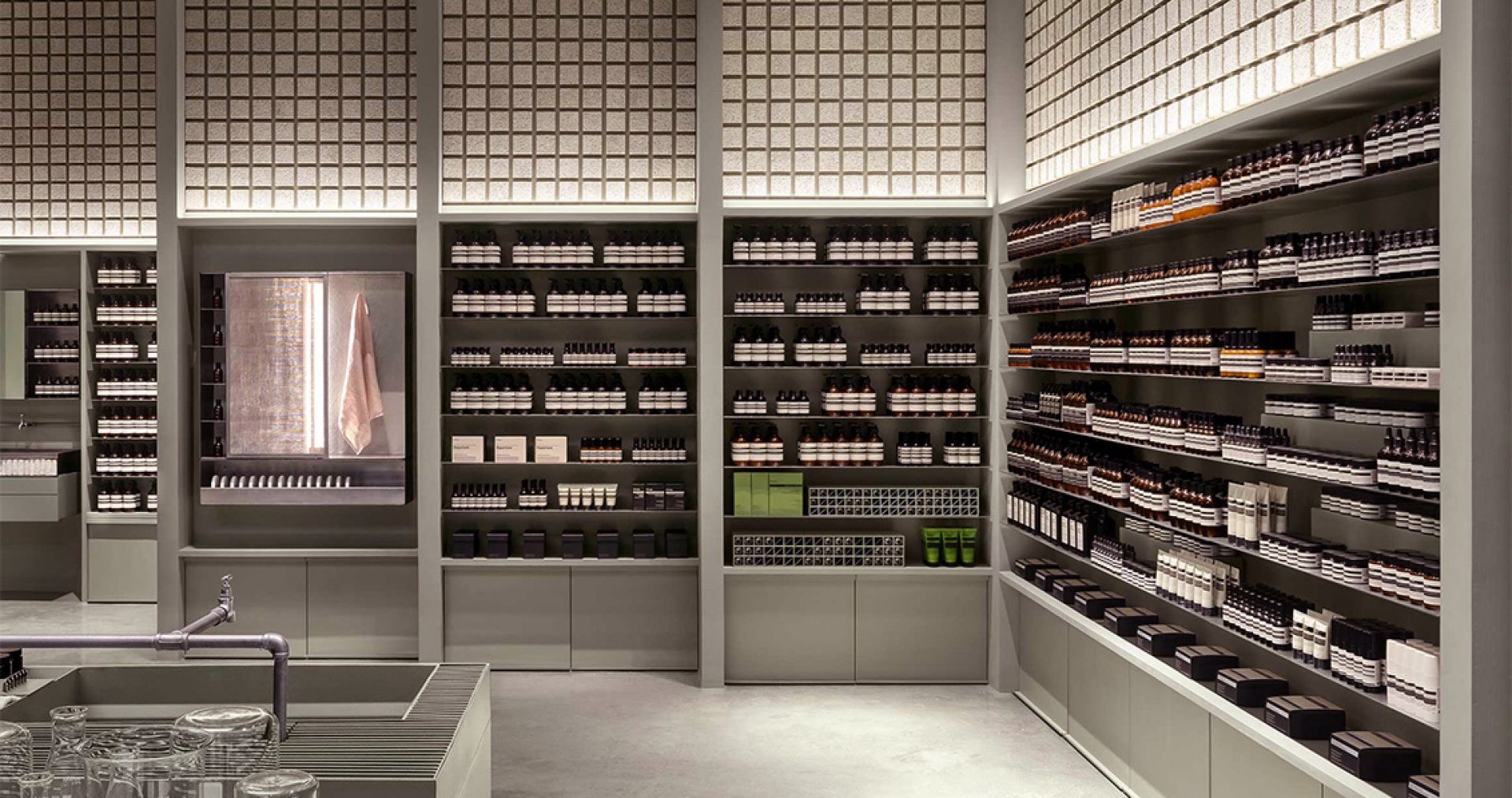

Millwork Lighting: Upward
Highlighting the contents of shelving from behind is an unusual detail that works particularly well with glass and other reflective items on display. Use an accent level light (150+ lm/ft) for a subtle effect.

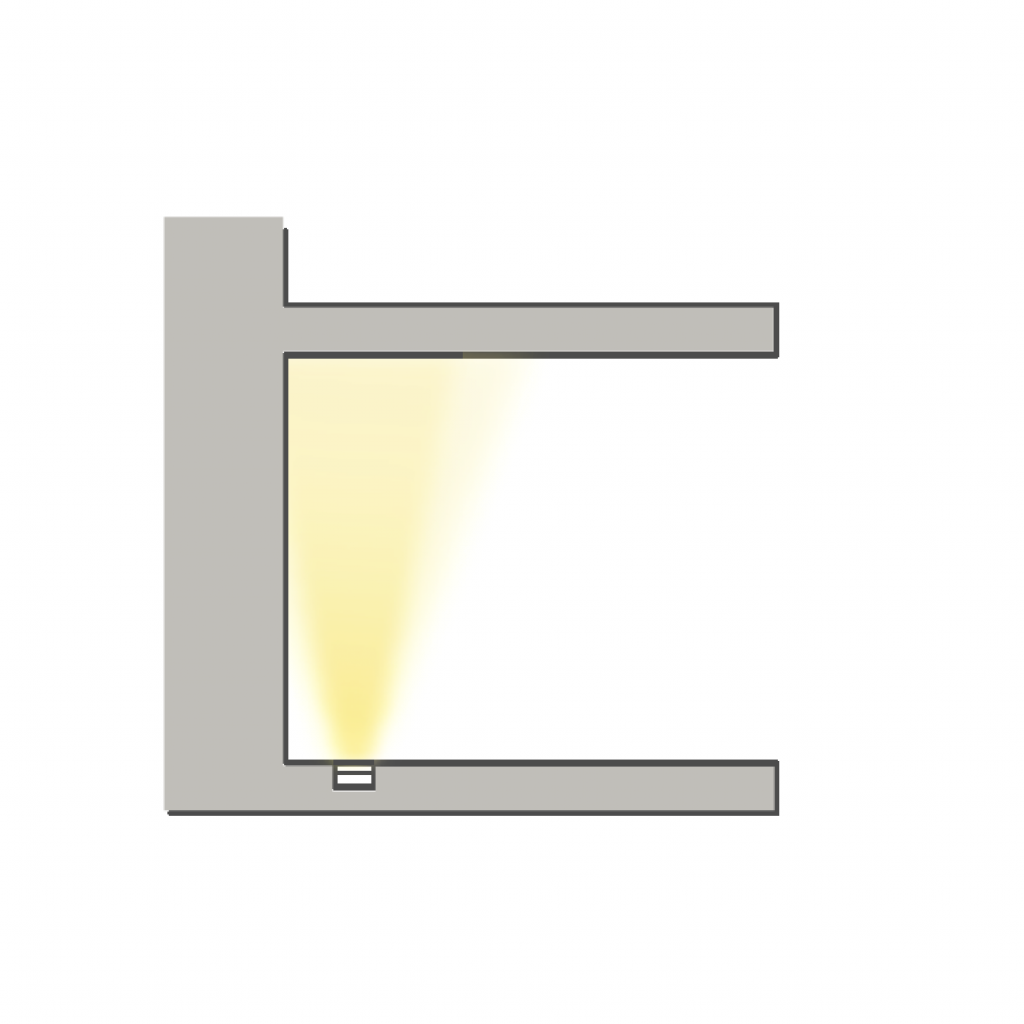

Rear mounted facing up
Recess the light into the rear of the shelf aiming up. This backlights objects, highlights the backsplash, and limits the amount of light projected directly at the viewer.
FARO™ A3 Fixture
95+ CRI, 150 Lumens/ft., 3000K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver
Display Lighting
There are countless ways to light shelving. Focus on maximum light quality with CELESTE, and choose high light output to make products pop and bring attention where you need it.

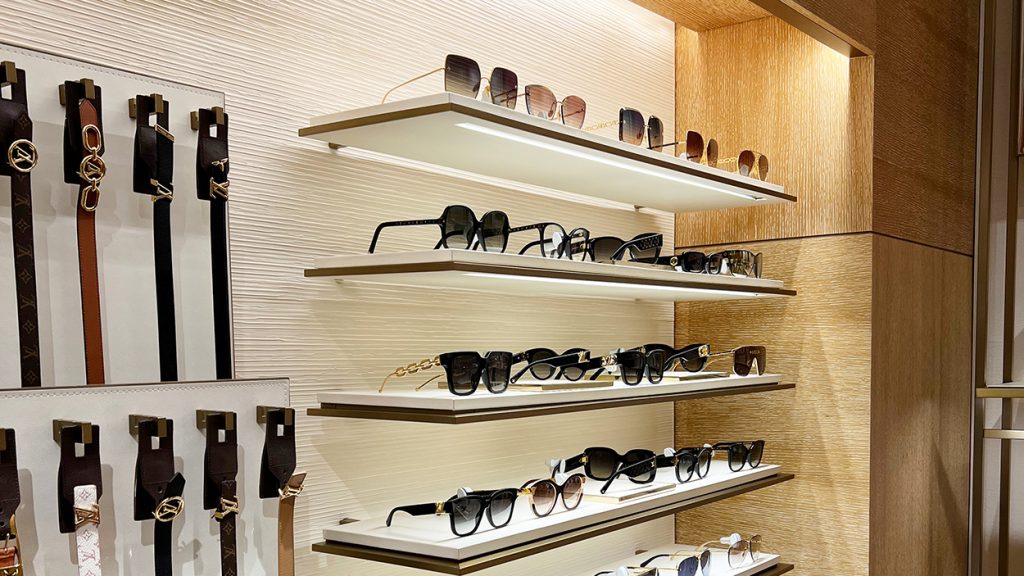

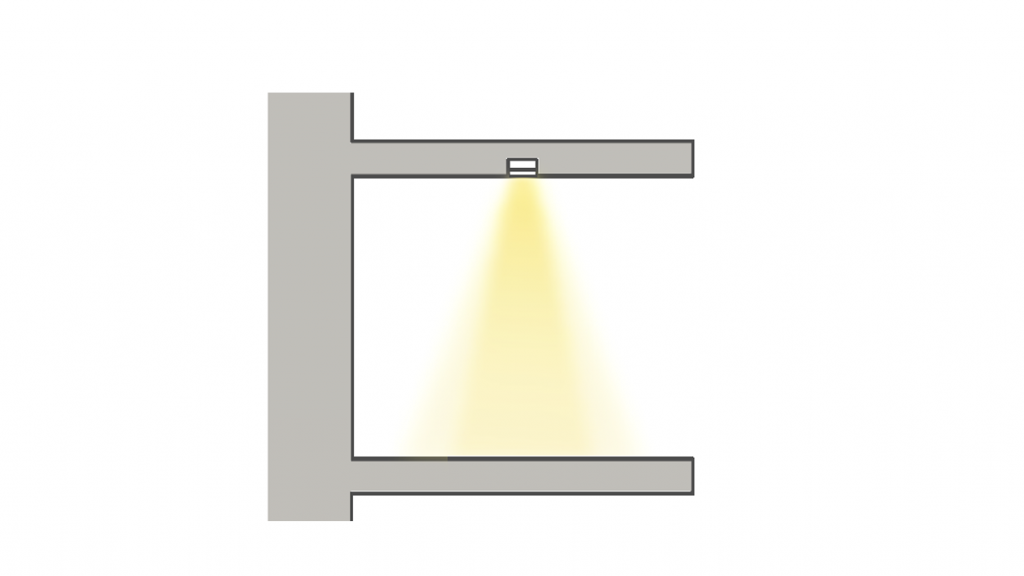

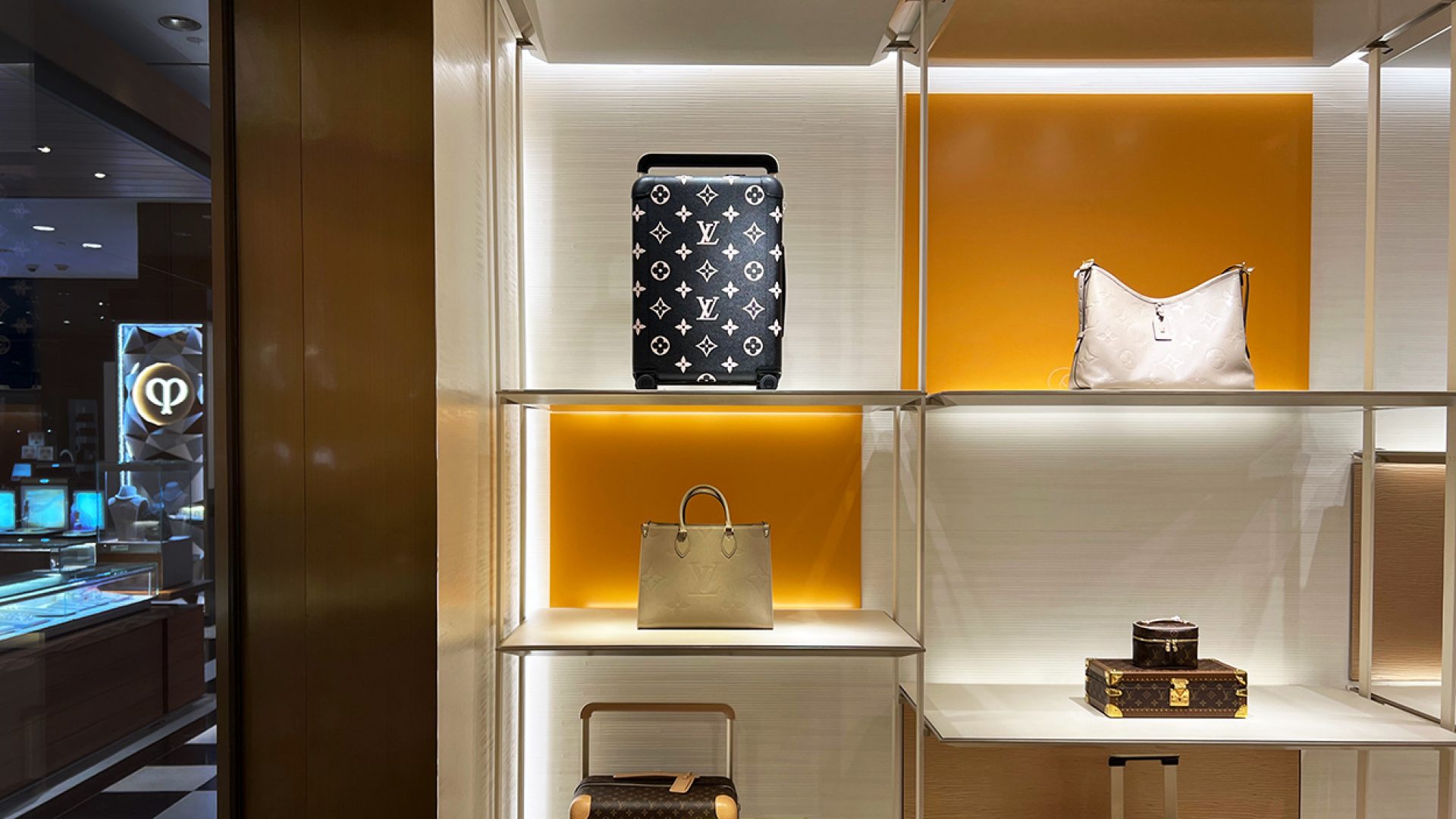

Display Shelving
Select high-quality light and high output (600+ lm/ft) to emphasize products on display. Contact us for detailed assistance with applications.
FARO™ A2 Fixture
95+ CRI, 300 Lumens/ft., 3000K, Architectural Frosted Lens
