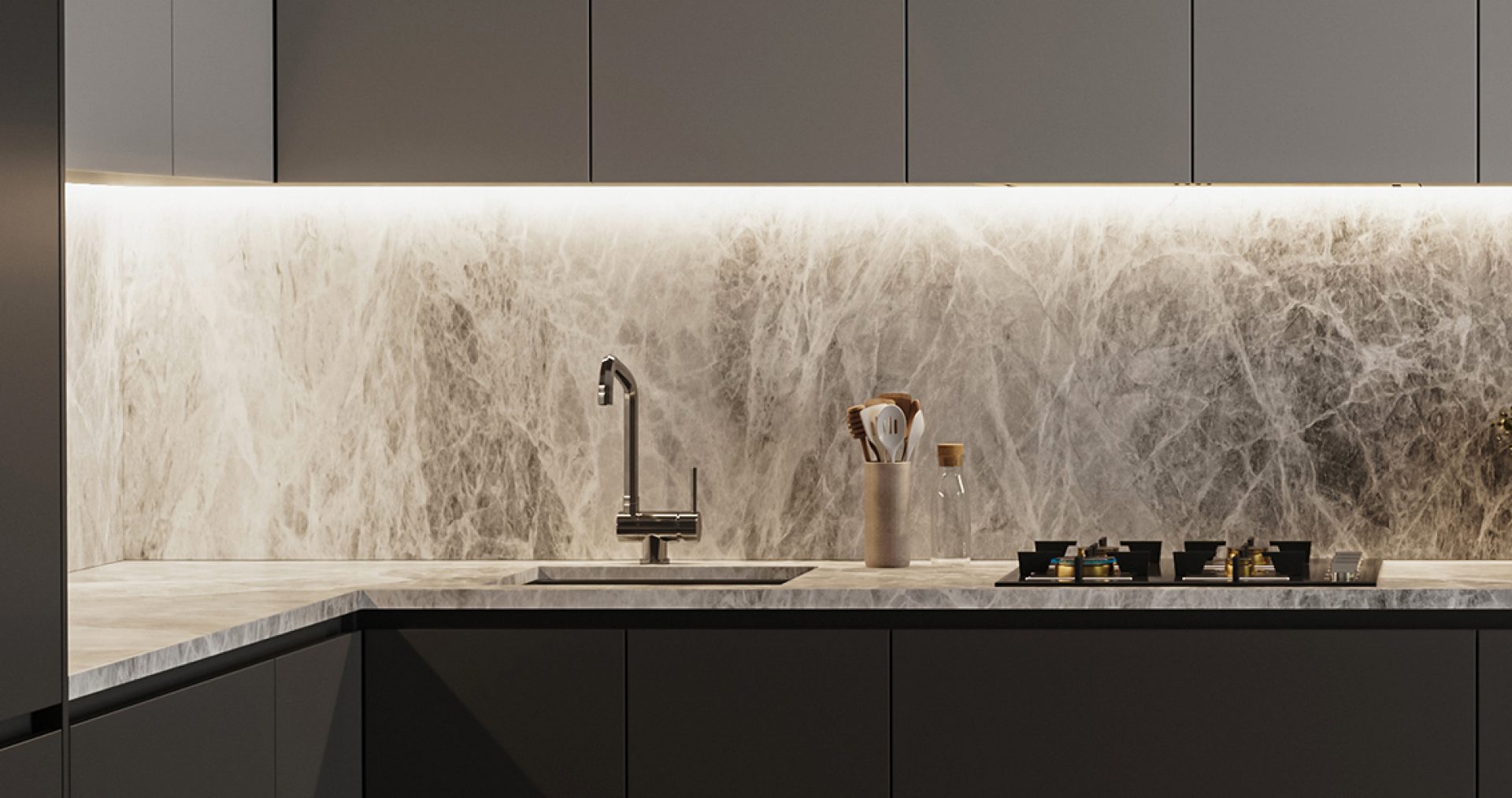

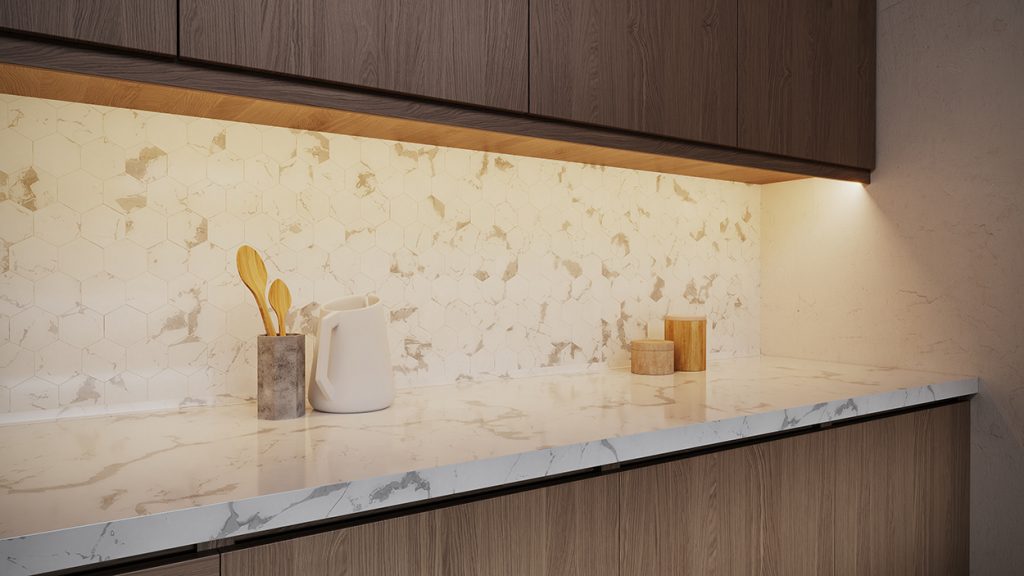

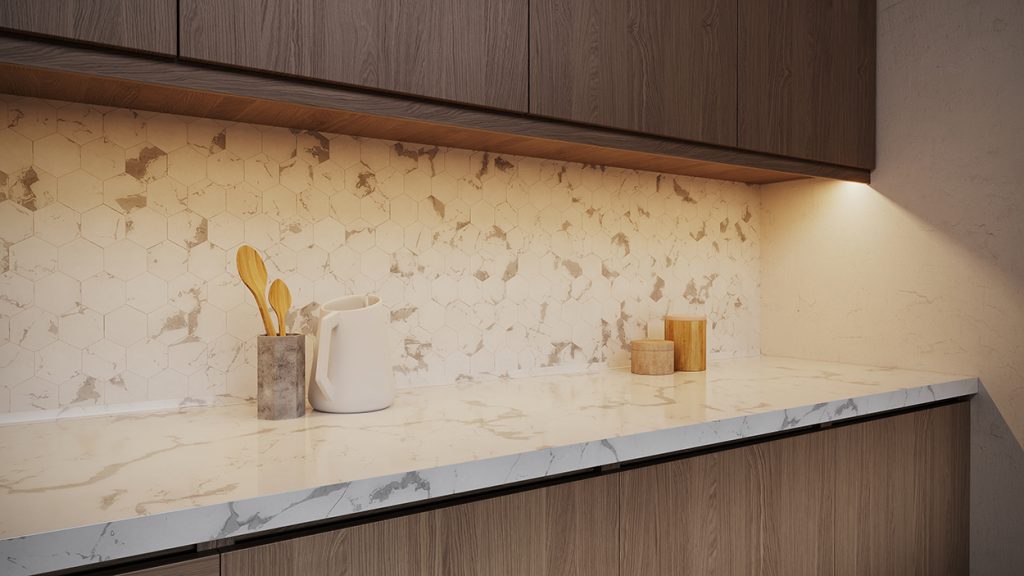

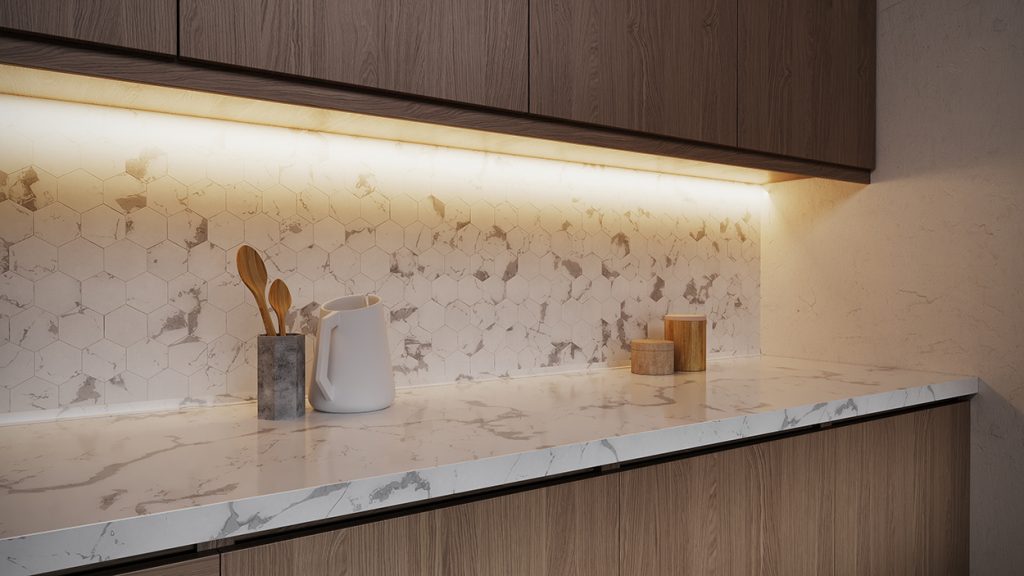

Under Cabinet Lighting
This essential kitchen detail not only provides critical task light on work surfaces, but also enhances ambient lighting without straining the eyes.

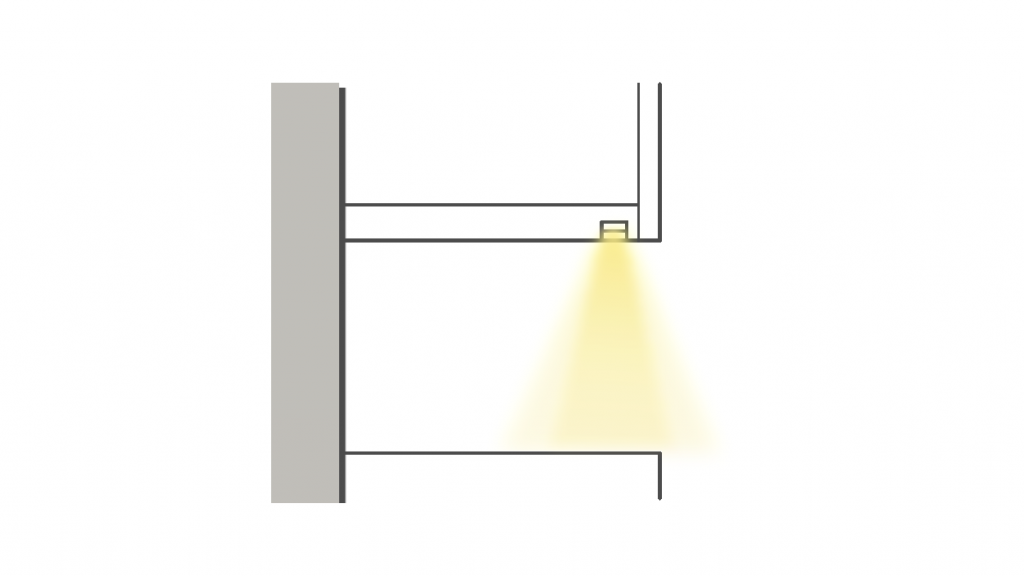

Front mounted
Positioning the light under the center of the cabinet delivers light to the work surface and to the backsplash. This balanced option is ideal for deeper countertops. The channel can be embedded into the cabinet millwork or surface mounted behind a small valance.
FARO™ Slim Fixture
95+ CRI, 300 Lumens/ft., 3500K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

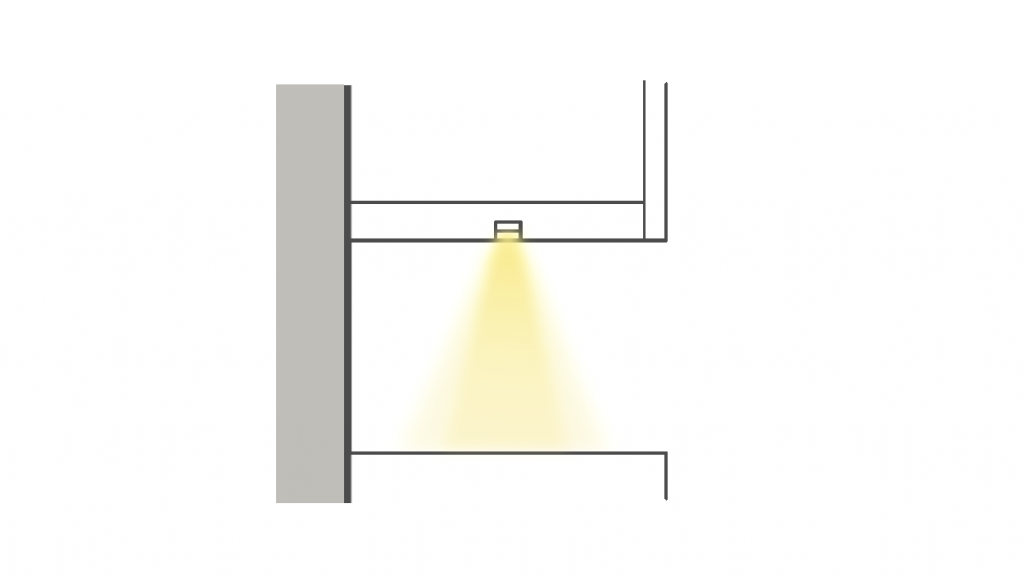

Center mounted
Positioning the light towards the center of the cabinet delivers light to the work surface and to the backsplash. It’s a balanced option that is ideal for average depth countertops. The channel can be embedded into cabinet millwork or surface mounted.
FARO™ Slim Fixture
95+ CRI, 300 Lumens/ft., 3500K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

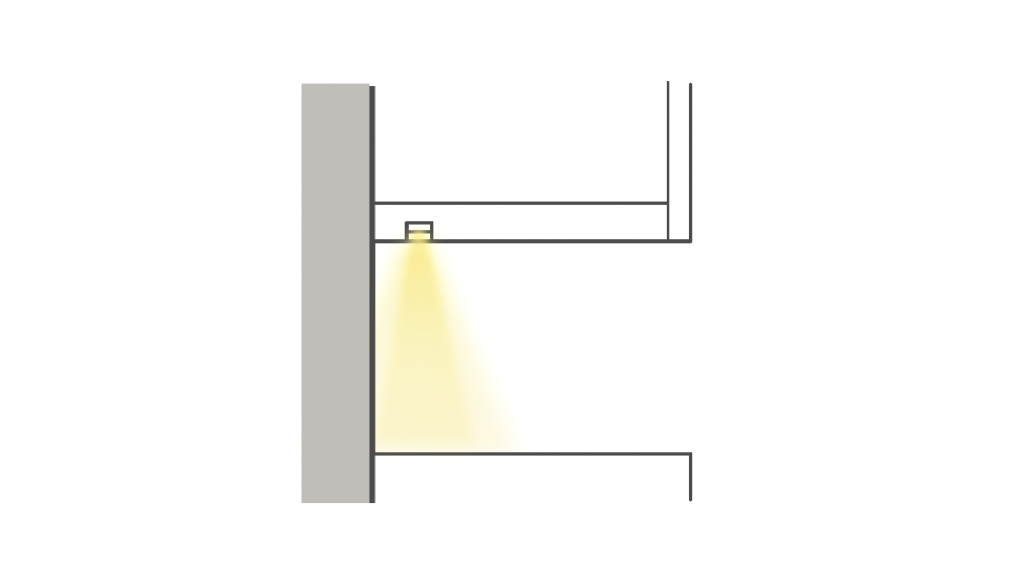

Rear mounted
Positioning the light at the wall emphasizes the backsplash. This is primarily a decorative effect, yet still delivers light to the work surfaces. The channel should be embedded into the cabinet itself, or even recessed further to create a small pocket between the backsplash and the cabinet.
FARO™ Slim Fixture
95+ CRI, 300 Lumens/ft., 3500K, Architectural Frosted Lens
OMNIDRIVE® X ELV Dimmable Driver

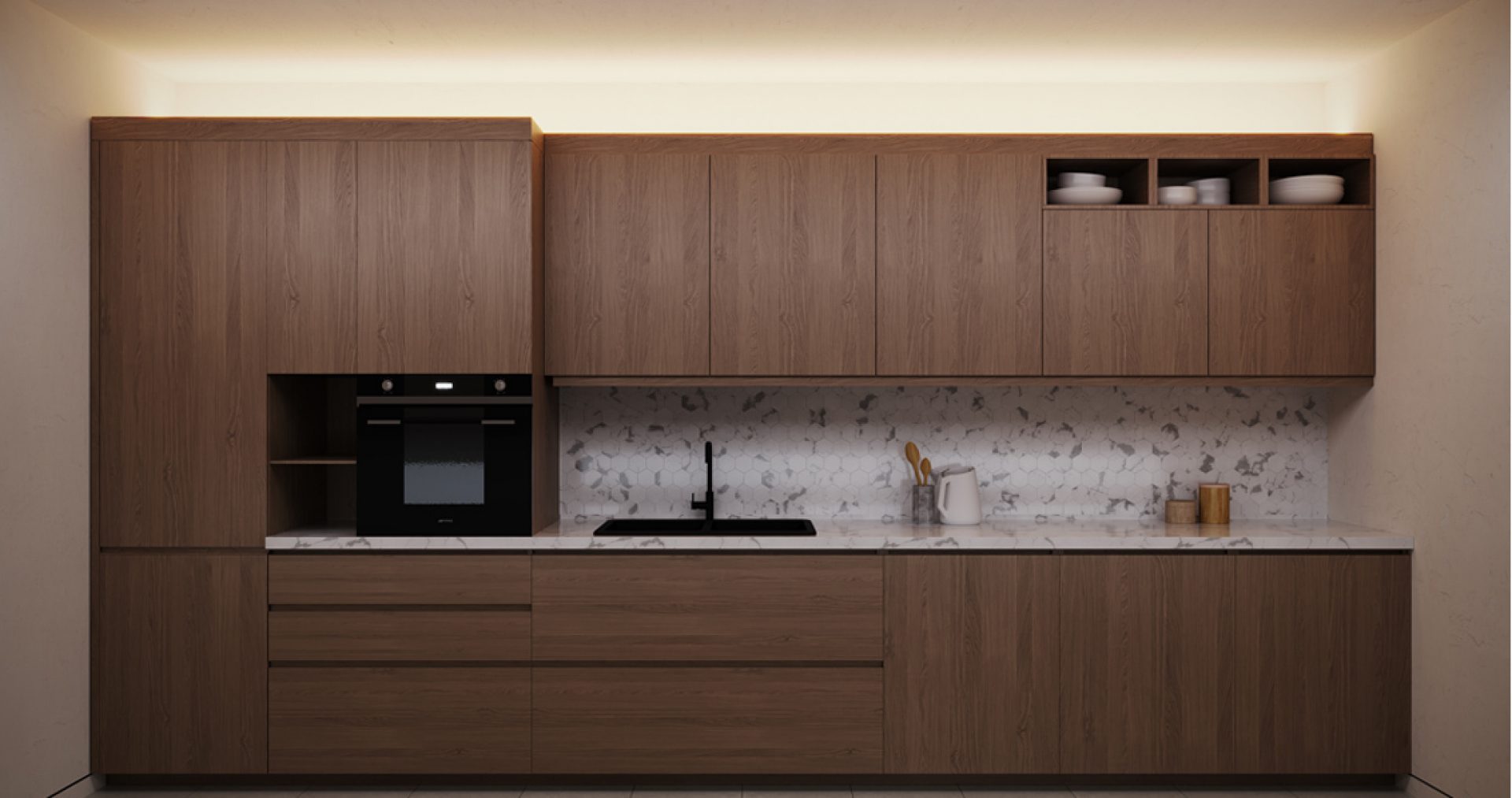

Over Cabinet Lighting
Boost ambient lighting without glare with this elegant indirect lighting detail that delivers illumination throughout the space.

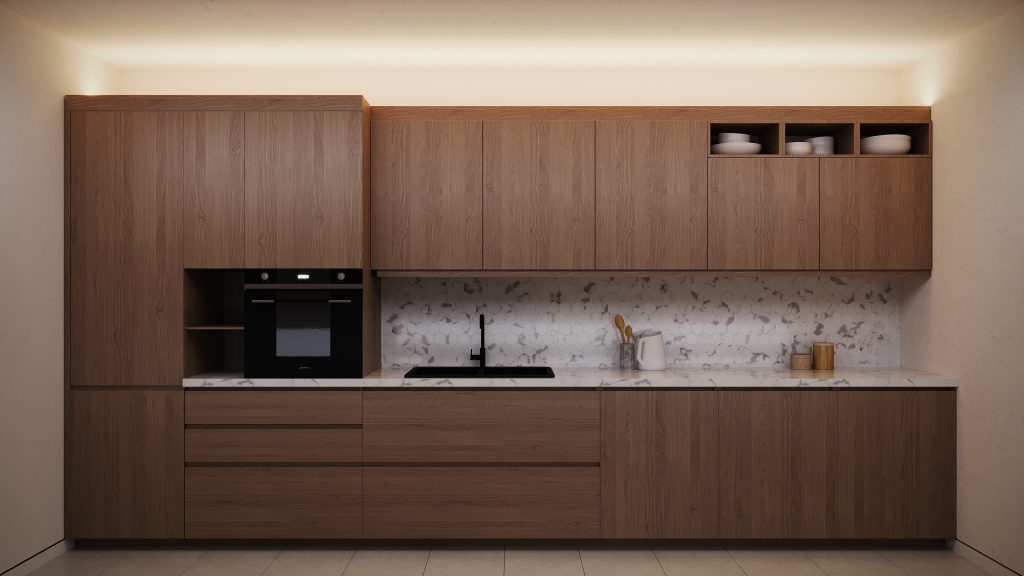

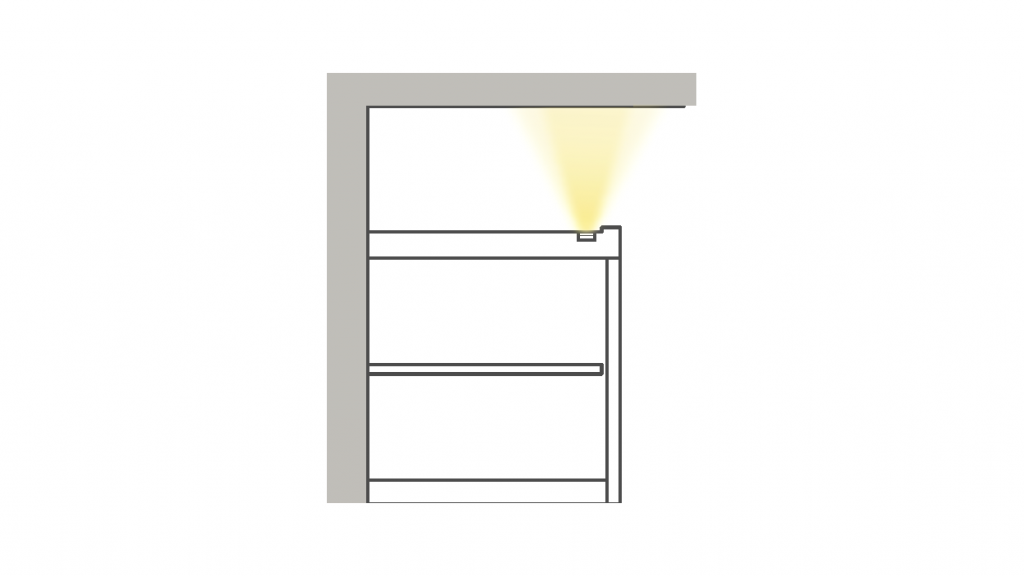

Front mounted
Project light into a room with taller ceilings and increase ambient light.
FARO™ A2 Fixture
95+ CRI, 500 Lumens/ft., 3500K, Architectural Clear Lens
OMNIDRIVE® X ELV Dimmable Driver

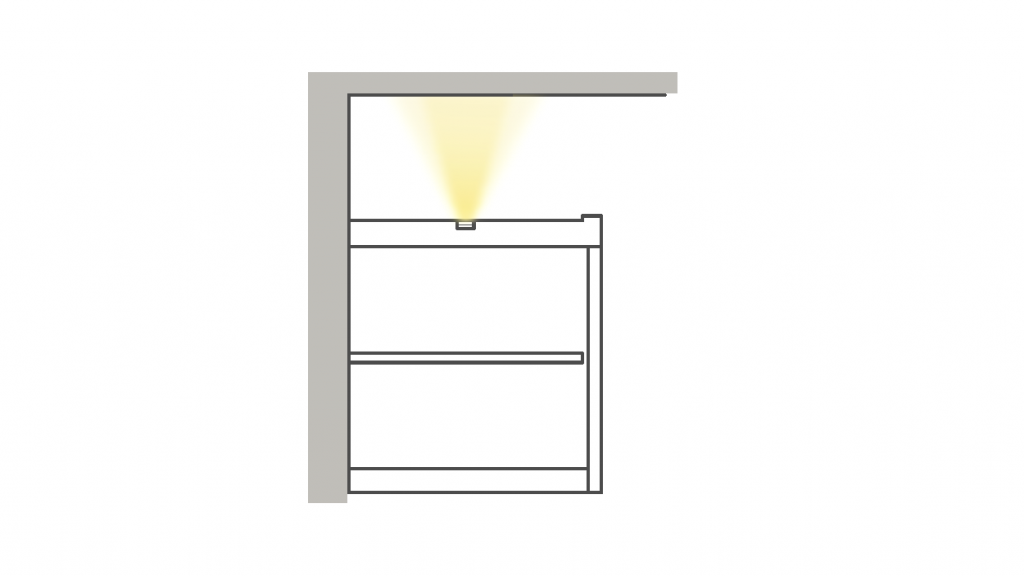

Center mounted
Balance useful ambient light in the room with a decorative effect on the wall behind the cabinets.
FARO™ A2 Fixture
95+ CRI, 500 Lumens/ft., 3500K, Architectural Clear Lens
OMNIDRIVE® X ELV Dimmable Driver

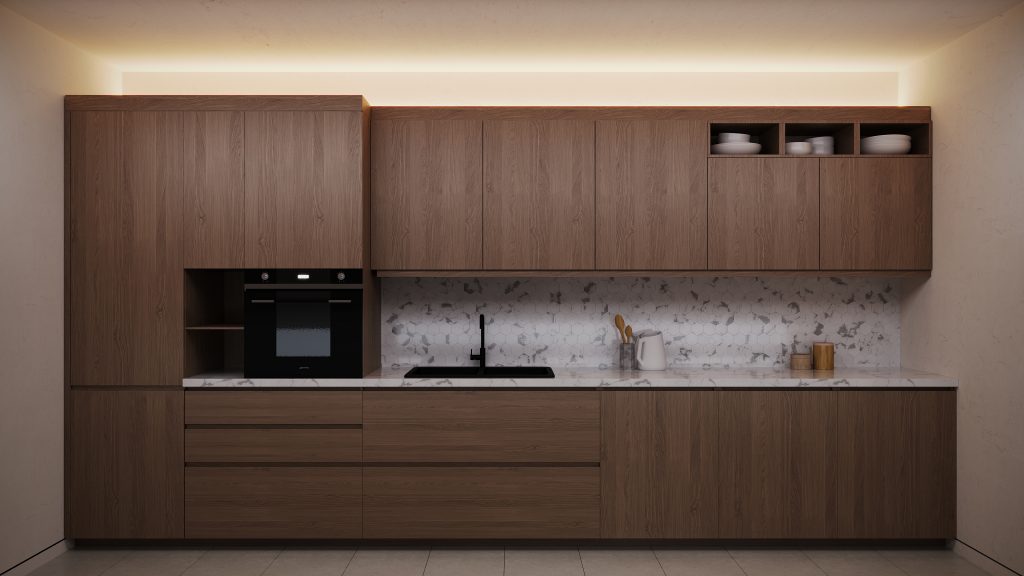

Rear mounted
Maximize indirect ambient lighting by directing illumination into the room.
FARO™ A2 Fixture
95+ CRI, 500 Lumens/ft., 3500K, Architectural Clear Lens
OMNIDRIVE® X ELV Dimmable Driver

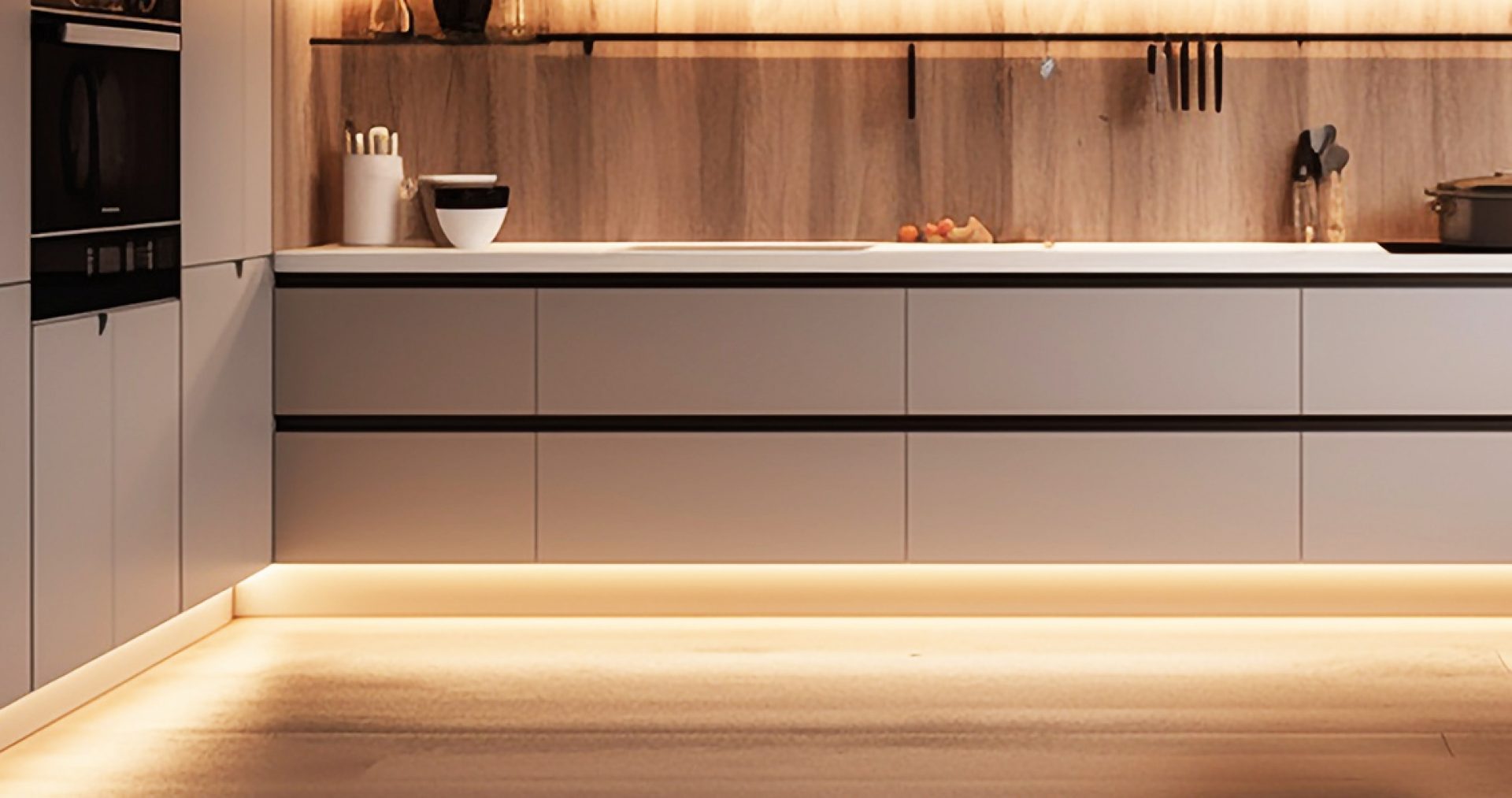

Toe Kick Lighting
Bring dimension to lower cabinets by subtly highlighting their bottom edges with this hospitality-inspired look.
Front mounted
Emphasize the toe-kick itself, minimizing illumination beyond the cabinet valence.
FARO™ A3 Fixture
90+ CRI, 150 Lumens/ft., 3000K, Architectural Clear Lens
OMNIDRIVE® X ELV Dimmable Driver

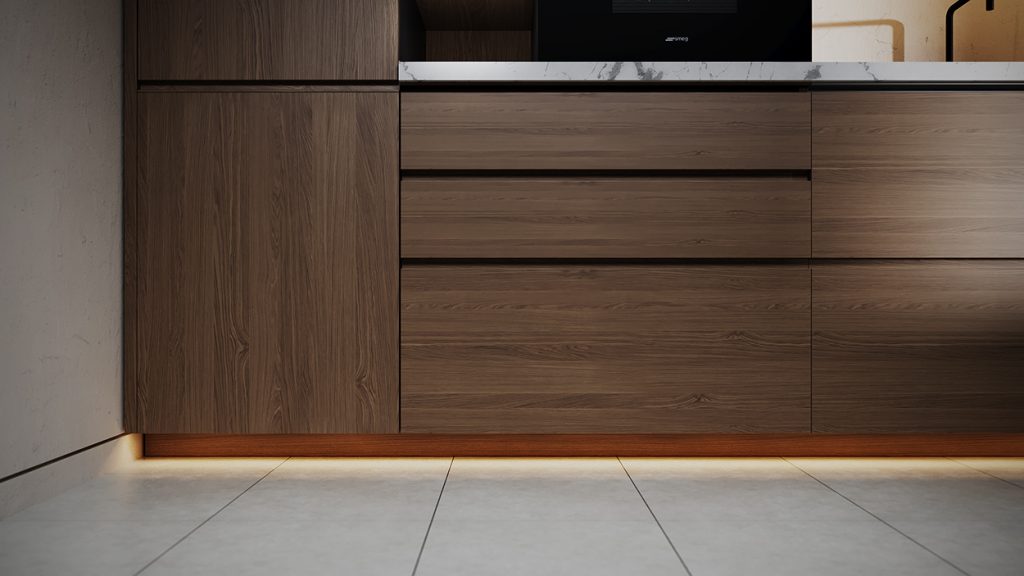

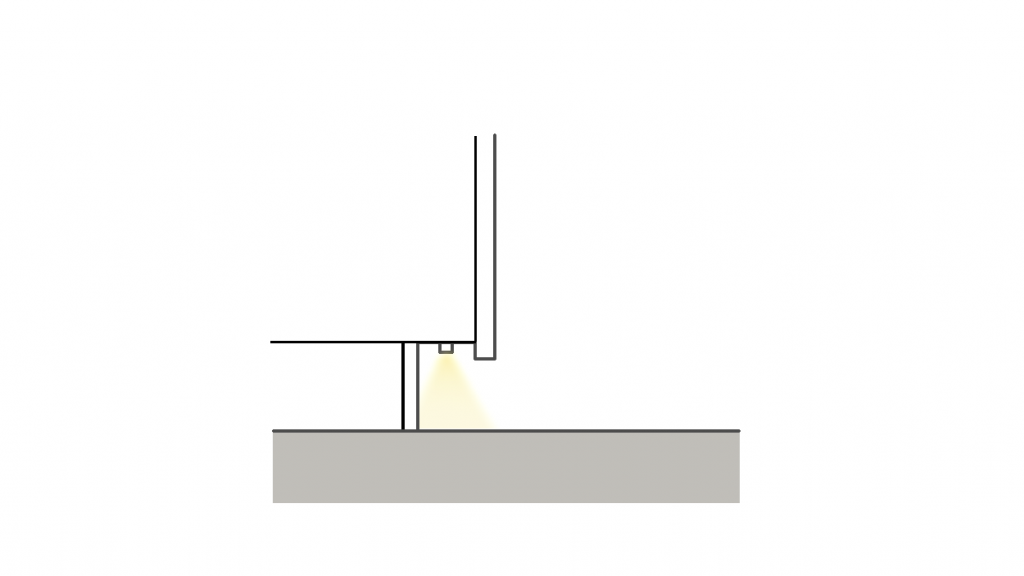

Center mounted
Focus the light more on the floor and less on the toe kick itself. If the floor is polished or highly reflective, select the Architectural Satin Lens option for maximum diffusion.
FARO™ A3 Fixture
90+ CRI, 150 Lumens/ft., 3000K, Architectural Satin Lens
OMNIDRIVE® X ELV Dimmable Driver

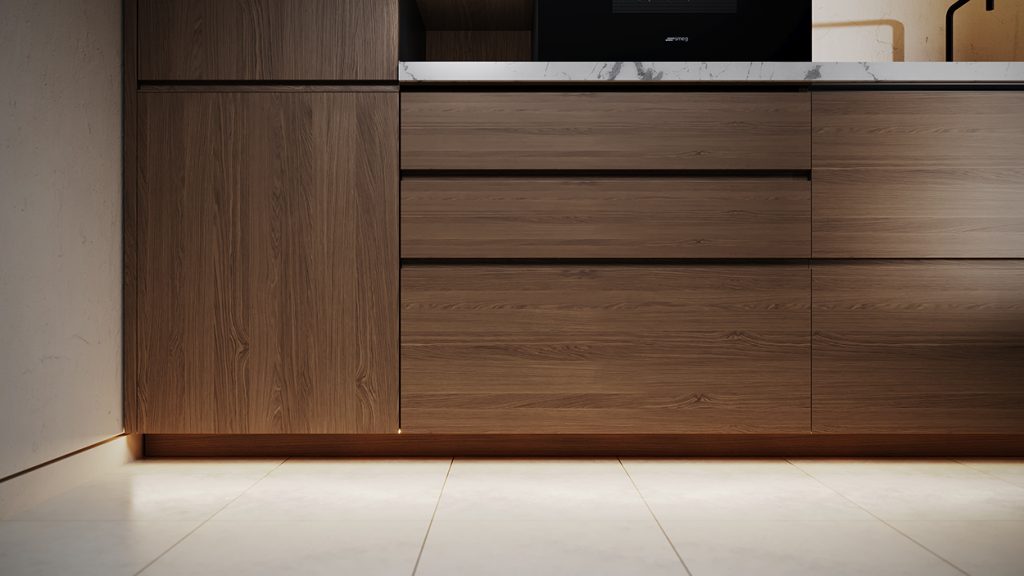

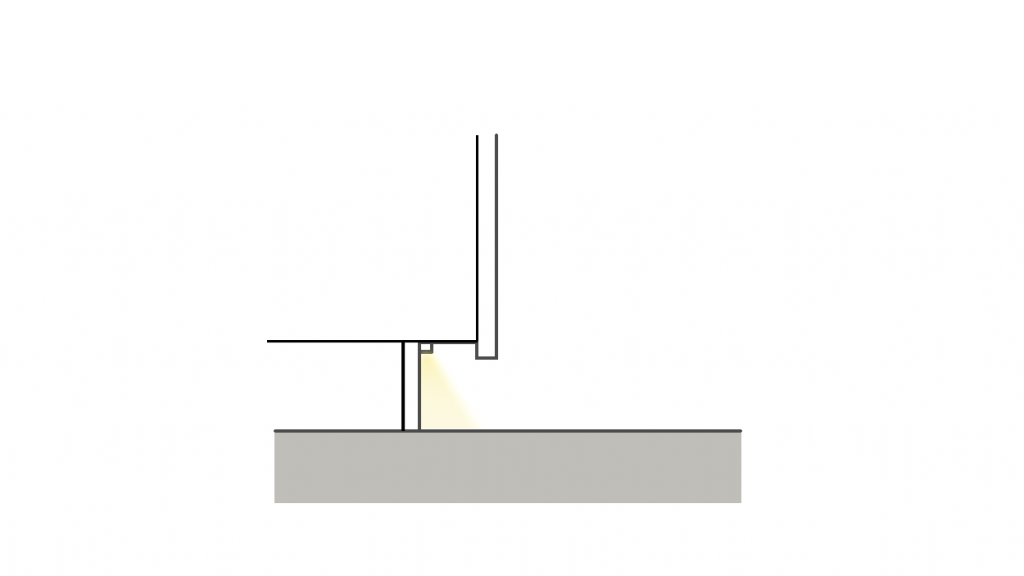

Rear mounted
Emphasize light projection from the toe-kick onto the floor beyond the cabinet.
FARO™ A3 Fixture
90+ CRI, 150 Lumens/ft., 3000K, Architectural Clear Lens
